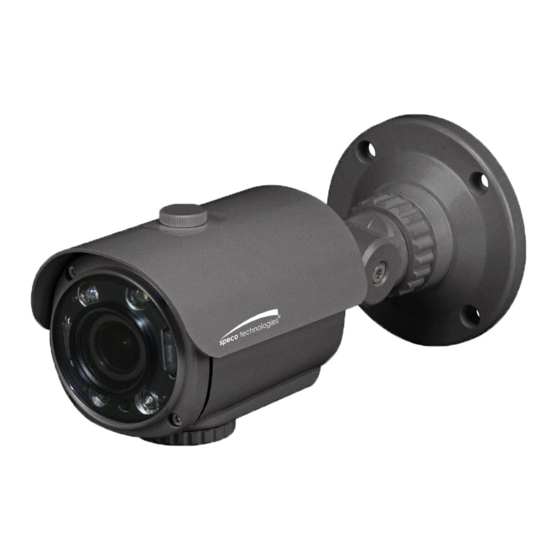

Summary of Contents for Speco O4FB8M

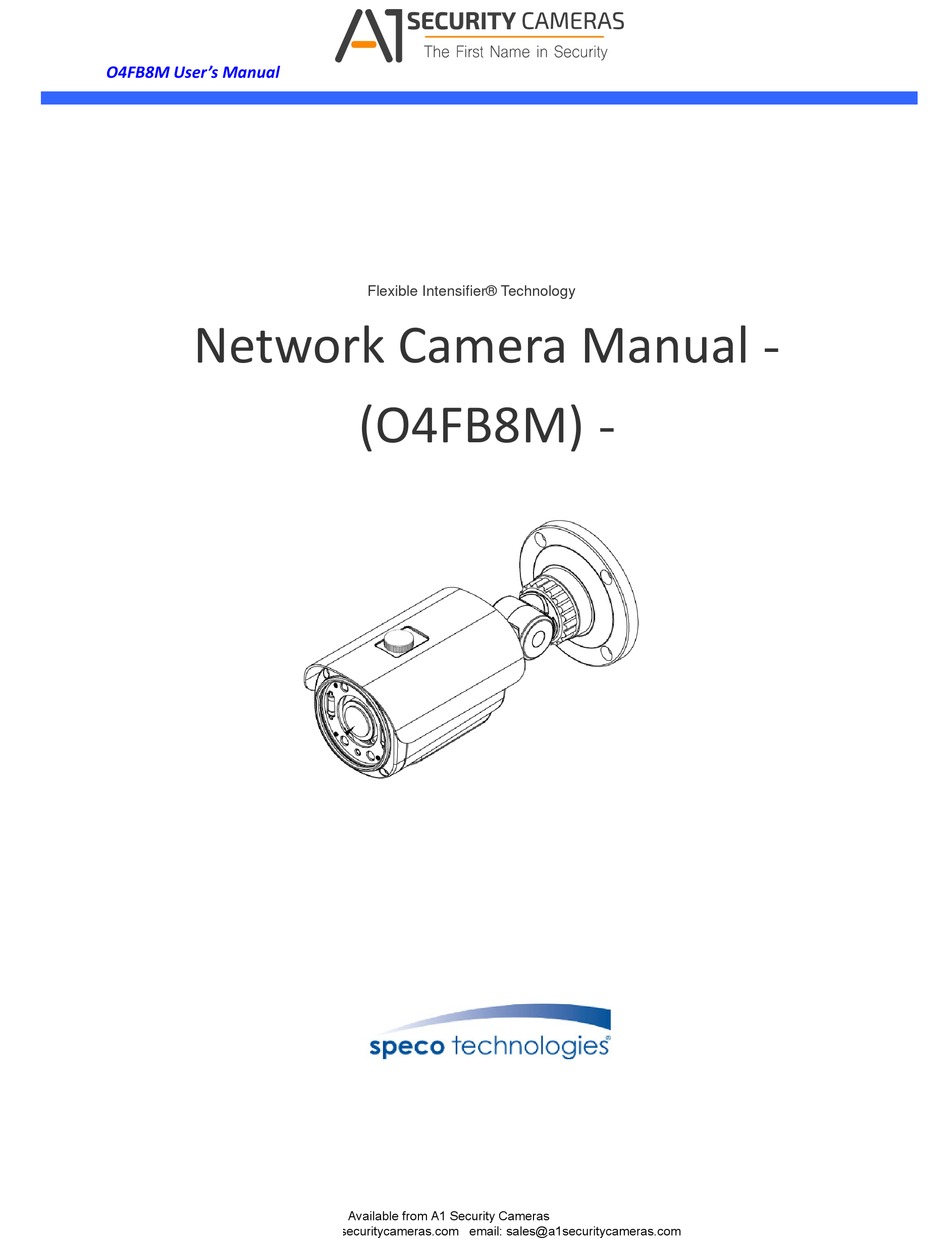

- Page 1 O4FB8M User’s Manual � Flexible Intensifier® Technology Network Camera Manual (O4FB8M) Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
- Page 2 O4FB8M User’s Manual � D D D D i i i i r r r r e e e e c c c c t t t t i i i i o o o o n n n n s s s s Be careful not to cause any physical damage by dropping or throwing the camera.
- Page 3 O4FB8M User’s Manual � Caution Any changes or modifications in construction of this device which are not explicitly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Revision History Date Revision Details January 6, 2017 First manual revision creation.
-
Page 4: Table Of Contents
Contents Contents........................4 1. Introduction......................5 1.1. Overview ..........................5 1.2. Specifications......................... 6 1.3. Applications of O4FB8M ......................7 2. Product Description ....................8 2.1. Contents ..........................8 2.2. Product Preview ........................8 2.3. Physical description ....................... 9 2.4. Functional Description......................11 ... -
Page 5: Introduction
1. Introduction 1.1. Overview The O4FB8M is a 4 megapixel, triple-codec (H.265, H.264, MJPEG) IP camera built with embedded software and hardware technology. It enables real time transmission of synchronized video of up to 2592x1520 and audio data. Remote clients can connect to the device for real time video/audio data through various client solutions running on PCs and smartphones. -
Page 6: Specifications
O4FB8M User’s Manual � 1.2. Specifications LENS Lens Type 2.8mm~12mm Motorized Lens Lens Iris Control DC Auto Iris CAMERA Image Sensor 1/3" 4Mega CMOS Sensor Minimum Illumination COLOR : 0.0785, BW : 0.0608(SLOW Shutter Off) COLOR : 0.0021, BW : 0.0013(SLOW Shutter On) -
Page 7: Applications Of O4Fb8M
Max. 9.0W Approval FCC, CE, IP66 Specifications are subject to change without notice. 1.3. Applications of O4FB8M Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, education, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). -
Page 8: Product Description
O4FB8M User’s Manual � 2. Product Description 2.1. Contents The product package contains the foll lowing : Contents Description Image Remarks Main Body O4FB8M Screw TS T1, 4EA, Screw M5X10, 4EA Tools and Mounting Screws Wrench 1EA , Core 1EA Softw ware & User’s Guide... -
Page 9: Physical Description
O4FB8M User’s Manual � 2.3. Physical description 2.3.1. External View Figure 2-1. External view of O4FB8M 2.3.2. Dimensions Figure 2-2. Dimensions Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com... - Page 10 O4FB8M User’s Manual � 2.3.3. Connector information ① ② ③ ④ ⑤ ⑥ 1. Network Port 2. BNC Video Out 3. Power In 4. Ground 5. Audio In/Out 6. Alarm In/Out Figure 2-3. Connector information Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 11: Functional Description
O4FB8M User’s Manual � 2.4. Functional Description Power Power input for supplying 12V 1 A D D C power. Caution: If the camera is p p owered by PoE, do not plug in DC Jack with active e DC power into the DC power jack. -
Page 12: Accessories For Installation
A switch provided for returning the IP camera to factory default state. Unscrew the cover to access the switch. Press the switch for 5 seconds while power is applied. Factory default switch Figure 2-5. Factory Default Switch 2.5. Accessories for installation Figure 2-6. Accessories for installation of O4FB8M Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com... -
Page 13: On Site Installation
O4FB8M User’s Manual � 3. On Site Installation Use cables and conduits that are suitable for the installation. Close attention should be paid to the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the lifetime of the product. Products that have internal parts exposed to moisture due to improper installation are not covered by warranty. -
Page 14: Getting Started
Brief information for the initial operation of the camera is provided in this chapter. 4.1. PC System Requirements Audio/Video streaming data received from O4FB8M can be displayed or stored in a PC running client programs. Minimum requirements of the PC are described below:... -
Page 15: Quick Installation Guide
1) Prepare a PC to run programs for the installation and video connection 2) In the case of using PoE, connect the PC and O4FB8M to the network using one of the following ways. If your LAN Switch does not support standard PoE, connect O4FB8M as shown in dotted line in Figure 4-1. - Page 16 O4FB8M User’s Manual � 2. Install IP Scanner IP Scanner is a utility to discover IP cameras o on the local network. The camera is set to DHCP mode o out of the box. Follow the sequence be low to access the e camera settings Install IP Scanner on the PC that t will be used on the same local network as the IP came era.
- Page 17 3. Remote video connection to O4FB8M 1) Connection through Web Viewer The web viewer offers the simplest way to connect to the O4FB8M. For video connection, e e nter the IP address of O4FB8Min the Internet Explorer a address bar as: Port 80 (d default) can be [ e .
- Page 18 O4FB8M User’s Manual � Available from A1 Security Cameras www.a1securitycameras.com email: sales@a1securitycameras.com...
-
Page 19: Troubleshooting
O4FB8M User’s Manual � 5. Troubleshooting 5.1. No power is applied In case of Standard PoE (Power over Ethernet) • Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. ... -
Page 20: Cannot Connect To The Camera
O4FB8M User’s Manual � 5.2. Cannot connect to the camera Check the status of the network connection through PING test. Try the following on your PC: Start > Run > Cmd > Ping IP address (Ex : Ping 172.16.42.51) ... -
Page 21: Technical Assistance
O4FB8M User’s Manual � 5.3. Technical Assistance If you need any technical assistance, please contact Speco’s technical support. P lease pro o vide the following information. Model name 1 1 1 ..MAC address 2 2 2 ..
