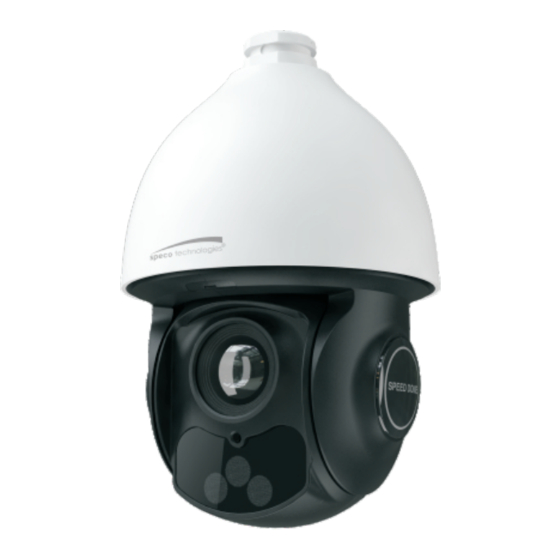

Speco O4P25X Quick Start Manual

Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Quick Start Guide
O4P25X

Advertisement

loading

Related Manuals for Speco O4P25X

Summary of Contents for Speco O4P25X

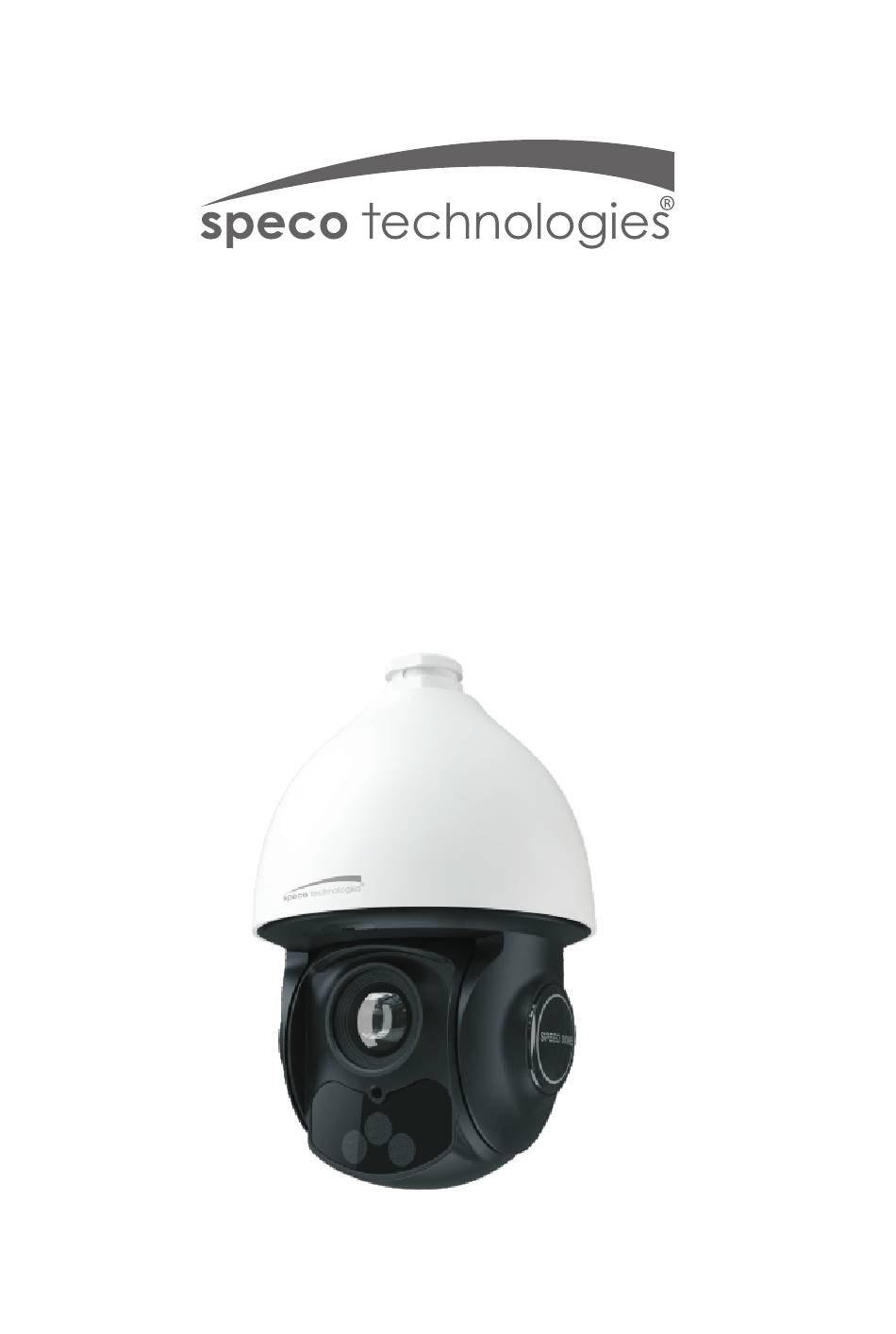

  • Page 1 Quick Start Guide O4P25X...
  • Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
  • Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.

  • Page 4: Installation

    Overview Overview ① LAN ② 3.5mm Audio Out ③ 3.5mm MIC In ④ Alarm I n /Alarm Out ⑤ Power Note: DC24V and AC24V power supply are optional. Installation Please make sure the wall is strong enough to bear the dome camera’s weight.
  • Page 5 Insert SD card ① Loosen the two screws of the dome. ② Open the cover and insert SD card. ◆ Install the Speed Dome ① Pull the cables through the bracket. Mount the ② Secure the speed dome to the bracket with speed dome to the bracket.

  • Page 6: Cable Connection

    ⑤ ⑥ Connect the cables and then hang the Fasten the bracket to the wall with bracket on the wall . four screws. Cable Connection ALM-OPEN ALM-COM ALM-GND ALM-IN1 DC24V Power AC24V 24V A Earth 24V B...

  • Page 7: Operation

    Alarm Connection: 1. Alarm Input a) There is one independent alarm input port (ALM-IN1) and one grounding port (ALM-GND). b)Alarm input(NO type): Connect DC5V~DC12V voltage between the alarm input port( ALM-IN1) and the grounding port (ALM-GND). c) Alarm input(NC type): Disconnect the voltage between the alarm input port(ALM-IN1) and the grounding port (ALM-GND).
  • Page 8 5C:F2:07:24:68:B9 O4P25X ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser (Internet Explorer 8 and up).
