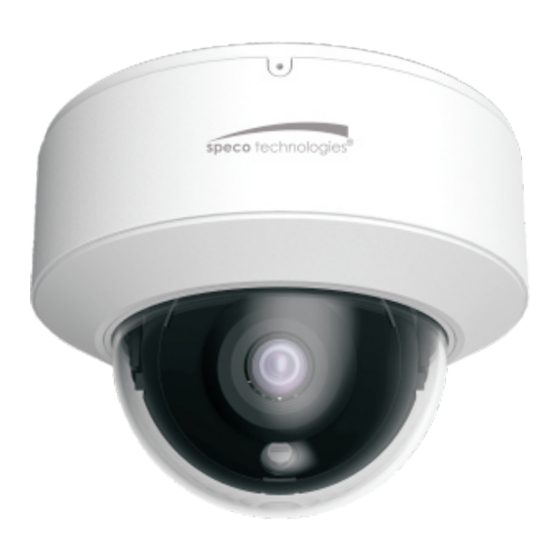

- Page 1 Quick Start Guide O4D6N...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Camera Quick start guide 8 Plastic plugs 4 Screw waterproof Screwdriver screws (PA 4 ×25mm) Rubber plug rings screws (PM 4 ×16mm) Junction box Drill template Overview Overview Ethernet connector Audio input connector Alarm input/output Power connector Microphone Micro SD Card Slot Reset...
-
Page 5: Connecting Network Cable
1--ALM-COM 2--ALM-OPEN 3--ALM-INA 4--ALM-GND DC12V * 1 It is recommended to install the water-proof connector for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ①... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Attach the drill template of the junction box to the place where you want to install the junction box and then rill the screw hole and calbe hole on the wall according to the drill template. - Page 7 Lower dome ⑤ Connect the cables, mount the rubber plug to the gap of the mounting base and fasten the camera onto the junction box. Rubber Plug 4× PM 4×16mm ⑥ Three-axis adjustment. Before adjustment, view the image of the camera on a monitor and then adjust the camera according to the figure below to get an optimum angle.
- Page 8 Pan 0°~355° Tilt 0°~67° Rotation 0°~355° ⑦ Install the lower dome back to the camera and fasten it with the screws. Then put the trim ring onto the lower dome and then rotate it clockwise until it is locked. Web Operation and Login IP Scanner can search for the device on the local network.
- Page 9 ② Install IP Scanner from the CD and run it after installation. Or download from https://www.specotech.com/ip-scanner/ 5C:F2:07:24:58:9A O4D6N ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
