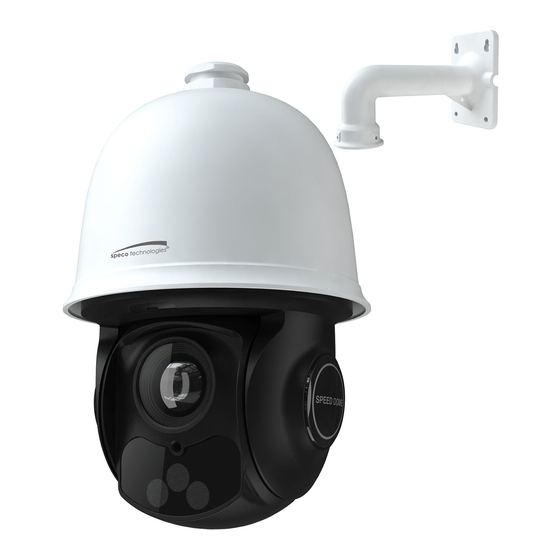

- Page 1 Quick Start Guide O4P30X2...
-
Page 2: Electrical Safety
This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1. - Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
-
Page 4: Installation
Overview ① LAN ② HP Audio Out ③ MIC In ④ Alarm In/Alarm Out ⑤ Power Note: DC24V and AC24V power supply are optional. Please take real camera as standard. Installation Please make sure the wall is strong enough to bear the dome camera’s weight. -
Page 5: Install The Camera
Install the Camera ◆ ① Pull the cables through the bracket. Mount the ② Secure the speed dome to the bracket with speed dome to the bracket. the screws. ③ Drill the screw holes on the wall according ④ Drive the two screws to the holes indicated to the drill template. - Page 6 Connections ALM-OPEN ALM-COM ALM-GND ALM-IN1 DC24V Power AC24V 24V A Earth 24V B Alarm Connection: 1. Alarm Input a) There is one independent alarm input port (ALM-IN1) and one grounding port (ALM-GND). b)Alarm input(NO type): Connect DC5V~DC12V voltage between the alarm input port( ALM-IN1) and the grounding port (ALM-GND).
- Page 7 The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. 5C:F2:07:24:68:B9 O4P30X2 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
