Summary of Contents for Speco O4P4X2

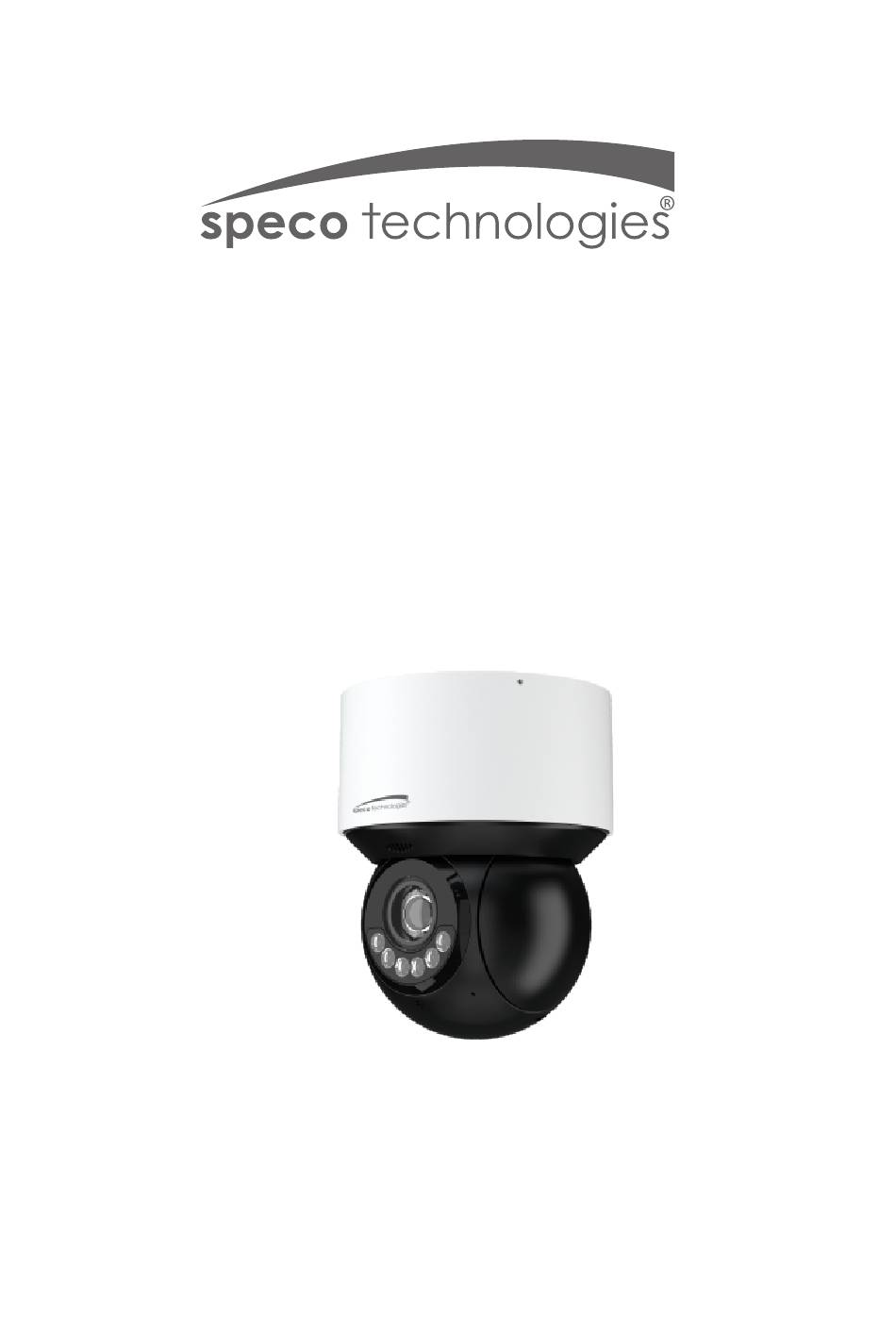

- Page 1 Quick Start Guide O4P4X2...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
-
Page 4: Installation
Overview Overview 1 Ethernet connector (PoE+) 2 MIC-Audioinput (3.5mm) 3 HP-Audiooutput (3.5mm) 4 Alarminput/output 5 DC12V Power jack 6 Ground 7 Lock Screw 8 Loudspeaker 9 Light Sensor 10 Microphone 11 Reset* 12 Memory Card Slot 11 12 *Reset: After the camera is powered on, press and hold the reset button for more than 5s to reset to the factory default settings. - Page 5 Cover Insert a micro SD card 1. Loosen the two screws of 2. Insert a micro SD card as indicated the cover and then remove above and then install the cover back. the cover. ◆ Install the PTZ camera Adapter 1.
- Page 6 4. Adjust the position of the PTZ camera and then tighten the lock screw on Mark the side. Note that the marked position should be the front of the camera. Install the PTZ camera with an optional wall mounting bracket ◆...
- Page 7 3× PA 4x25mm 3× PM 4x10mm Install the PTZ camera with an optional ceiling mounting bracket ◆ (Ceiling Mount model CLT5) Stick spacers on the Unscrew the lock screw and then remove the adapter. back of the hole B. Adapter spacer Lock Screw...
-
Page 8: Cable Connection
3× PA 4x25mm 3× PM 4x10mm Cable Connection 1--ALM-GND 2--ALM-IN 3--ALM-OPEN 4--ALM-COM DC12V Connect to earth ground... - Page 9 ConnectingAlarmInput/Output ALARM_IN ALARM_GND Relay ALARM_OPEN POWER ALARM_COM ALARM The max. load of alarm output: 30VDC, 1A Web Operation and Login IP Scanner can search for the device on the local network. ● Operation ① Make sure that the camera and the PC are connected to the same local network.
- Page 10 5C:F2:07:24:68:B9 O4P4X2 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser.
