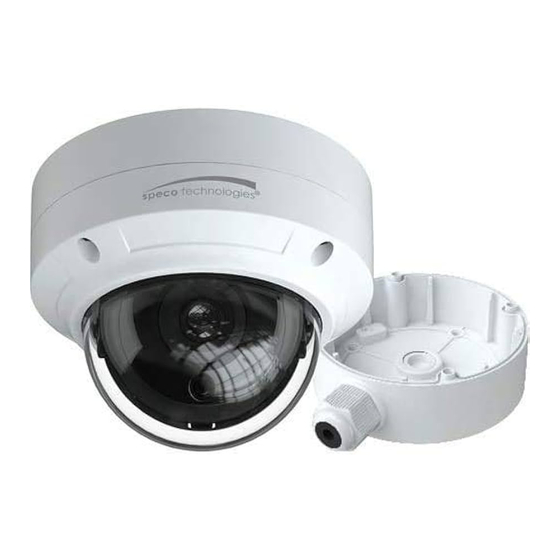

- Page 1 User Manual 4MP IP Camera O4P4/O4B6/O4B7M/O4D6/O4D7M/O4T7/O4T7M Please read this instruction carefully before operating the unit and keep it for further reference...
- Page 2 Important Safeguards and Warnings 1. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 3 Statement This guide is for reference only. Product, manuals and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation.
-
Page 4: Table Of Contents
Table of Contents Introduction ..........................................2 Web Access and Login ......................................3 Live View..........................................4 Camera Configuration ......................................6 System Configuration ................................6 4.1.1 System Information ..............................6 4.1.2 Date and Time ................................6 4.1.3 Local Recording ................................7 4.1.4 Storage .................................. - Page 5 4.7.3 Upgrade ..................................37 4.7.4 Operation Log ................................37 Search ............................................ 39 Image Search ..................................39 Video Search ..................................41 5.2.1 Local Video Search ..............................41 5.2.2 SD Card Video Search..............................42 Appendix ............................................45 Appendix 1 Troubleshooting ......................................45 Appendix 2 Specifications ......................................46...
-
Page 6: Introduction
Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for further reference. Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516. Main Features Built-in PoE (Power over Ethernet) ... -
Page 7: Web Access And Login
2 Web Access and Login The IP camera settings can be accessed via a web browser (Internet Explorer 8 and up) through the LAN. Access through IP Scanner Network connection: ①Make sure the PC and IP-Cam are connected on the same local network. The camera is set to DHCP by default and will be assigned an IP address by the DHCP server. -
Page 8: Live View
3 Live View The window below will be shown after logging in. The following table describes the icons on the live view interface Icon Description Icon Description Zoom/Focus control (for motorized Original size of resolution models) Fit (correct scale) SD card recording indicator Abnormal color Auto (fill the window) indicator... - Page 9 Icon Description Icon Description Zoom - Zoom + Focus - Focus + One key focus (used when image is out of focus after manual adjustment) Face Capture View ① Go to ConfigEventFace Detection interface. Check “Enable”. ② Return to the live view interface. Click to go to the following interface.
-
Page 10: Camera Configuration
4 Camera Configuration Press the “Setup” button to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 4.1 System Configuration 4.1.1 System Information In the “System Information” interface, the system information of the device is listed. 4.1.2 Date and Time To set the time and date, go toSystemDate and Time. -
Page 11: Local Recording
4.1.3 Local Recording Go to SystemLocal Recording to set up the storage path of captured pictures and recorded videos on the local PC. There is also an option to enable or disable the bitrate display in the recorded files. Additionally, the snapshots triggered by smart events (including face detection, line crossing detection and intrusion detection) can be selected to save to the local PC. - Page 12 2. Set record stream, pre-record time and cycle writing. Pre Record Time: Set the time to record before the actual recording begins. 3. Set schedule recording. Check “Enable Schedule Record” and set the schedule. Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one hour increments. Green means scheduled. Blank means unscheduled.
-
Page 13: Video Configuration
Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number. - Page 14 Brightness: Set the brightness level of the camera’s image. Contrast: Set the color difference between the brightest and darkest parts. Hue: Set the total color degree of the image. Saturation: Set the degree of color purity. The purer the color, the brighter the image is. Sharpness: Set the resolution level of the image plane and the sharpness level of the image edge.
-
Page 15: Video / Audio Configuration
Off: disables the anti-flicker function. This is used mostly in outdoor installations. 50Hz: reduces flicker in 50Hz lighting conditions. 60Hz: reduces flicker in 60Hz lighting conditions. Smart IR: Choose “ON” or “OFF”. This function can effectively avoid image overexposure and underexposure by controlling the brightness of the IR lights according to the actual conditions to make the image more realistic. - Page 16 Click the “Audio” tab to go to the interface as shown below. Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant.
-
Page 17: Osd Configuration
4.2.3 OSD Configuration Go toVideoOSDinterface as shown below. Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. Picture Overlap Settings: Check “OSD Content1”, choose “Picture Overlay”... -
Page 18: Roi Configuration
To clear the video mask: Click the “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area. -
Page 19: Zoom/Focus
4.2.6 Zoom/Focus This function is only available for the model with motorized zoom lens. Within this section, zoom and focus can be controlled. If the image is out of focus after a manual adjustment, one key focus can be used to set the focus automatically. 4.3 Event Setup 4.3.1 Motion Detection Go to Event SetupMotion Detection to set motion detection alarm. -
Page 20: Other Alarms
Move the “Sensitivity” scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select “Add” and click “Draw”. Dragthe mouse to draw the motion detection area; Select “Erase” and dragthe mouse to clear motion detection area. - Page 21 2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detectionchapter for details. IP Address Conflict This function is only available for the models with Alarm Out interface.
-
Page 22: Alarm In (Sensor Input)
4.3.3 Alarm In (Sensor Input) This function is only available for some models.To set sensor alarm (alarm in): Go toEvent SetupAlarm In interface as shown below. 1. Click “Enable” and set the alarm type, alarm holding time and sensor name. 2. -
Page 23: Alarm Server
Day/Night Switch Linkage: Having selected this mode, select the alarm type and choose to open or close alarm out when the camera switches to day mode or night mode. Timing: Select the alarm type. Then click “Add” and drag the mouse on the timeline to set the schedule of alarm out; click “Erase” and drag the mouse on the timeline to erase the set time schedule. -
Page 24: Line Crossing
1. Enable the applicable detection that’s desired. Scene Change Detection: Alarms will be triggered if the scene of the video has changed. Video Blur Detection: Alarms will be triggered if the video becomes blurry. Enable Video Color Cast Detection: Alarms will be triggered if the video becomes obscured. 2. - Page 25 1. Enable line crossing alarm and select the snapshot type and the detection target. Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when there are targets detected. Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.
-
Page 26: Intrusion
Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneously. Direction：A<->B, A->B and A<-B optional. This indicates the direction of the intruder who crosses over the alarm line that would trigger the alarm. - Page 27 1. Enable line crossing alarm and select the snapshot type and the detection target. Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when there are targets detected. Save Target Cutout: If it is enabled, the detected target cutout pictures will be captured and saved to the SD card when there are targets detected.
-
Page 28: Face Detection
Set the alarm area number on the right side. Up to 4 alarm areas can be added. Click the “Draw Area” button and then click around the area where you want to set as the alarm area in the image on the left side (the alarm area should be a closed area). - Page 29 2. Enable the face detection function. Save Source Information: if checked, the whole picture will be saved to an SD card when detecting a face. Save Face Information: if checked, the captured face picture will be saved to an SD card when detecting a face. Note: To save images to a local PC, please enable the local smart snapshot storage first (SystemLocal Recording).
- Page 30 Use this to draw the approximate size of the face that you want the camera to capture. This is useful when there are multiple faces in the background or foreground that are not needed to be captured. To enable, Click “Draw Area” and drag the border lines of the rectangle to modify its size.
-
Page 31: Network Configuration
O4P4/O4B6/O4B7M/O4D6/O4D7M/O4T7/O4T7M The recommended information Optimal Object Model Surveillance Width Focal-Length Installation Height Depression Angle Distance O4P4/ O4B6/ O4D6/ 3.6mm 1.9m(6.2ft) 1.8m(5.9ft) 10° 3.2m（10.5ft） O4T7 2.8-12mm(W) 1.5m(4.9ft) 1.8m(5.9ft) 10° O4B7M/O4D7M 3.2m（10.5ft） 2.8-12mm(T) 6.1 m(20ft) 2.6m(8.5ft) 10° /O4T7M/ 4. The object distancedepends on the focal-length of the lens mounted in the camera. -
Page 32: Port
Either method of network connection can be used. If PPPoE is used to connect internet, the camera will get a dynamic WAN IP address. This IP address will change frequently. To be notified, the IP change notification function can be used. Click “IP Change Notification Config”... -
Page 33: Ddns
1. Check “Enable”. 2. Check the IP address and port of the transfer media server in the VMS. Then enable the auto report in the VMS when adding a new device. Next, enter the remaining information of the device in the VMS. After that, the system will automatically allot a device ID. -
Page 34: 802.1X
2. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software that will be used. 3. Set the values for “Read SNMP Community”, “Write SNMP Community”, “Trap Address”, “Trap Port” and so on. Please make sure the settings are the same as that of the SNMP software. -
Page 35: Rtsp
authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network. Protocol type and EAPOL version: Please use the default settings. User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server. -
Page 36: Ftp
Sender Address: sender’s e-mail address. User name and password: sender’s user name and password. Server Address: The SMTP IP address or host name. Select the secure connection type at the “Secure Connection” pull-down list according to what’s required. SMTP Port: The SMTP port. Send Interval(S): The time interval of sending email. -
Page 37: Https
Upload Path: The directory where files will be uploaded to. Port: The port of the FTP server. Use Name and Password: The username and password that are used to login to the FTP server. 4.5.11 HTTPS HTTPs provides authentication of the web site and protects user privacy. Go toNetworkHTTPS as shown below. -
Page 38: Qos
Click “Create” to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device. 4.5.12 QoS QoS (Quality of Service) function is used to provide different quality of services for different network applications. With the deficient bandwidth, the router or switch will sort the data streams andtransfer them according totheir priority to solve the network delay and network congestion by using this function. -
Page 39: Online User
2. Enter user name in “User Name” textbox. 3. Enter letters or numbers in “Password” and “Confirm Password” textbox. 4. Choose the user type. Administrator has all permissions. Normal user can only view the live video. Advanced user has the same permissions as an Administrator except for;... -
Page 40: Block And Allow Lists
4.6.3 Block and Allow Lists Go toSecurityBlock and Allow Lists as shown below. The setup steps are as follows: Check the “Enable address filtering” check box. Select “Block/Allow the following address”, IPv4/IPv6/MAC and thenenterIP address or MAC address in the address box and click the “Add”... -
Page 41: Reboot
Import & Export Settings Configuration settings of the camera can be exported form a camera into another camera. 1. Click “Browse” to select the save path for import or export information on the PC. 2. Click the “Import Setting” or “Export Setting” button. Default Settings ... - Page 42 2. Select the main type, sub type, start and end time. 3. Click “Search” to view the operation log. 4. Click “Export” to export the operation log.
-
Page 43: Search
5 Search 5.1 Image Search In the Setup interface, click Searchto go to the interface as shown below. Images that are saved on the PC or SD card can be found here. Local Image Search 1. Choose “Picture”—“Local”. 2. Set time: Select dateand choose the start and end time. 3. - Page 44 Click to return to the previous interface. SD Card Image Search 1. Choose “Picture”—“SD Card”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images.
-
Page 45: Video Search
Icon Description Icon Description Close: Select an image and click Close all: Click this button to close all this button to close the image. images. Save: Click this button to select the Save all: Click this button to select the path for saving the image on the path for saving all pictures on the PC. -
Page 46: Sd Card Video Search
Icon Description Icon Description Play button. After pausing the video, Pause button click this button to continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. 5.2.2 SD Card Video Search ClickSearchto go to the interface as shown below.Videos that were recorded onthe SD card can be played in this interface. - Page 47 4. Select the alarm events at the bottom of the interface. 5. Select mix stream (video and audio stream) or video stream as needed. 6. Double click on a file name in the list to start playback. The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading 1.
- Page 48 Click “Set up” to set the storage directory of the video files. Click “Open” to play the video. Click “Clear List” to clear the downloading list. Click “Close” to close the downloading window.
-
Page 49: Appendix
Appendix Appendix 1 Troubleshooting IP Scanner does not show any device. Make sure that the PC that’s running IP Scanner is on the same local network as the devices. Internet Explorer cannot download ActiveX control. IE browser may be set up to block ActiveX. Follow the steps below. 1. -
Page 50: Appendix 2 Specifications
Appendix 2 Specifications Specification /Model O4B6 Image Sensor 1/3”CMOS Image Size 2592×1520 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.005 lux@F1.6, AGC ON, 0 lux with IR Min. llumination 0.0028 lux@F1.2, AGC on, 0 lux with IR 2.8mm@F1.6, horizontal FoV: 100.4° Camera Lens 3.6mm@F1.6, horizontal FoV: 80.6°... - Page 51 Specification /Model O4B7M Image Sensor 1/3”CMOS Image Size 2592×1520 Electronic Shutter 1/25s~1/100000s Iris Type DC Iris 0.005 lux@F1.4, AGC ON, 0 lux with IR Min. llumination 0.0028 lux@F1.2, AGC on, 0 lux with IR Camera Lens 2.8~12mm@F1.4, motorized zoom lens, horizontal FoV:94.2°~29.8° Lens Mount Ø14 Day&Night...
- Page 52 Specification /Model O4D6 Image Sensor 1/3”CMOS Image Size 2592×1520 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.005 lux@F1.6, AGC ON, 0 lux with IR Min. llumination 0.0028 lux@F1.2, AGC on, 0 lux with IR Camera 2.8mm@F1.6, horizontal FoV: 100.4° Lens 3.6mm@F1.6, horizontal FoV: 80.6°...
- Page 53 Specification /Model O4D7M Image Sensor 1/3”CMOS Image Size 2592×1520 Electronic Shutter 1/25s~1/100000s Iris Type DC Iris 0.005 lux@F1.6, AGC ON, 0 lux with IR Min. llumination 0.0028 lux@F1.2, AGC on, 0 lux with IR Camera Lens 2.8~12mm@F1.4, motorized zoom lens, horizontal FoV:94.2°~29.8° Lens Mount Ø14 Day&Night...
- Page 54 Specification /Model O4T7 Image Sensor 1/3”CMOS Image Size 2592×1520 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.005 lux@F1.6, AGC ON, 0 lux with IR Min. llumination 0.0028 lux@F1.2, AGC on, 0 lux with IR Camera 2.8mm@F1.6, horizontal FoV: 100.4° Lens 3.6mm@F1.6, horizontal FoV: 80.6°...
- Page 55 Specification /Model O4T7M Image Sensor 1/3”CMOS Image Size 2592×1520 Electronic Shutter 1/25s~1/100000s Iris Type DC Iris 0.005 lux@F1.4, AGC ON, 0 lux with IR Min. llumination 0.0028 lux@F1.2, AGC on, 0 lux with IR Camera Lens 2.8~12mm@F1.4, motorized zoom lens, horizontal FoV:94.2°~29.8° Lens Mount Ø14 Day&Night...
- Page 56 Specification /Model O4P4 Image Sensor 1/3”CMOS Image Size 2592×1520 Electronic Shutter 1/25s~1/100000s Iris Type Fixed Iris 0.005 lux@F1.6, AGC ON, 0 lux with IR Min. llumination 0.0028 lux@F1.2, AGC on, 0 lux with IR Camera 2.8mm@F1.6, horizontal FoV: 100.4° Lens 3.6mm@F1.6, horizontal FoV: 80.6°...
- Page 57 Models: O4P4/O4B6/O4B7M/O4D6/O4D7M/O4T7/O4T7M Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
