Configuring The Com Ports - Brainboxes CC-310 Hardware Manual

PCI VELOCITY / OPTO ISO RS422/485
Note: The values used in the above section were those
returned by the BBCARDS program, as described in the
above section.
When you have finished, click on OK. A restart message
will be displayed; to save time only restart when both ports
have been added and correctly configured.
Repeat the above process to add the second COM port of the
PCI RS422/485, the COM base will be 0148; the IRQ value

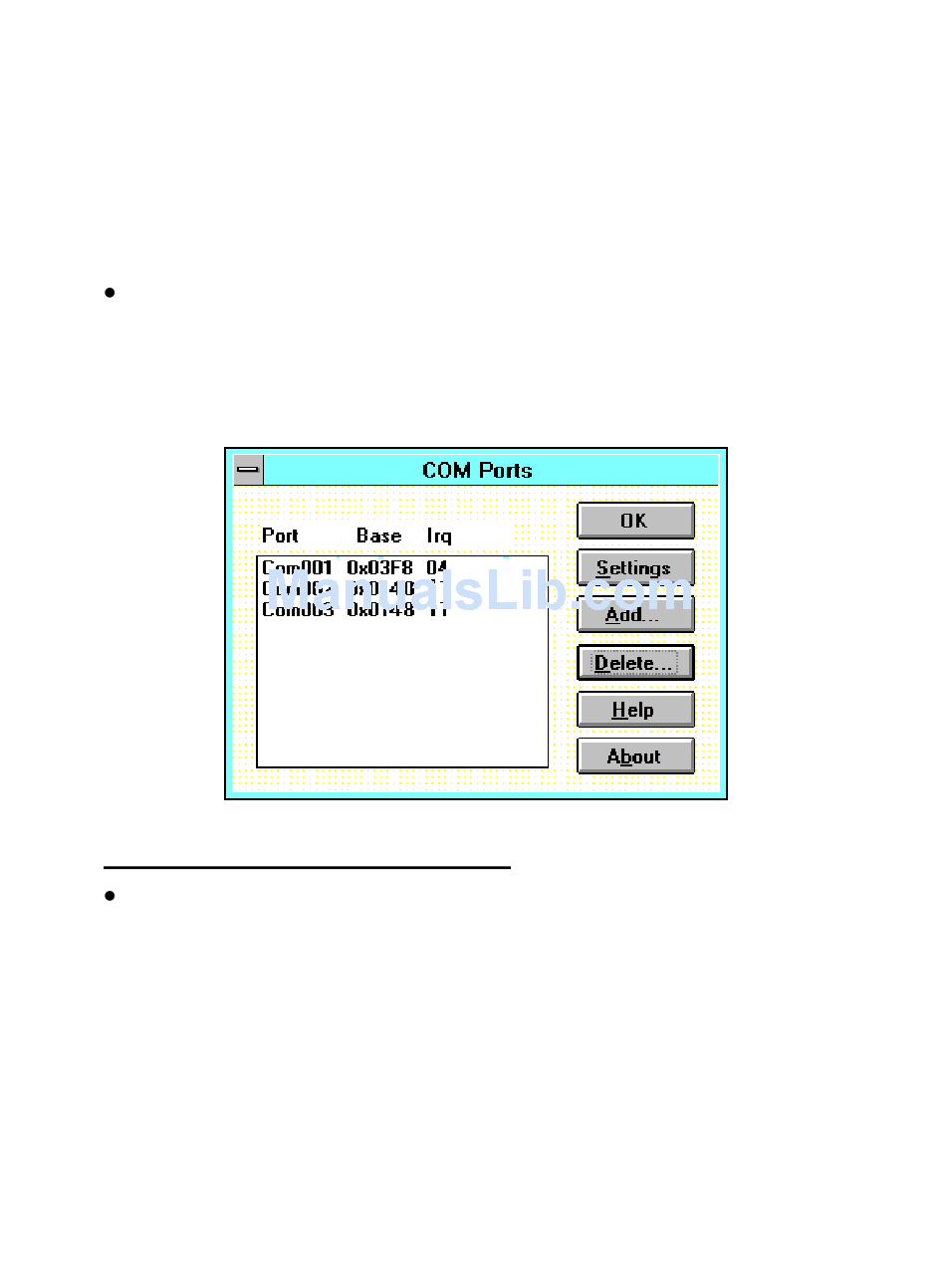

will remain the same. After adding the remaining COM port
the COM Ports Window will look similar to the following:

Configuring The COM Ports.

From the COM Ports window choose the port that you wish to
configure and click on Settings - the following dialogue will
be displayed:
Software Configuration
Chapter 3 Page 33
