PCI VELOCITY / OPTO ISO RS422/485
Hardware Installation.
STEP 1: Before the PC card can be installed the power to the PC
MUST be switched OFF, and to ensure extra safety, the power
lead removed from the PC.
STEP 2: Remove the PC case.

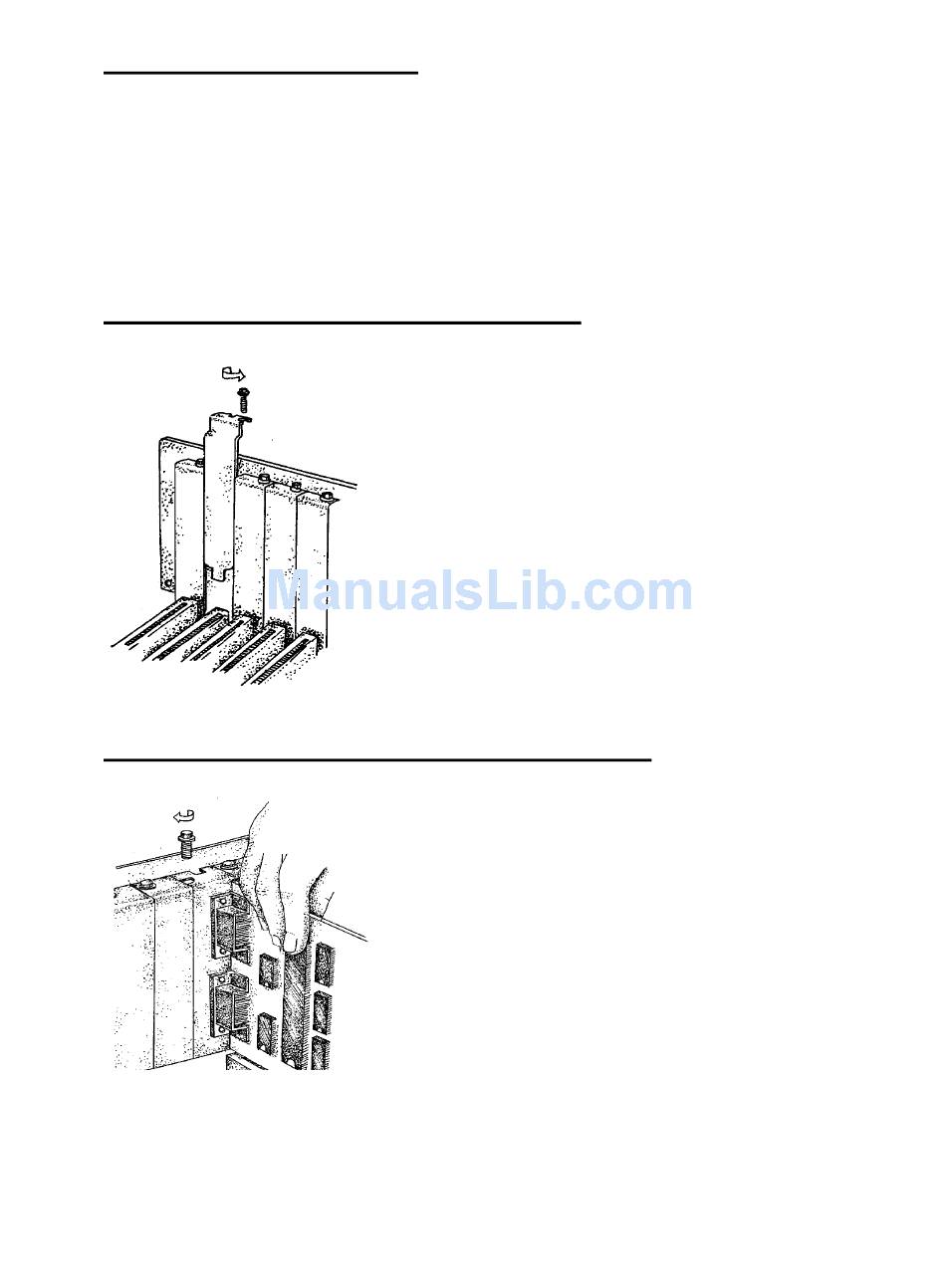

Step 3 - Removing Blanking Cover
Step 4 - Inserting The PCI Serial Card.
STEP 5: The connectors should fit neatly through the slot's
aperture to the outside world.
Choose an empty expansion slot. Remove
the blanking cover protecting the slot on
the PC back panel. KEEP the blanking
cover screw safely for later.
Now insert the PCI Serial card in the slot.
Be careful to ensure that the gold plated
PCB fingers fits neatly into the expansion
connector. Press down firmly but evenly
on the top of the PCI Serial card
Specifications
Chapter 2 Page 13
