Software Configuration

PCI Velocity RS422/485 Card Settings In Windows 95

& 98.

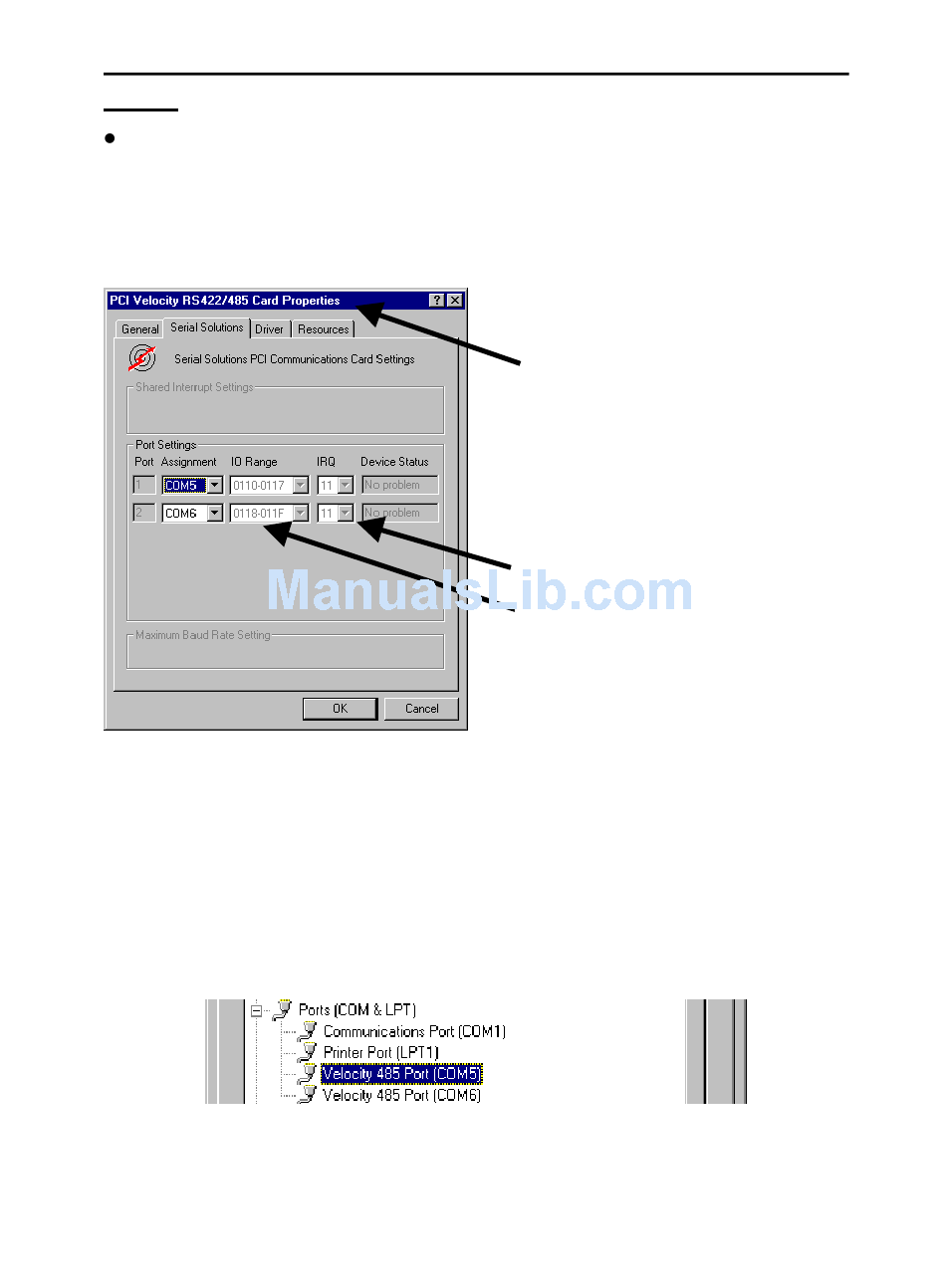

Select the PCI Velocity RS422/485 card from the "Multi-

Function Adapter" entry in Device Manager serial and click

on properties to view the cards general properties; clicking on

the Serial Solutions tab produces:

In this window, the COM port assignment may be changed,

simply by selecting a new COM port value from the pull down

menu relevant to the port. However, COM port usage other than

those for the PCI Velocity RS422/485 card itself are not checked,

so it is advisable to first check which COM ports are in use - port

availability can be checked by viewing the Device Manager:

PCI VELOCITY / OPTO ISO RS422/485

Opto users, this entry will

appear as:

PCI Opto RS422/485

Card Properties.

The I/O address and interrupt

are assigned to the card by the

"Plug and play" system of the

PC. These values CANNOT

be changed with the current

version of the driver.
