ELC Distributed I/O Adapters

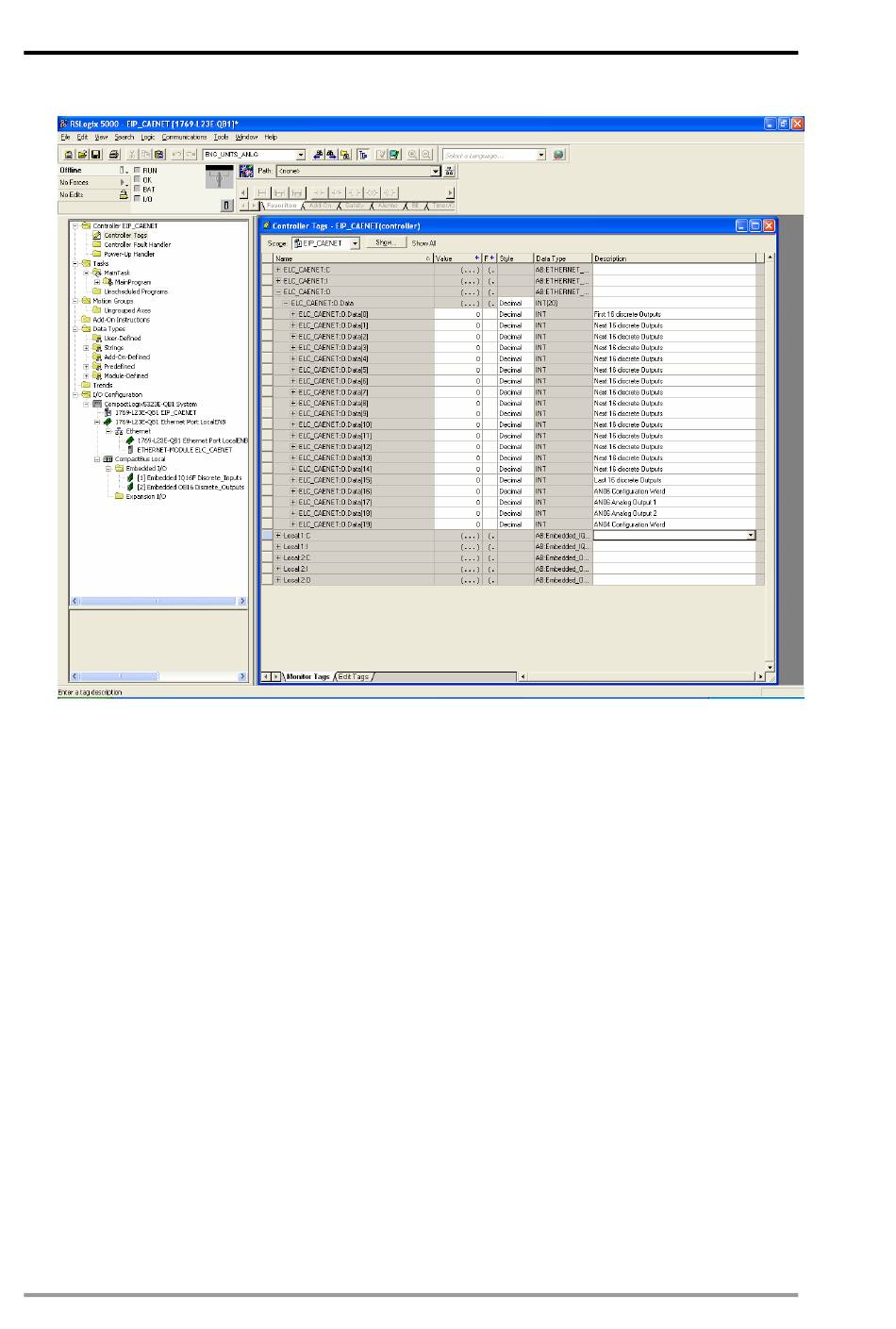

Tags for the Output Data for the ELC-CAENET module:
Download the project to the CompactLogix controller and place the controller into the Run mode
and manipulate the discrete output bits and analog output words per the following, as a test:
ELC_CAENET:O.Data[0]
ELC_CAENET:O.Data[16] Configuration word for the ELC-AN06 analog module
ELC_CAENET:O.Data[17] An06 Analog Output 1
ELC_CAENET:O.Data[18] An06 Analog Output 2
ELC_CAENET:O.Data[19] Configuration word for the ELC-AN04 analog module
These are the only output tags that are needed for this example.
View the discrete input bits and analog input words per the following. Analog outputs may be
wired to analog inputs for test purposes:
ELC_CAENET:I.Data[0]
ELC_CAENET:I.Data[1]
ELC_CAENET:I.Data[2]
ELC_CAENET:I.Data[16]
ELC_CAENET:I.Data[17]
ELC_CAENET:I.Data[18]
140
16 discrete outputs for this example (Total 16)
First 16 discrete inputs
Second 16 discrete inputs
Final 16 discrete inputs for this example (total 48)
AN06 Analog Input 1
AN06 Analog Input 2
AN06 Analog Input 3
For More Information visit: www.eaton.com
MN05002003E
