Summary of Contents for Eaton EBT 01

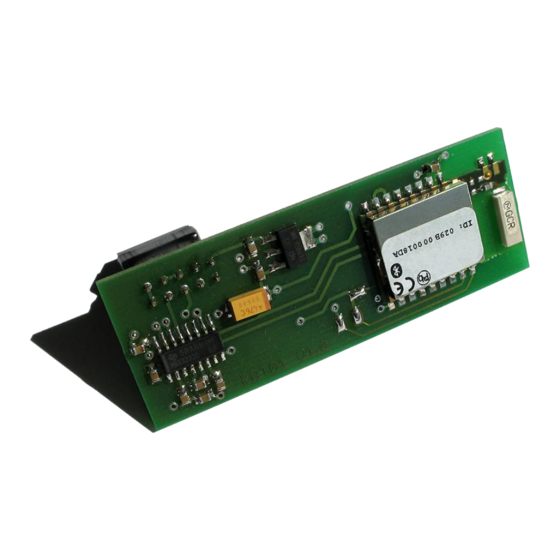

- Page 1 EBT 01 Extension Bluetooth Instruction manual Version 1.1 ID-no.: ........ Version valid from: 14.06.2012...
- Page 2 Index Page GENERAL 1.1. Intended applications 1.2. General informations INSTALLATION 2.1. Installation of the EBT 01 in the In-line-display unit 2.2. Establish a connection to the external computer APPENDIX 3.1. Technical data 3.2. Trouble shooting...
-
Page 3: General Informations
This manual contains informations and safety advices, which ensure risk free operations and which help to keep the device in an ideal condition. Therefore it is necessary that all people involved in operating the EBT 01 do note this manual unconditionally. - Page 4 RS 232 Fastening again of the cover from the display unit and reconnecting of the power supply for the display unit. The EBT 01 is now ready for use. An additional power supply for the EBT 01 is not necessary.
- Page 5 The EBT 01 will be recognized by the computer by means of the SPP (Serial Port Protocol). The EBT 01 is now ready for operation and a data transfer from the Inline-display unit to the computer can be arranged now.
-
Page 6: Troubleshooting
11 g Operating distance: max. 50 m outdoor 3.2. Trouble shooting No settings of the EBT 01 are done by the operator. In case of the malfunctions, please contact INTERNORMEN Technology GmbH A brief description of the problem would expedite the trouble shooting and the repair process. - Page 7 However, it is the user’s responsibility to determine the suitability for his own use of such products. Since the actual use by others is beyond our control, no Brazil guarantee, expressed or implied, is made by Eaton as to the effects of such use or Av. Julia Gaioli, 474 – Singapore the results to be obtained.
