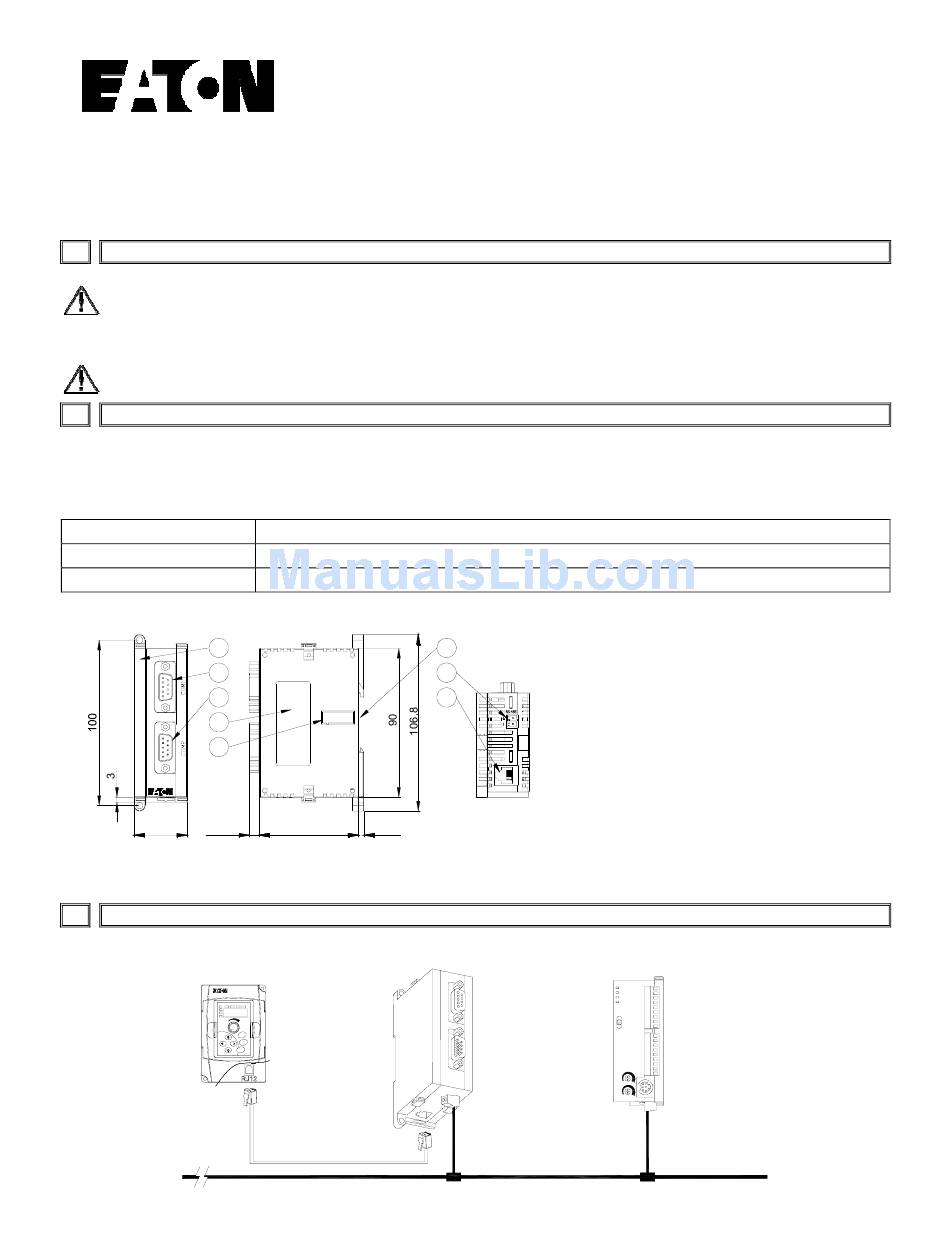

ELC-485APTR
RS-485 Interface Adpater
1
ELC-485APTR is an OPEN-TYPE. Please place the module in an enclosure away from airborne dust or high humidity
and prevent electric shock or sudden collision on ELC-485APTR. Also, it is equipped with protective methods such as
some special tool or key to open the enclosure, so as to avoid the hazard to users or any damage to the module. Do
NOT touch terminals when power on.
I/O terminal screws should be tightened to between 1.95 kg-cm (1.7 in-lbs). Use copper conductor only, 60
2
ELC-485APTR is mainly designed to connect Eaton product by RS-485 interface. It is equipped with surge absorber and
limited current protection to ensure safe connection of different devices. Also, a switch enabled built-in terminator (120Ω).
Environmental Specification:
Operation
Storage
Vibration/Shock resistance

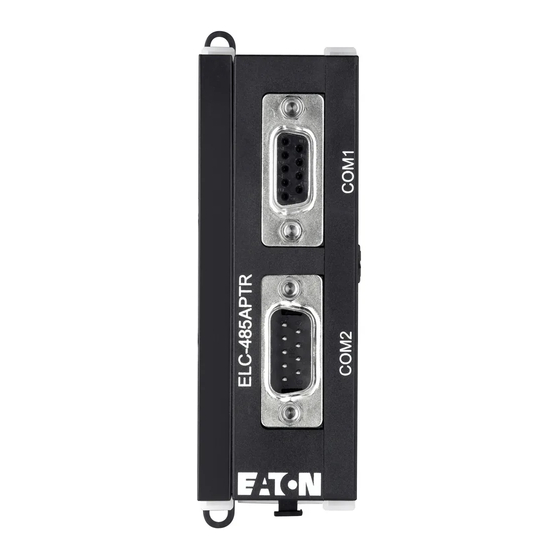

Product profile:

1
2
3
4
5
32
6
Fig. 1: Profile and Dimensions
3
Connection of ELC-485APTR and AC Motor Drive (please see AC motor drive user manual for detail information)
MVX 9000

INTRODUCTION

0℃~55℃(Temperature), 50~95%(Humidity), pollutant degree 2
-25℃~70℃(Temperature), 5~95%(Humidity)
International Standard: IEC1131-2, IEC 68-2-6(TEST Fc)/ IEC1131-2 & IEC 68-2-27 (TEST Ea)
3,4
60
Units: mm
ELC-485APTR Connection with Eaton Products
Fig. 2: ELC controller connection with MVX9000
Instruction sheet

WARNING

6
1. Mounting plate
7
2. COM 1 (DB9 female)
8
3. COM 2 (DB9 male)
4. Nameplate
5. ON/OFF of termination resistor (factory
setting: OFF)
6. DIN rail (35mm)
7. RS-485 port
8. RJ12 port
RS-485 Network
1
IL05003022E.pdf
o
o
C / 75
C.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELC-485APTR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eaton ELC-485APTR

  • Page 1 ELC-485APTR RS-485 Interface Adpater ELC-485APTR is an OPEN-TYPE. Please place the module in an enclosure away from airborne dust or high humidity and prevent electric shock or sudden collision on ELC-485APTR. Also, it is equipped with protective methods such as some special tool or key to open the enclosure, so as to avoid the hazard to users or any damage to the module.
  • Page 2 Compact Installation reference: See Fig. 3a in lower left, when ELC-485APTR is separated from mounting plate, it can be used as the last extension module with its RS-485 port connecting to ELC controller’s (see Fig. 3b for illustration). This connection is feasible for ELC controller to connect AC Motor Drive within 5 meters.
