Eaton ConnectUPS Web/SNMP Card Quick Start Instructions

Hide thumbs

Advertisement

Quick Links

®
Eaton
ConnectUPS

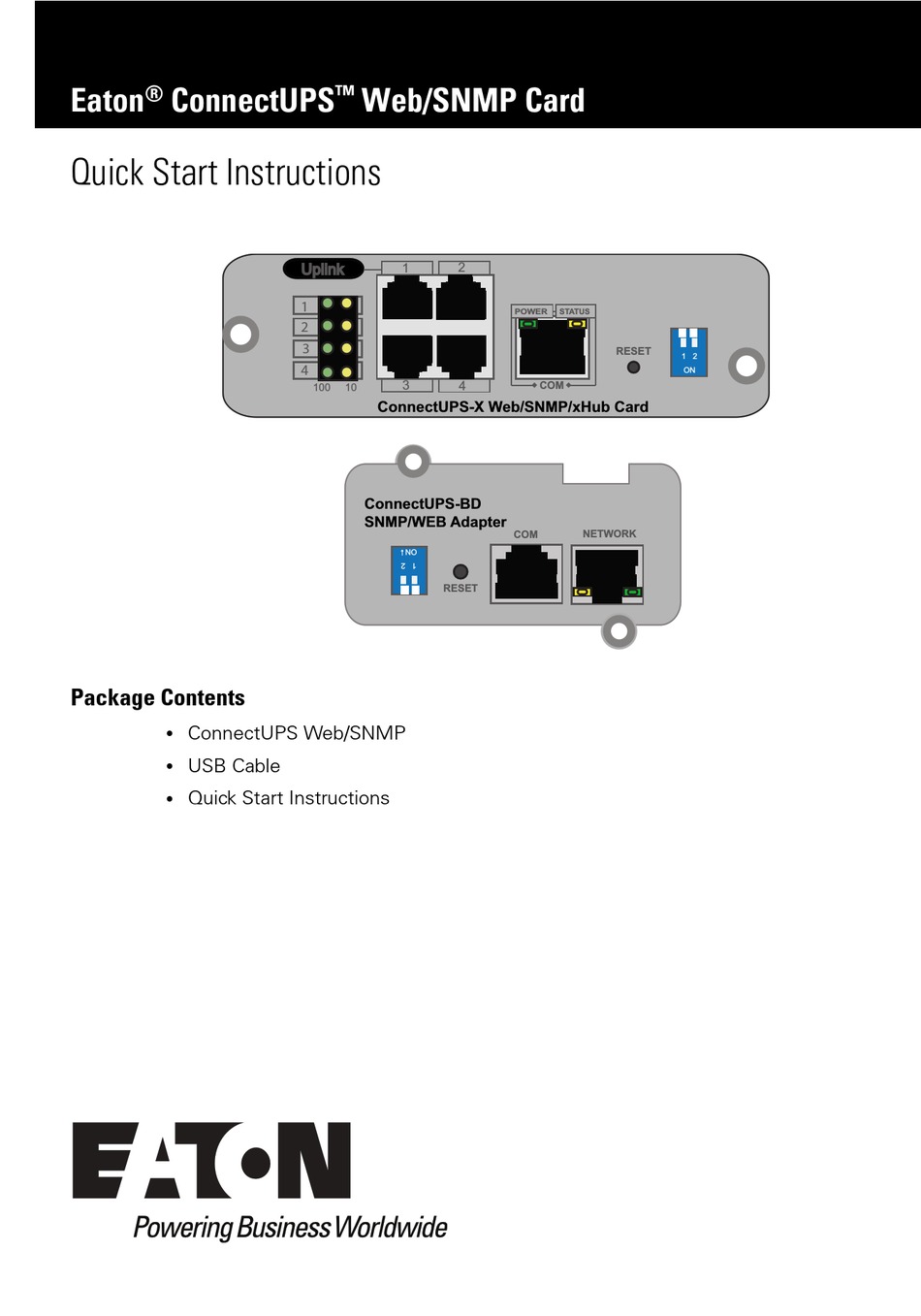

Quick Start Instructions
Package Contents
ConnectUPS Web/SNMP
l
USB Cable
l
Quick Start Instructions
l
™
Web/SNMP Card
Uplink
1
2
1
2
3
4
3
4
100
10

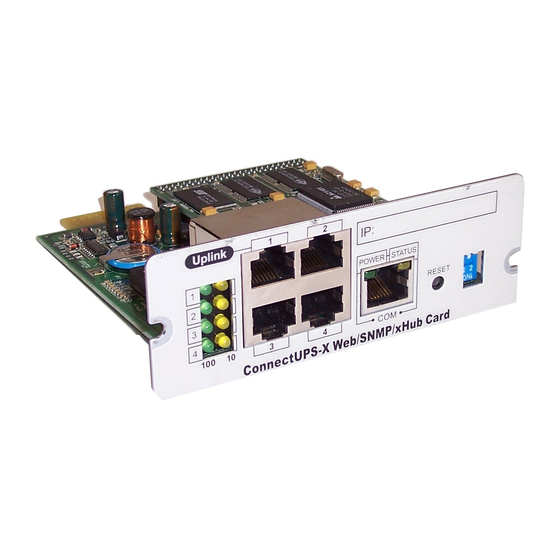

ConnectUPS-X Web/SNMP/xHub Card
ConnectUPS-BD
SNMP/WEB Adapter
RESET
POWER
STATUS
RESET
1 2
ON
COM
COM
NETWORK
COM

Advertisement

loading
Need help?

Need help?

Do you have a question about the ConnectUPS Web/SNMP Card and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton ConnectUPS Web/SNMP Card

Summary of Contents for Eaton ConnectUPS Web/SNMP Card

  • Page 1 ® ™ Eaton ConnectUPS Web/SNMP Card Quick Start Instructions Uplink POWER STATUS RESET ConnectUPS-X Web/SNMP/xHub Card ConnectUPS-BD SNMP/WEB Adapter NETWORK RESET Package Contents ConnectUPS Web/SNMP USB Cable Quick Start Instructions...
  • Page 2 Call your local service representative Eaton, PredictPulse, and Power Xpert are registered trademarks and ConnectUPS is a trademark of Eaton Corporation or its subsidiaries and affiliates. Google Chrome is a trademark of Google Inc. Linux is a registered trademark of Linus Torvalds.

  • Page 3: Table Of Contents

    Section 5 Obtain a DHCP-assigned IP Address ..........12 Section 6 Assign an IP Address Manually ............. 15 Section 7 Disable Browser Compatibility Mode ..........17 Section 8 Register a PredictPulse Subscription ..........19 Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 3...

  • Page 4: Section 1 Installation Checklist

    If using the SMTP host name, verify that you also have the Name Server IP address (see Step 3). SMTP (mail server) IP Address or Host Name _____________________________________________ Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 4...

  • Page 5: Section 2 Install The Card

    0 or OFF position, which is flipped up (see Figure 1 and Figure 2). - If you are setting up the ConnectUPS Web/SNMP card in a DHCP environment, set DIP switch 2 to the 1 or ON position, which is flipped down.
  • Page 6 ConnectUPS-BD SNMP/WEB Adapter NETWORK RESET Figure 2. Installing the Card (UPS-BD Card Shown) Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 6...

  • Page 7: Section 3 Connect The Card To The Computer

    (Depending on your laptop, you may need an adapter for this step.) See Figure 3 and Figure 4. Connect an active Ethernet cable (not supplied) from the network connection to the Ethernet port on the ConnectUPS Web/SNMP card (see Figure 3 and Figure 4). Ethernet Cable...
  • Page 8 Configuration Cable ConnectUPS-BD SNMP/WEB Adapter NETWORK RESET Figure 4. Connecting the Card (UPS-BD Model Shown) Wait approximately two minutes until the green UPS Data LED flashes regularly, indicating normal operation. Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 8...

  • Page 9: Section 4 Initialize The Card Configuration

    On the screen that displays, select New Connection Properties. Click the Connect To tab. From the “Connect Using...”drop-down list, select the COM port that you are using (see Figure 5). Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 9...
  • Page 10 Verify that your terminal program is set to the correct communication port for the serial connection. Verify that the card has power (one or more LEDs on the card are illuminated). The UPS should be turned on. Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 10...
  • Page 11 To obtain the IP address assigned through DHCP , continue to "Obtain a DHCP-assigned IP Address" on page 12. To manually enter a static (fixed) IP address for the card’s network connection, continue to "Assign an IP Address Manually" on page 15. Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 11...

  • Page 12: Section 5 Obtain A Dhcp-Assigned Ip Address

    If no, the value is disabled, type Type 1 for BOOTP/DHCP control and press ENTER. Type 1 to enable DHCP (see Figure 7), then type 0 and press ENTER until you return to the main menu. Figure 7. Enable DHCP Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 12...
  • Page 13 Log on as administrator. The default user name and default password are “admin. ” When the ConnectUPS Web/SNMP card Web page displays, you know that the card is communicating with the network. Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 13...
  • Page 14 For detailed information, refer to the Eaton ConnectUPS Web/SNMPCard (For X, BD, and E) User’s Guide, which is available through a link on the Documentation tab on the ConnectUPS product Web site. Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 14...

  • Page 15: Section 6 Assign An Ip Address Manually

    The screen displays “Restarting... ” when it begins the process and “ConnectUPS Web/SNMP Card V4.32 Ready” when it finishes (see Figure 10). The card is now operational. Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 15...
  • Page 16 IP address is working, you are prompted to log on. Log on as administrator. The default user name and default password are “admin. ” When the ConnectUPS Web/SNMP card Web page displays, you know that the card is communicating with the network. ®...

  • Page 17: Section 7 Disable Browser Compatibility Mode

    Disable Browser Compatibility Mode Browser compatibility allows Web pages designed for older versions to display properly. If data does not display properly on your ConnectUPS Web/SNMP card Web page, the browser compatibility mode should be disabled. To disable the compatibility mode: Open your Web browser.
  • Page 18 Uncheck (disable) the Display all websites in Compatibility View checkbox to disable compatibility mode and click Close. NOTE Close and re-open your browser so that the changes take effect. Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 18...

  • Page 19: Section 8 Register A Predictpulse Subscription

    PredictPulse is a remote monitoring and management subscription service that collects and analyzes data from connected power infrastructure devices, providing Eaton with the insight needed to make recommendations and take action on your behalf. This service has limited availability outside of the United States.
  • Page 20 Double-click the downloaded Activate PredictPulse.exe icon. The PredictPulse registration window opens (see Figure 12). Figure 12. Registering a PredictPulse Subscription Enter the IP address for the installed ConnectUPS Web/SNMP card and click Find My Serial Number. NOTE If the serial number does not display, click Start Over and manually enter the serial number.
  • Page 21 When this stage of registration completes, an information window explains the next step (see Figure 13). Click Activate Another Serial Number to register multiple devices or click Exit to continue. Figure 13. Example of First Step E-mail Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 21...
  • Page 22 If you try to register a device that has already been registered, you will receive an error message e-mail from the PredictPulse support team with instructions about the problem. A profile e-mail displays with your profile data (see Figure 15). Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 22...
  • Page 23 Figure 15. Example Profile Page 10. Click Continue to finish the registration (see Figure 16). Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 23...
  • Page 24 Figure 16. Example Completion E-mail Eaton ConnectUPS Web/SNMP Card Quick Start Instructions 164950185—Rev D 24...
  • Page 26 164950239 164940185 D...
