ELC Distributed I/O Adapters

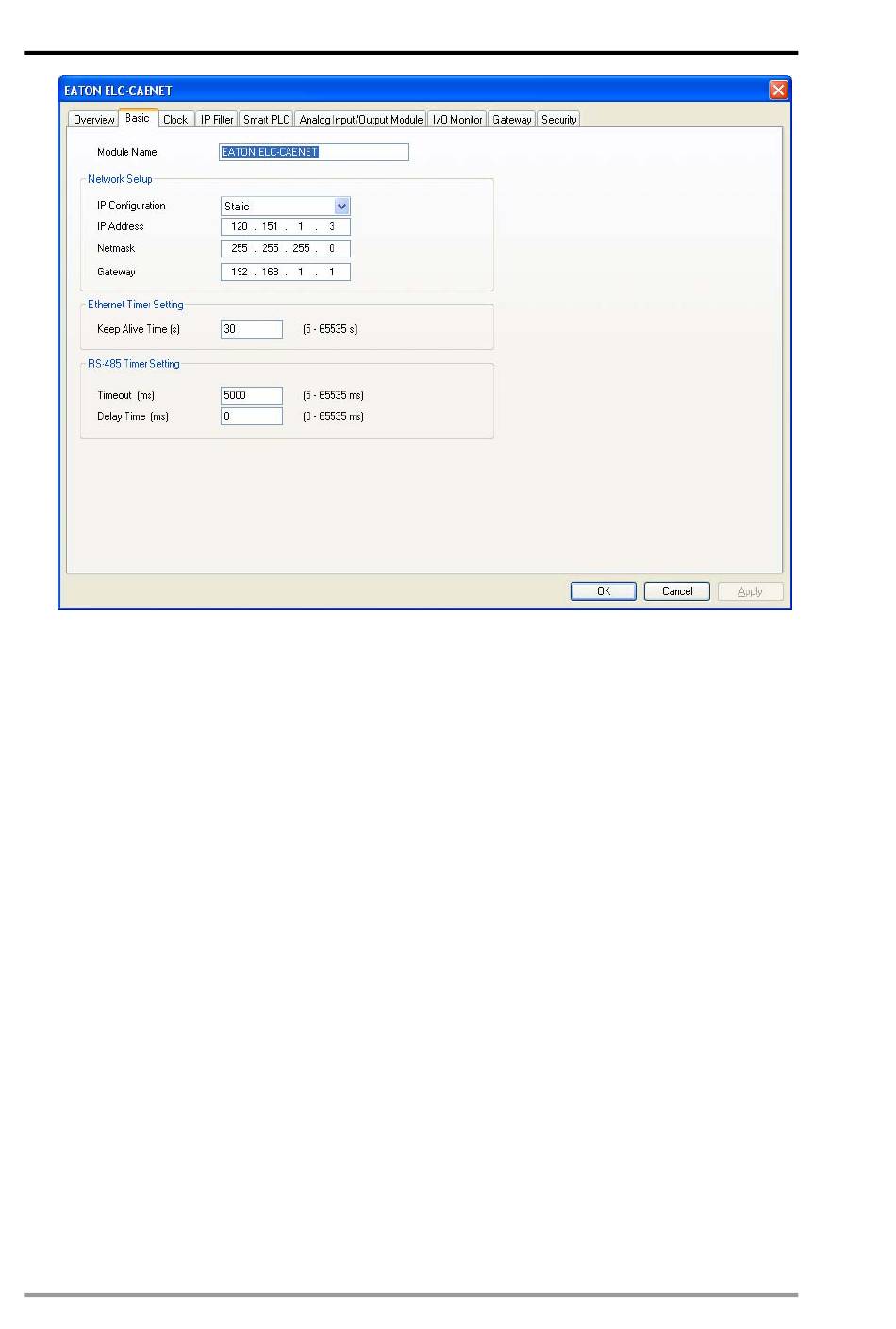

Select the Overview tab. Note that there are 40 digital inputs, 8 digital outputs and 2 analog
modules connected to the ELC-CAENET adapter. For this application, the following modules
are connected to the adapter from left to right:
ELC-EX08NNSN 8 input switch module
ELC-EX08NNSN 8 input switch module
ELC-EX08NNSN 8 input switch module
ELC-EX08NNSN 8 input switch module
ELC-AN06AANN 4 input, 2 output analog module
ELC-AN04ANNN 4 input analog module
ELC-EX16NNDR 8 input, 8 output digital combo I/O module
There are a total of 40 digital inputs, 8 digital outputs and 2 analog modules, matching the totals
shown on the adapter module's configuration pages (Overview tab) above.
Next we need to map the analog I/O data for each of the analog modules connected to the
adapter. Each analog module contains many data words. Only those that are necessary should
be mapped. Click the Analog Input/Output Module tab and the following page will be displayed:
