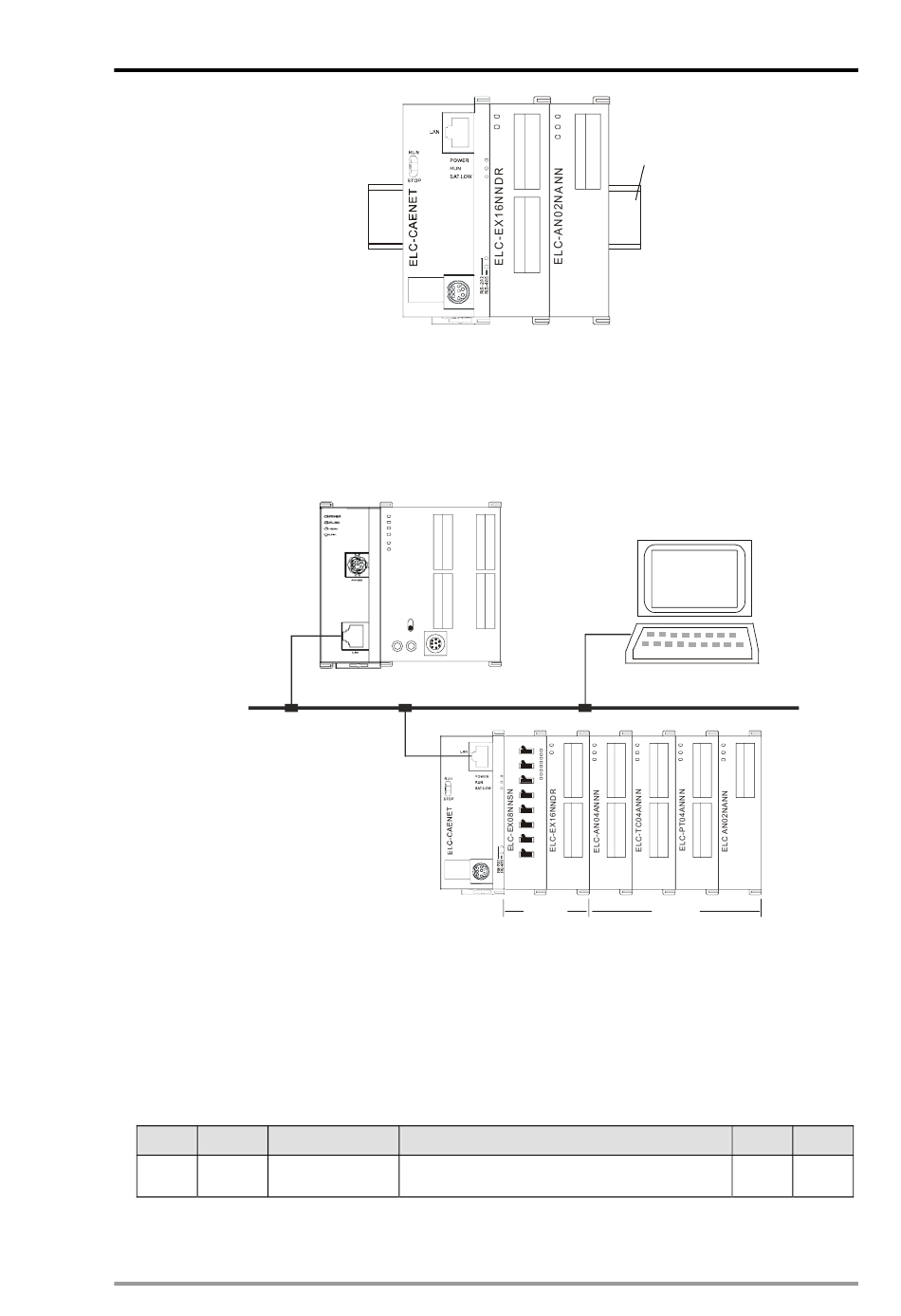

4.4.3 How to Connect the ELC-CAENET to the Local Area Network

Connect ELC-CAENET to the Ethernet switch using CAT-5e twisted pair cable. Since the

ELC-CAENET has Auto MDI/MDIX functionality, a cross over cable is not requried to connect

directly to a PC. See below for the connection between the PC and ELC-CAENET modules:

ELC-COENETM

Internal data structure for the ELC-CAENET

4.5

This section describes the internal data structure for the ELC-CAENET module. These data

elements can be accessed from Modbus TCP, EtherNet/IP and the local logic features

described in later sections of this manual

4.5.1

Basic Registers (BR)

BR#

Attribute

Model name

MN05002003E

ELC-PV28

ELC-COENETM

ELC-PV28

RUN

STOP

Ethernet

ELC-CAENET

Content

Set up by the system; read only. The model

code of ELC-CAENET= H'0600.

For More Information visit: www.eaton.com

ELC Distributed I/O Adapters

35mm DIN rail

COM2

DI/DO

Explanation

AI/AO

Default Latched

H'0600

YES
