Manual
07/12 MN04902002Z-EN
easy800-BLT-ADP
Bluetooth adapter

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the easy800-BLT-ADP and is the answer not in the manual?

Questions and answers

Related Manuals for Eaton easy800-BLT-ADP

Summary of Contents for Eaton easy800-BLT-ADP

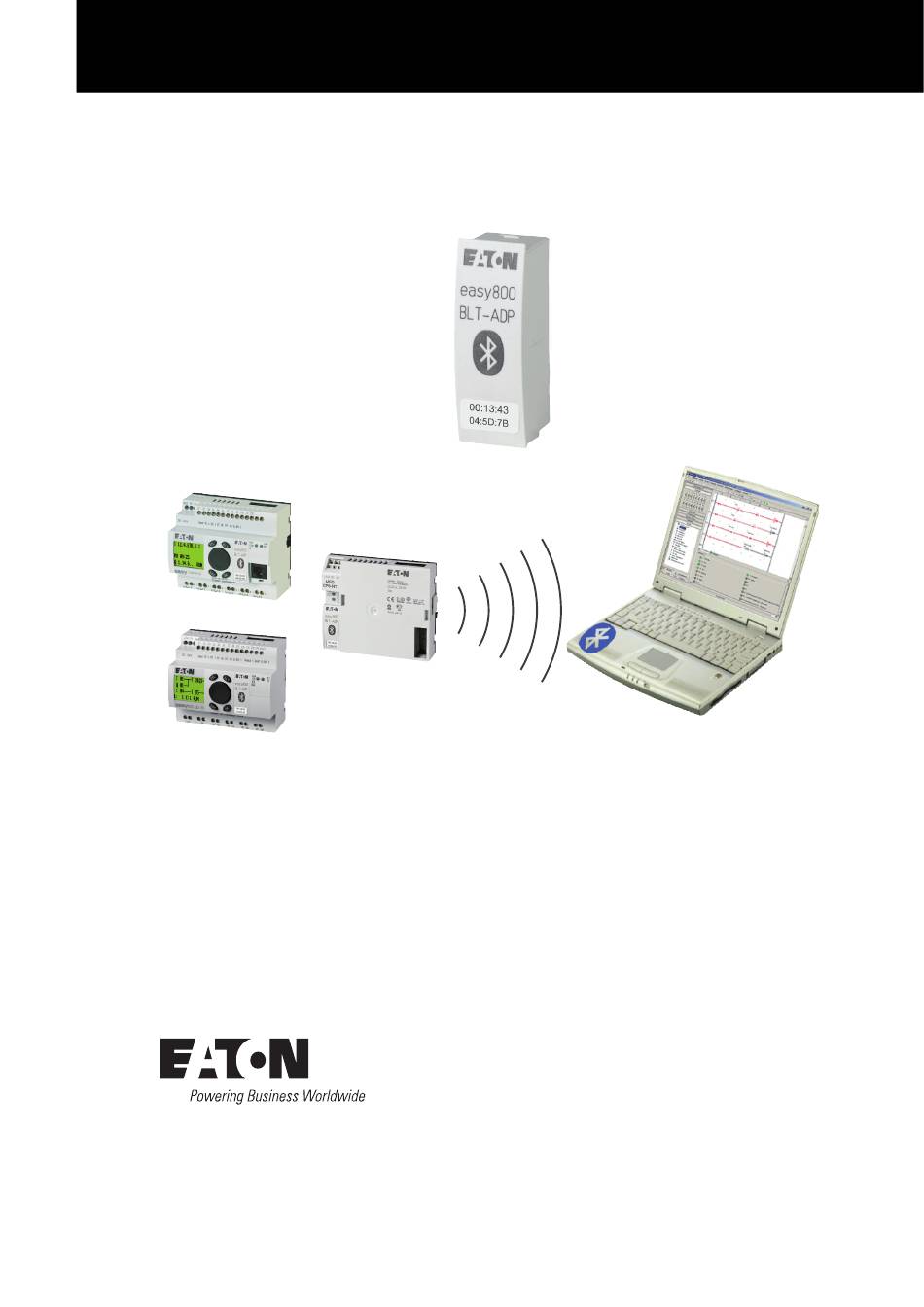

  • Page 1 Manual 07/12 MN04902002Z-EN easy800-BLT-ADP Bluetooth adapter...
  • Page 2 No part of this manual may be reproduced in any form (printed, photocopy, microfilm or any other process) or processed, duplicated or distributed by means of electronic systems without written permission of Eaton Industries GmbH, Bonn. Subject to alteration without notice.
  • Page 3 Danger! Dangerous electrical voltage! Before commencing the installation • Disconnect the power supply of the device. • Ensure a reliable electrical isolation of the low voltage for the 24 volt supply. Only use power supply units complying • Ensure that devices cannot be accidentally restarted. with IEC 60364-4-41 (VDE 0100 Part 410) or HD 384.4.41 S2.

  • Page 5: Table Of Contents

    Activating the Bluetooth connection with the device ....15 What Happens If …? ..............17 Appendix..................19 Approvals and certifications ............19 Dimensions .................. 19 Technical Data................20 5.3.1 Standards ..................20 5.3.2 General ambient conditions ............20 easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
  • Page 6 Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...

  • Page 7: About This Manual

    0 About this Manual 0.1 Target group 0 About this Manual This manual explains how to install and commission the easy800-BLT-ADP Bluetooth adapter. The current edition of this manual in other languages can be obtained from the Internet ￫ Support http://www.eaton.com/moeller...

  • Page 8: Device Designations And Abbreviations

    The following terms are used for the device types if the description applies to all these types: • easy800-Standard for • EASY819-…, • EASY820-…, • EASY821-…, • EASY822-… • MFD for • MFD-CP8-ME • MFD-CP8-NT • MFD-CP10-ME • MFD-CP10-NT • EC4P for • EC4P-221-... • EC4P-222-... easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...

  • Page 9: Writing Conventions

    Warns of hazardous situations that result in serious injury or death. For greater clarity, the name of the current chapter and the name of the cur- rent section are shown at the top of each page. easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
  • Page 10 0 About this Manual 0.4 Writing conventions easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...

  • Page 11: Easy800-Blt-Adp

    8-digit PIN code on the back 1.3 Overview of functions The easy800-BLT-ADP Bluetooth adapter is active as soon as he is plugged in the device and the device is switched on. In cyclic periods a connection request is checked.

  • Page 12: Designation

    1 easy800-BLT-ADP 1.5 Designation 1.5 Designation The easy800-BLT-ADP Bluetooth adapter has a 12-character MAC (Media Access Control) address. This MAC address serves to uniquely identify the Bluetooth adapter. It is located on a label found on the front of the Bluetooth adapter.

  • Page 13: A Single Bluetooth Adapter - Multiple Computers

    A Bluetooth adapter is connected to four computers, although only one connection can be active at a time. The Bluetooth adapter‘s ring buffer holds the authentication keys for the four computers: Code_1 to Code_4. easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
  • Page 14 1 easy800-BLT-ADP 1.7 Connection configurations easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...

  • Page 15: Installation

    2 Installation 2.1 Plugging in the Bluetooth adapter 2 Installation The easy800-BLT-ADP Bluetooth adapter can be installed in the following DC and AC devices: • easy800 standard, • EC4P, • MFD-CP8-NT/ME, • MFD-CP10-NT/ME from device version 03-xxxxxxxxxxxx. 2.1 Plugging in the Bluetooth adapter...
  • Page 16 Bluetooth connection. Doing so may result in corrupted data. Follow the steps below in order to remove the Bluetooth adapter: ▶ Unplug the Bluetooth adapter from the serial interface. ▶ Place the protective cap over the device‘s serial interface. easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...

  • Page 17: Commissioning

    3.1 Prerequisites 3 Commissioning Once the easy800-BLT-ADP Bluetooth adapter is installed, it must be recog- nized the first time the computer‘s operating system is started. The operat- ing system will assign a COM interface to the wireless connection. This con- nection will be set up once only.
  • Page 18 The dialog box will show any new devices, as well as devices that have not yet been added, that the computer finds. The easy800-BLT-ADP Bluetooth adapter will appear as EASY800-BLT-ADP+<6 key characters in the MAC address>. Example: A Bluetooth adapter with a MAC address of 00:13:43:04:5D:7B will be shown as EASY800-BLT-ADP-04:5D:7B.

  • Page 19: Activating The Bluetooth Connection With The Device

    If you start communications without previously selecting a device, the following dialog box will ask you to specify the device family of the con- trol relay on which the Bluetooth adapter is installed. In our example, you would choose “EASY 800 devices“. easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
  • Page 20 ▶ Click the Online button. A connection will be established between easySoft-Pro and the device with the Bluetooth adapter. You will now be able to perform all online operation functions via this Bluetooth connection. easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...

  • Page 21: What Happens If

    The computer's Bluetooth adapter is Follow the manufacturer's documenta- turned off. tion to enable Bluetooth wireless connections or to enable the plug-in Bluetooth adapter. The easy800-BLT-ADP adapter is defec- Contact your local representative or the “ “ tive. After-Sales Service Eaton Hotline.
  • Page 22 4 What Happens If …? easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...

  • Page 23: Appendix

    5 Appendix 5.1 Approvals and certifications 5 Appendix 5.1 Approvals and certifications easy800-BLT-ADP are approved for use in several countries and regions. Product standards • IEC/EN ￫ Section “5.3.1 Standards”, page 20 • UL 508 (INDUSTRIAL CONTROL EQUIPMENT) • CE-mark...

  • Page 24: Technical Data

    IEC EN 61000-4-3 Air discharge Contact discharge Electromagnetic fields (RFI), to IEC EN 61000-4-3 0.8 - 1.0 GHz 1.4 - 2 GHz 2.0 - 2.7 GHz Radio interference suppression EN 55011 Class B easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
  • Page 25 Bluetooth module used PAN1321 SPP, ENW89811K4CF Transmitting power, norm. 4 dBm (2.5 mW), classe 2 Transission mode PIN code-based secure connection Baud rate 57600 Line-of-sight range approx. 10 Number of computers that can be connected easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
  • Page 26 5 Appendix 5.3 Technical Data easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
  • Page 27 ....... . 20 Support (Eaton Industries GmbH) ... . . 3 easy800-BLT-ADP Bluetooth adapter 07/12 MN04902002Z-EN www.eaton.com...
