Quick Start Instructions
ConnectUPS-E Models
Package Contents
®
t

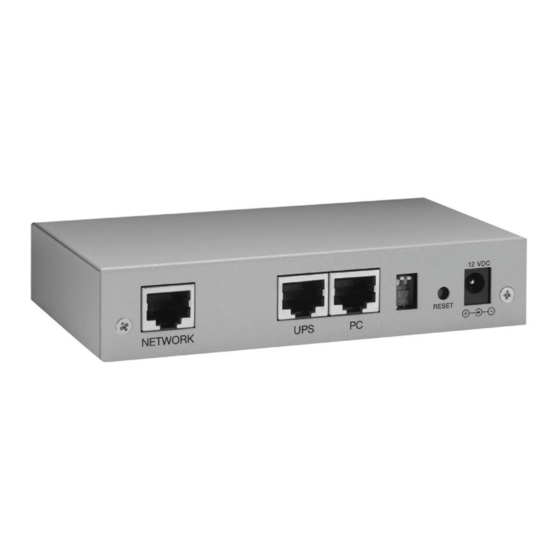

S Powerware ConnectUPS
Web/SNMP Adapter
S Male DB-9 to RJ-45 Serial Cable with Detachable DC Power Cable
S Female DB-9 to RJ-45 Serial Cable (labeled "PC")
S External Power Supply with Detachable Power Cord
S Software Suite CD with User Guide PDF
S Quick Start Instructions
S Ethernet Cable
Advertisement
Related Manuals for Eaton Powerware 9305 UPS
Summary of Contents for Eaton Powerware 9305 UPS
- Page 1 Quick Start Instructions ConnectUPS-E Models Package Contents ® S Powerware ConnectUPS Web/SNMP Adapter S Male DB-9 to RJ-45 Serial Cable with Detachable DC Power Cable S Female DB-9 to RJ-45 Serial Cable (labeled “PC”) S External Power Supply with Detachable Power Cord S Software Suite CD with User Guide PDF S Quick Start Instructions S Ethernet Cable...
- Page 2 Checklist Verify that all of the following items are available: J ConnectUPS Web/SNMP Adapter package contents (see front cover) J Phillips screwdriver J Microsoft Windows operating system (for other operating systems, see the help file on the Software Suite CD) J Available serial port (RS-232) J HyperTerminal (ships with Windows) or equivalent...
- Page 3 Unlabeled cable to UPS communication port X100 and ConnectUPS-E UPS port (20–80 kVA) To LAN port Figure 3. Installing the ConnectUPS-E with a Powerware 9305 UPS ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A...
- Page 4 Cable labeled “PC” to UPS communication port X100 and ConnectUPS-E UPS port (20–80 kVA) To LAN port Figure 4. Alternate Installation with a Powerware 9305 UPS ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A...
- Page 5 UPS-protected receptacle Female Male Unlabeled cable to UPS communication port and ConnectUPS-E UPS port To LAN port Figure 7. Installing the ConnectUPS-E with a Powerware 9150 UPS ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A...
- Page 6 UPS-protected receptacle Female Male Cable labeled “PC” to UPS communication port and ConnectUPS-E UPS port To LAN port Figure 8. Alternate Installation with a Powerware 9150 UPS ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A...
-
Page 7: Connect The Adapter
Set the serial line to 9600 baud, No parity, 8 data bits, 1 stop bit, and no flow control (see Figure 10). Verify that the UPS is turned on. Figure 10. Configure Port Settings ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A... - Page 8 Verify that the adapter has power (one or more LEDs on the adapter are illuminated). The UPS should be turned Type your password (the default is admin) and press Enter. The Main Menu screen appears. ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A...
-
Page 9: Configure The Adapter
The menus are identical to those seen during serial configuration and are password-protected for Superuser access only. Figure 15. ConnectUPS Adapter Summary Page ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A... - Page 10 Type the IP Address of the adapter and select Select the correct UPS load segment that your computer’s power cord is plugged into and select (see Figure 19). Figure 19. Select UPS Load Segment ® EATON Powerware ConnectUPSt Web/SNMP Adapter (E Model) Quick Start Instructions 164950186 Rev A...
- Page 11 Figure 22. Verify Configuration Settings Figure 23. Clear Communication Message Powerware, LanSafe, and PowerVision are registered trademarks and ConnectUPS is a trademark of Eaton Power Quality Corporation. Microsoft and Windows are registered trademarks of Microsoft Corporation. HyperTerminal is a registered trademark of Hilgraeve.
- Page 12 HELP DESK NUMBERS: UNITED STATES ALL OTHER COUNTRIES 1.800.356.5737 Call your local sales representative or 919.870.3149 CANADA 1.800.461.9166 ext. 260 www.powerware.com © 2006 Eaton Corporation All Rights Reserved 164950186 Rev A...
