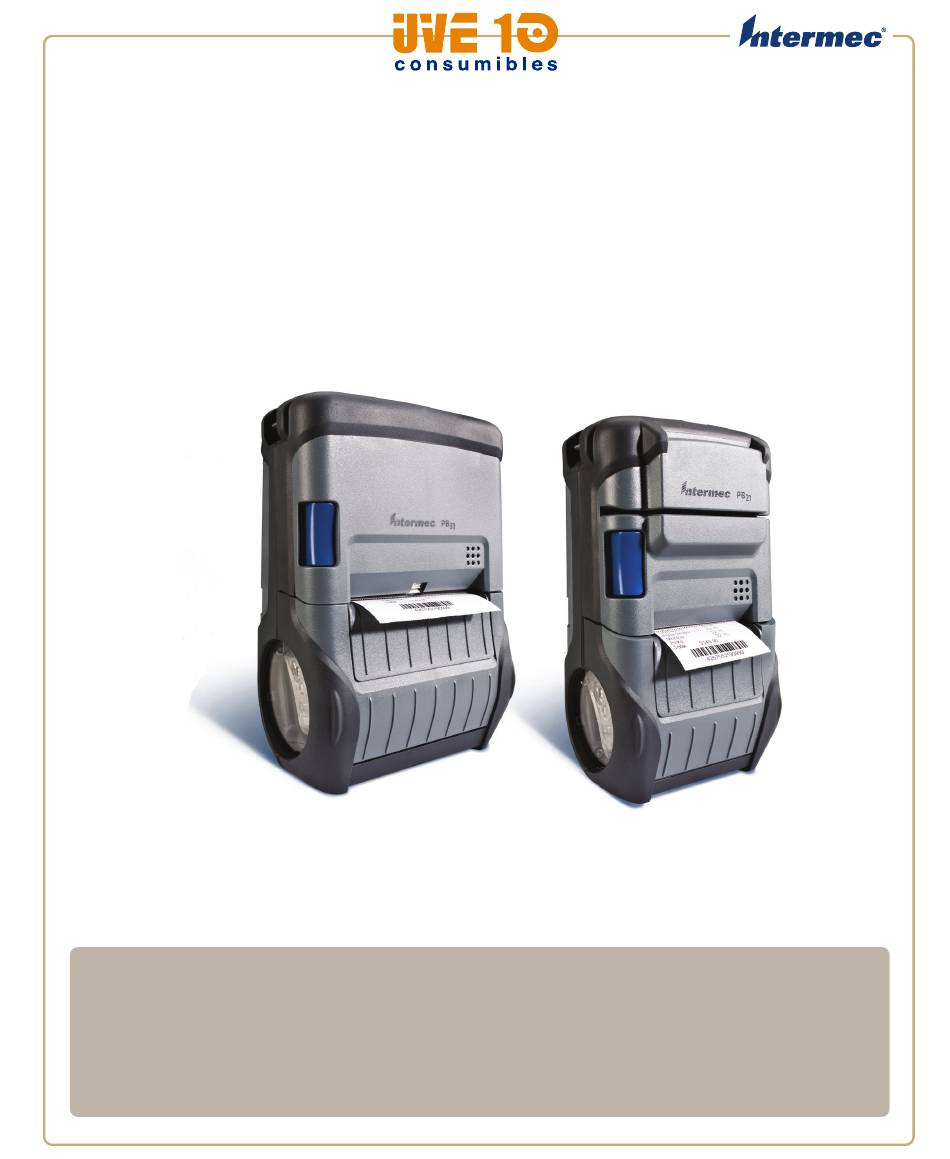

PB 21 | PB 31
Mobile Receipt Printer
User Guide
V10 CONSUMIBLES S.L.
Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UVE 10 PB21 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intermec UVE 10 PB21

Summary of Contents for Intermec UVE 10 PB21

  • Page 1 PB 21 | PB 31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...
  • Page 2 Lynnwood, WA 98087 The information contained herein is provided solely for the purpose of allowing customers to operate and service Intermec-manufactured equipment and is not to be released, reproduced, or used for any other purpose without written permission of Intermec Inc.
  • Page 3 Document Change Record This page records changes to this document. The document was originally released as Revision 001. Version Number Date Description of Change 3/2016 Updated the printer voltage specification. Included information to support the new radio: • Added the topic “Determining Which Radio Is Installed in Your Printer”...
  • Page 4 PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 5: Table Of Contents

    Contents Contents Before You Begin..............ix Safety Information .
  • Page 6 Contents Configuring the PB21 and PB31 ........27 Connecting the Printer to Your PC .
  • Page 7 Contents Specifications ............57 Specifications.
  • Page 8 Contents viii PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 9: Before You Begin

    Safety Information Your safety is extremely important. Read and follow all warnings and cautions in this document before handling and operating Intermec equipment. You can be seriously injured, and equipment and data can be damaged if you do not follow the safety warnings and cautions.

  • Page 10: Warranty Information

    Before You Begin For our latest contact information, see www.honeywellaidc.com/ locations. Warranty Information To understand the warranty for your Honeywell product, visit the Honeywell website at www.honeywellaidc.com and click Resources > Warranty. Product Service and Repair Honeywell International Inc. provides service for all of its products through service centers throughout the world.

  • Page 11: Using The Pb21 And Pb31 Mobile Receipt Printer

    Using the PB21 and PB31 Mobile Receipt Printer Use this chapter to familiarize yourself with the PB21 and PB31 mobile receipt printer. This chapter contains these sections: • Introducing the PB21 and PB31 Mobile Receipt Printers • Using the Batteries •...

  • Page 12: Introducing The Pb21 And Pb31 Mobile Receipt Printers

    Printers The PB21 and PB31 are rugged mobile receipt printers that are designed for use with Intermec mobile computers, Intermec vehicle mount computers, and SF51 and SR61 scanners. The PB21 uses 50.8 mm (2 in) media and the PB31 uses 76.2 mm (3 in) media.

  • Page 13: Identifying The Parts Of The Printer

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Identifying the Parts of the Printer Use this illustration to familiarize yourself with some of the features of the printer. Smart card reader Media cover release button Ready-to-Work indicator Feed button Magnetic stripe reader...
  • Page 14 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer How to Use the PB21 and PB31 Buttons Name Button Function Feed Press to advance the media. The amount of media that feeds is dependent on the type of media you are using. It will advance by 5 mm (0.2 inch), or feed a configured length of media based on your media and settings.
  • Page 15 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Understanding the Soft Keys Button Soft Keys Description • Moves up one level in the menu system. This soft key appears in Setup mode. • Increases the value of a number when editing settings such as an IP address.

  • Page 16: Understanding The Printer Language

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Understanding the Printer Language Your printer comes with Intermec Printer Language (IPL), Fingerprint, ESC/P, ZSim, and the ability to run any of the printer command languages. The language you select affects the functionality of the printer and how you interact with it.

  • Page 17: Changing The Printer Language

    1 Connect your printer to your PC using a serial cable. For help, see “Connecting the Printer Through the Serial Port” on page 2 Start PrintSet. The Intermec PrintSet dialog box appears. 3 Under My Printers, click the printer you want to work with.
  • Page 18 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer To change the printer language using ESC/P and a communications program 1 Connect your printer to your PC using a serial cable. For help, see “Connecting the Printer Through the Serial Port” on page 2 Start a communications program like HyperTerminal.

  • Page 19: Understanding The Printer Sounds

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer 7 Press to select the language. 8 Cold boot the printer: a Remove the printer battery. b Replace the printer battery. c Turn the printer on. To change the printer language using the display and ESC/P 1 Make sure the printer is in Ready mode.

  • Page 20: Understanding The Backlight

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Understanding the Printer Sounds (continued) Sound Occurs When: • Error The printer cannot feed paper or print a job because of a hardware issue such as the media door open, a paper jam, or there is no media.

  • Page 21: Installing The Battery

    Amount of data printed for each label • Threshold at which you configure the low battery warning Use Intermec Model AB27 battery only. Use of another battery may present a risk of fire or explosion. The Model AB27 battery may present a fire or chemical burn hazard if mistreated.

  • Page 22: Charging The Batteries

    3 hours to charge while it is installed in the printer. To charge the battery inside the printer, you need: • an Intermec 12 VDC power supply (Model AE19). • an AC power cord. To charge the battery inside the printer 1 Install the battery in the printer.

  • Page 23: Understanding The Battery Icons

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Understanding the Battery Icons The easiest way to tell the status of your battery is to look at the battery icons on the control panel of the printer. Battery Icon Status Icon Status Battery is fully charged.

  • Page 24: Loading Media

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer • Do not operate the printer when the ambient temperature is -20 °C (-4 °F) or below. Using the printer in temperatures below freezing reduces the overall battery life. Note: Rechargeable batteries lose their ability to maintain a charge over time.
  • Page 25 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer 2 Insert a roll of media. Make sure you load the media clockwise so that it pulls off the core from the bottom of the printer. 3 Pull out 8 cm (3 in) of the media, and then close the media cover. 4 Press the Feed button to advance the media.

  • Page 26: Using The Card Readers

    1 Enable encryption in the data collection application. Note: The applications used to read card information must be certified. Work with a third-party partner to create a certified application. Or, download one of the Intermec Developer Library Resource Kits from www.intermec.com/idl, and then search the developers forum (www.intermec.com/support/developers...

  • Page 27: Using The Smart Card Reader

    To use the smart card reader 1 Set up a wireless connection between your printer and your Intermec mobile computer. For help, see “Connecting the Printer to Your Network” on page 2 On your mobile computer, start an application that can read smart card information.
  • Page 28 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer 3 Orient the smart card with the chip facing the printer. smart card chip 4 Insert the card into the smart card reader. PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L.

  • Page 29: Understanding The Display Modes

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Understanding the Display Modes The printer has six display modes to help you effectively interact with the printer: Ready, Information, Pause, Setup, Error, and Test. Understanding Ready Mode The printer is in Ready mode when the printer is on and ready to print.

  • Page 30: Understanding Pause Mode

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Understanding Pause Mode Use Pause mode to momentarily stop printing or to cancel a current print job. When you pause the printer, the Pause mode screen appears. Use the Feed button to both pause and resume printing. PAUSE PAUSE CANCEL...
  • Page 31 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer To enter or exit Setup mode Press the Setup button. • After you enter Setup mode, there are two editing modes: normal and enhanced. Editing Settings in Setup Mode Editing Mode To Navigate To Accept Value...

  • Page 32: Understanding Error Mode

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Understanding Error Mode The printer enters Error mode when it detects an error condition such as a low battery or a paper fault. Some error messages appear on the screen immediately when they occur, such as DOOR OPEN.
  • Page 33 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer 3 Release both buttons. The printer performs a test feed (sensor calibration), prints, and then enters Dump mode. The printer is now in Dump mode and it scans the communication ports.

  • Page 34: Changing Configuration Settings From The Display

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer Options in Extended Test Mode Function Description Select Media This option is almost the same as the process in Test mode, except that the printer performs a slow test feed in Extended Test mode.
  • Page 35 Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer The Main Levels of the Setup Menu in Fingerprint The Main Levels of the Setup Menu in IPL ESC/P supports six types of setup commands: • Bluetooth: set Bluetooth parameters •...

  • Page 36: Printing A Test Page

    Chapter 1 — Using the PB21 and PB31 Mobile Receipt Printer • Query: retrieve information about the printer or a print request, cancel printing, or reset the printer Wi-Fi: set Wi-Fi parameters • Printing a Test Page After you have loaded media in the printer, you are ready to print a test page.

  • Page 37: Configuring The Pb21 And Pb31

    Configuring the PB21 and PB31 This chapter contains these sections: • Connecting the Printer to Your PC • Connecting the Printer to Your Network • Configuring the Printer Settings Downloading Fonts and Graphics • V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 38: Connecting The Printer To Your Pc

    1 Run InterDriver. 2 The File Download - Security Warning screen appears. Click Run to run the executable. 3 The Intermec End User License Agreement appears. Read the agreement and select the radio button to accept the agreement, and then click Next.

  • Page 39: Connecting The Printer Through The Serial Port

    Chapter 2 — Configuring the PB21 and PB31 8 On the Hardware Installation warning screen, click Continue Anyway. 9 Click Finish to exit the New Hardware Wizard. InterDriver files are now installed on your computer. 10 Connect the USB cable to the connector on the back of the printer and connect the other end to your PC.
  • Page 40 Chapter 2 — Configuring the PB21 and PB31 7 PrintSet attempts to connect to your printer. If it cannot find your printer, click Back to review the communication settings, and then try again. When PrintSet connects to your printer, click Next. 8 Click Finish.

  • Page 41: Connecting The Printer To Your Network

    The printer cannot initiate a Bluetooth connection. One of the devices must request a connection with the printer. The printer then accepts or rejects the connection. Use Intermec Settings on the mobile computer to enable the Bluetooth settings on the printer.
  • Page 42 Chapter 2 — Configuring the PB21 and PB31 Each printer equipped with a Bluetooth radio has a unique Bluetooth Device Address (BDA) loaded into its module when manufactured. You can find the BDA on the certification label located on the bottom of the printer.

  • Page 43: Setting Up 802.11 Radio Communications

    Chapter 2 — Configuring the PB21 and PB31 Setting Up 802.11 Radio Communications The printer can have an internal 802.11 a/b/g radio to transfer and receive data using wireless communications. This manual assumes that you have already set up your wireless communications network including your access points.

  • Page 44: Setting Up The Printer For Wireless Communications Using Printset

    Chapter 2 — Configuring the PB21 and PB31 Setting Up the Printer for Wireless Communications Using PrintSet Use the PrintSet configuratio application to set up wireless communications on your printer. To set up the printer for wireless communications using PrintSet 1 Connect the printer to your PC using PrintSet.

  • Page 45: Changing Wi-Fi Configuration Settings From Printset

    Changing Wi-Fi Configuration Settings from PrintSet PrintSet is a printer configuration tool that you can download from the Intermec website. PrintSet can communicate with your printer through a serial cable or a network connection. It works on all PCs running Windows 98 (or later). PrintSet allows you to easily change all of the setup parameters.

  • Page 46: Changing Configuration Settings Using Smartsystems

    You can use the SmartSystems console to change configuration settings on your printer. The printer ships with the SmartSystems client loaded on it. The console is part of SmartSystems and is available from the Intermec website. To download SmartSystems, go to www.intermec.com/products/smrtsysfoundation/index.aspx. Upgrading the Firmware The latest firmware and software is available for download from the Intermec website at www.intermec.com.

  • Page 47: Upgrading The Printer Firmware Using Printset

    “Connecting the Printer Through the Serial Port” on page 3 Download the firmware upgrade file (.bin) to your PC: a Go to www.intermec.com. b Click Support > Downloads. c Use the Product Category, Product Family, and Product fields, to select the printer model.

  • Page 48: Upgrading The Printer Firmware Using The Printer Home Page

    Chapter 2 — Configuring the PB21 and PB31 4 Start PrintSet. The Intermec PrintSet dialog box appears. 5 Under My Printers, click the printer whose firmware you want to upgrade. 6 Under Printer Tasks in the right-hand column, click Firmware Wizard.
  • Page 49 3 Download the firmware (.bin) file you want to upgrade to a location on your PC: a Go to www.intermec.com. b Click Support > Downloads. c Use the Product Category, Product Family, and Product fields, to select the printer model.
  • Page 50 Chapter 2 — Configuring the PB21 and PB31 6 In the address field type the IP address of your printer and press Enter. 7 Click Maintenance. 8 When prompted, enter your user name and password. 9 Browse to the firmware upgrade file (.bin) and select it. 10 Click Upgrade.

  • Page 51: Upgrading Printer Firmware Using Smartsystems

    You can upgrade your printer firmware using a communications program, like HyperTerminal, and a printer running either the IPL, Fingerprint or ESC/P printer language. Note: Intermec recommends using PrintSet or the printer home page to upgrade the printer firmware. For help, see “Upgrading the Printer Firmware Using PrintSet”...
  • Page 52 “Connecting the Printer Through the Serial Port” on page 2 Download the firmware upgrade file (.bin) to your PC: a Go to www.intermec.com. b Click Support > Downloads. c Use the Product Category, Product Family, and Product fields, to select the printer model.
  • Page 53 “Connecting the Printer Through the Serial Port” on page 2 Download the firmware upgrade file (.bin) to your PC: a Go to www.intermec.com. b Click Support > Downloads. c Use the Product Category, Product Family, and Product fields, to select the printer model.

  • Page 54: Downloading Fonts And Graphics

    Intermec Fingerprint Developer’s Guide, the ESC/P Programmer’s Reference Manua , or SmartSystems online help. You can download these documents from the Intermec website at www.intermec.com. PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 55: Troubleshooting And Maintaining The Pb21 And Pb31

    Troubleshooting and Maintaining the PB21 and PB31 Use this chapter to solve problems you may encounter while using the PB21 and PB31. This chapter contains these sections: • Troubleshooting the Printer • Resetting the Printer • Cleaning the Printer V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 56: Troubleshooting The Printer

    48. If you cannot find the answer to your problem, you may need to contact Product Support. Contacting Product Support Before you call Intermec Product Support, you may want to visit the Intermec technical knowledge base (Knowledge Central) at intermec.custhelp.com to review technical information or to request technical support.
  • Page 57 Chapter 3 — Troubleshooting and Maintaining the PB21 and PB31 Possible Printer Error Icons and Messages Error Icon Error Message Description Pause The print job is paused. Paper out (IPL) The printer is out of paper. Load a new roll of media.

  • Page 58: Troubleshooting Printer Problems And Finding Solutions

    Chapter 3 — Troubleshooting and Maintaining the PB21 and PB31 Possible Printer Error Icons and Messages (continued) Error Icon Error Message Description Door open The printer is not completely closed. Press down on the media cover to make sure it is latched.
  • Page 59 For help, see the see the AC18 4-Bay Battery Charger Instructions. • Contact Intermec Product Support. • The test pages do not Make sure that the blue light is not blinking. If print. it is, make sure your printer has media and that the media cover is closed.

  • Page 60: Troubleshooting Communication Problems

    “Charging the Batteries” on page • Check the quality of the media. Use only Intermec media to ensure superior print quality and product performance. • Check that the printer is set to the appropriate Constant/Factory or sensitivity number for the media you are using.

  • Page 61: Using Dump Mode In Ipl

    Chapter 3 — Troubleshooting and Maintaining the PB21 and PB31 As long as a continuous string of characters is being received, the program wraps the lines until the label is full and then starts to print another label. After each character transmission, this information prints: Page number •...

  • Page 62: Resetting The Printer

    Chapter 3 — Troubleshooting and Maintaining the PB21 and PB31 Resetting the Printer You rarely need to reset the printer, unless you are upgrading the firmware. If your printer occasionally locks up, you will want to reset it. A reset reinitializes the 802.11 radio and clears the working memory.

  • Page 63: Cleaning The Printhead

    Chapter 3 — Troubleshooting and Maintaining the PB21 and PB31 Use only the cleaning agents specified in this section. Intermec is not responsible for damage caused by any other cleaning materials used on this printer. Tear bar Paper sensor Platen roller Printhead PB21 and PB31 Mobile Receipt Printer: You need to clean these parts regularly.

  • Page 64: Cleaning The Platen Roller

    Clean the platen roller with the cleaning swab provided by Intermec (P/N AE26034). The cleaning swab is shipped with the printer and can also be purchased separately from www.intermec.com.

  • Page 65: Cleaning The Printer Media Compartment

    Chapter 3 — Troubleshooting and Maintaining the PB21 and PB31 Cleaning the Printer Media Compartment To clean the printer interior 1 Open the media cover. 2 Remove the media and ribbon. 3 Use a brush or air blow the compartment. Make sure the paper sensors are free of dust.
  • Page 66 Chapter 3 — Troubleshooting and Maintaining the PB21 and PB31 PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 67: Specifications

    Specifications V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 68: Specifications

    Appendix A — Specifications Specifications This section lists the physical and environmental specifications for the printers. PB21 Physical Dimensions Depth: 71.1 mm (2.8 in) Height: 176.4 mm (6.9 in) Width: 101.6 mm (4.0 in) Weight: 678 g (1.5 lb) with battery PB31 Physical Dimensions Depth: 81.6 mm (3.2 in)
  • Page 69 Appendix A — Specifications Print Speed and Resolution Print speed: 4 ips (100 mm/s) Resolution: 203 dpi (8 dots/mm) Print Technology Printhead: Direct thermal Maximum print width: PB21 48 mm (1.8 in) PB31 72 mm (2.8 in) Media Specifications Minimum black mark length: 3.17 mm (0.125 in) Black mark width: Full width of media Core inside diameter:...
  • Page 70 Note: A 6-inch page length is supplied in 12-inch long stacks (two 6-inch stacks of equal height with the bottom page linked). Specialty media is required for unique customer environments, including printer operating temperature extremes. Intermec recommends that you test the media in your application. Supported Media The printer supports tag and receipt media.

  • Page 71: Interfaces

    Appendix A — Specifications Interfaces This section describes the standard interfaces available on the PB21 and PB31 printers. RS-232 Serial Interface The serial adapter is an 8-pin DIN to DB9 connector that connects from the printer to your desktop PC. Serial Port Default Settings Parameter Default Setting...

  • Page 72: Usb Interface

    Ring indicator USB Interface To use the USB interface to print from a PC, you need to have the Intermec InterDriver printer driver installed on your PC. For help setting up USB communications, see “Connecting the Printer Through the USB Interface” on page...

  • Page 73: Differences In Wireless Communications Settings

    Appendix A — Specifications Differences in Wireless Communications Settings There are two 802.11 radios available for your printer. Some wireless communications settings differ depending on which radio is installed. To determine which radio is installed, see “Determining Which Radio Is Installed in Your Printer” on page Wireless Communications Settings Differences Setting Current Radio...
  • Page 74 SSID Specifies the name of the wireless Specifies the name of the wireless network. network. Default: INTERMEC When MODE is set to DIRECT, the SSID is prefixed with “DIRECT-xy” where xy are alphanumeric characters randomly generated by the Wi-Fi radio.
  • Page 75 Appendix A — Specifications Wireless Communications Settings Differences (continued) Setting Current Radio New Radio EAP_TYPE Sets the type of 802.11 network Sets the type of 802.1x network authentication on the printer: authentication on the printer: • • None OFF (default) •...

  • Page 76: Accessories

    Appendix A — Specifications Accessories You can use these accessories with the printer. To order accessories, contact your local Intermec sales representative. AB27 Battery Use the 7.4 V 2300 mAh lithium-ion battery to provide power to the printer. Power Supply (Model AE19) Provides power to the printer and the 4-bay battery charger (Model AC18).
  • Page 77 Appendix A — Specifications Intermec Cleaning Swab Use the Intermec cleaning swab (P/N AE26034) to clean the printhead and platen roller. One cleaning swab is included with the printer. You can purchase additional cleaning swabs from www.intermec.com. Cleaning Pen Use the cleaning pen (P/N 757150) to clean the printhead.
  • Page 78 Appendix A — Specifications PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 79: Default Settings

    Default Settings V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 80: Factory Default Settings (Fingerprint Printers)

    Appendix B — Default Settings Factory Default Settings (Fingerprint Printers) Factory Default Settings for Fingerprint Printers Setting Default Value Xstart Display Orientation Normal Contrast Medium Media Width Printhead width Length 1200 Test feed mode Fast Type Variable length strip Contrast Xstart Label constant Label factor...

  • Page 81: Factory Default Settings (Ipl Printers)

    Appendix B — Default Settings Factory Default Settings for Fingerprint Printers (continued) Setting Default Value Bluetooth Discoverable Enable Connectable Enable Encryption Disable Authentication Disable Reserve printer Disable Device name 1-16 characters Passcode 1234 Factory Default Settings (IPL Printers) Factory Default Settings for IPL Printers Setting Default Value Auto detect printer...

  • Page 82: Factory Default Settings (Esc/P Printers)

    Appendix B — Default Settings Factory Default Settings for IPL Printers (continued) Setting Default Value Ser-Com Baud rate 115200 Data bits Parity None Stop bits Protocol XON/XOFF Network IP selection DHCP and BOOTP IP address 0.0.0.0 Netmask 0.0.0.0 Default router 0.0.0.0 Name server 0.0.0.0...
  • Page 83 Appendix B — Default Settings Factory Default Settings for ESC/P Printers (continued) Setting Default Value Power Low battery indicator 7.4 V Sleep timer 20 sec Standby timer 30 min Bluetooth Discoverable Enable Connectable Enable Encryption Disable Authentication Disable Reserve printer Disable Device name 1-16 characters...
  • Page 84 Appendix B — Default Settings PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 85: Ipl And Fingerprint Setup Menus

    IPL and Fingerprint Setup Menus V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 86: Ipl Setup Menu

    Appendix C — IPL and Fingerprint Setup Menus IPL Setup Menu Setup SER-COM NETWORK TEST/SERVICE MEDIA CONFIGURATION POWER DISPLAY PWRUP BAUDRATE IP SELECTION TESTPRINT MEDIA TYPE LOW BATTERY ORIENTATION EMULATION DATA BITS IP ADDRESS CONFIG PAPER TYPE PRINT SPEED SLEEP TIMER CONTRAST PARITY NETMASK...

  • Page 87: Fingerprint Setup Menu

    Appendix C — IPL and Fingerprint Setup Menus Fingerprint Setup Menu Setup SER-COM NET-COM, NET1 NETWORK FEEDADJ MEDIA PRINT DEFS POWER DISPLAY BAUDRATE NEW LINE IP SELECTION STARTADJ MEDIA SIZE HEAD RESIST LOW BATTERY ORIENTATION CHAR LENGTH IP ADDRESS STOPADJ XSTART TESTPRINT SLEEP TIMER...
  • Page 88 Appendix C — IPL and Fingerprint Setup Menus PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...

  • Page 89: Index

    Index V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...
  • Page 90 Index Numerics configuration settings changing from printer home 802.11 page determining which radio is changing using the command installed line setting up communications changing with PrintSet wireless communications changing with SmartSystems settings, differences display modes AB27 battery how to change AC18 battery charger connecting to the printer using accessories...
  • Page 91 Index sounds, understanding troubleshooting problems HyperTerminal using the batteries sending printer commands using the buttons upgrading firmware Printer Home Page, upgrading viewing IPL commands firmware printer language Information mode changing using ESC/P changing using Fingerprint changing printer language changing using IPL setup commands changing using PrintSet setup menu...
  • Page 92 Index troubleshooting communication problems upgrading firmware contacting product support using HyperTerminal error messages using Printer Home Page printer problems and using PrintSet solutions USB, connecting to the printer using Dump mode in IPL using the line analyzer in Fingerprint wireless communications settings, differences PB21 and PB31 Mobile Receipt Printer User Guide V10 CONSUMIBLES S.L.
  • Page 93 V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...
  • Page 94 6001 36th Avenue West Everett, Washington 98203 U.S.A. tel 425.348.2600 fax 425.355.9551 www.intermec.com © 2013 Intermec Technologies Corporation. All rights reserved. PB21 and PB31 Mobile Receipt Printer User Guide *934-051-004* P/N 934-051-004 V10 CONSUMIBLES S.L. Calle Llanos de Jerez 18 Nave 9 Coslada https://v10consumibles.com Tel: 910 269 309...
