Configuring a VCI channel
To configure a VCI channel click on the channel box that needs to be setup, this will open a new configuration window.

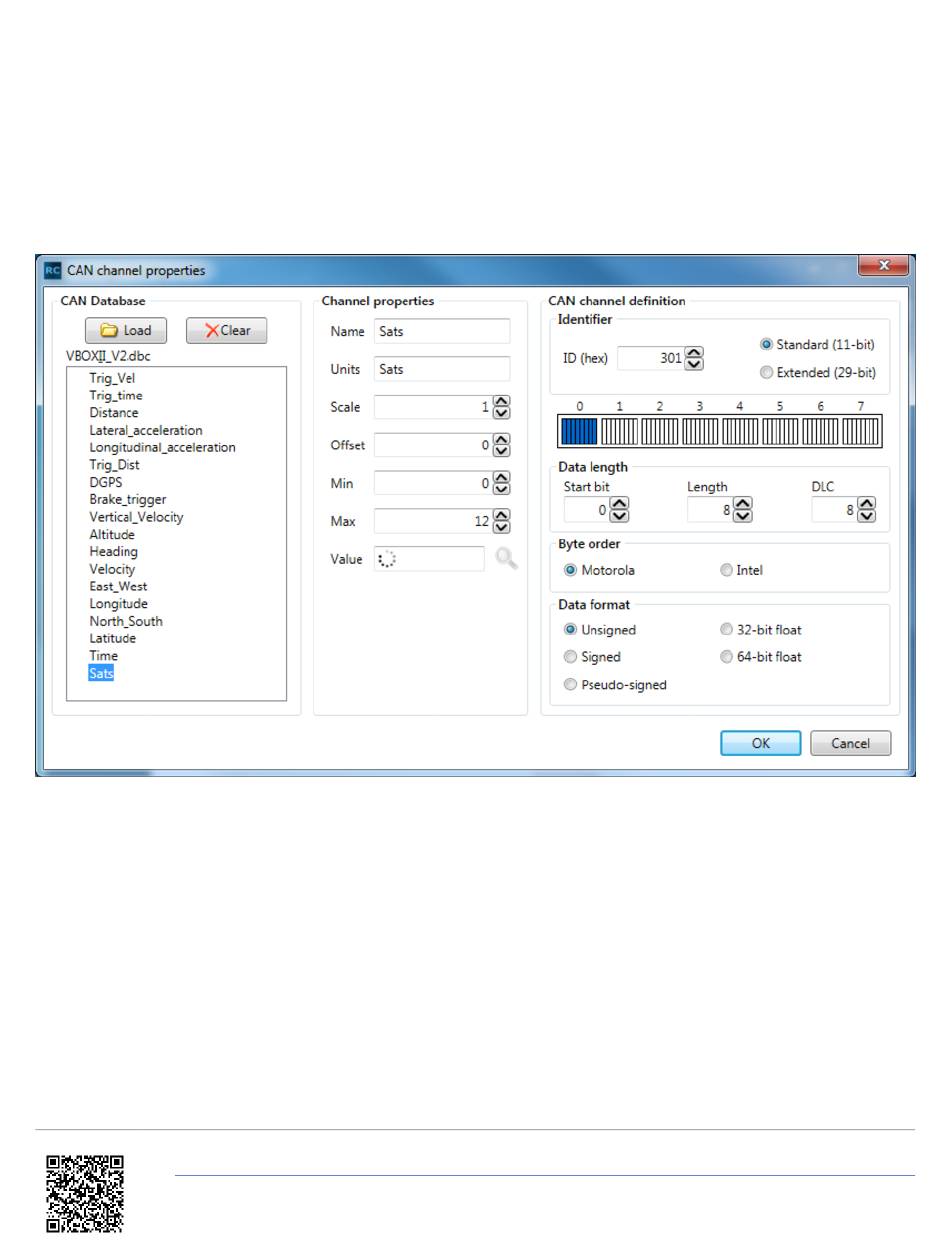

All CAN attributes for channel configuration can be manually configured from within this window, shown below.
Loading a CAN database file
Each of the 16 CAN channels can be configured from a CAN database file. From each channels setup window a CAN
database file can be loaded by clicking the 'Database' button. Clicking the 'Database' button allows a CAN database file
to be opened and then a signal from the Database can be selected. This will then automatically configure the channel
with the correct CAN settings.
DATA Base format types
• .VCI - Racelogic CAN database file
• .REF - Racelogic Encrypted database file
• .DBC - Database file
