02 - VBOX Micro Power and LEDs

The VBOX Micro can be powered from two different types of power source, via the 2 way PWR input socket.

1. Vehicle power outlet socket (via a supplied cigar lighter power cable RLCAB060)

2. Battery power, (Racelogic 2Ah Battery pack RLACS110)

You must connect the GPS antenna before connecting power to the VBOX Micro. This is necessary because on

power-up the VBOX Micro will look for a connected GPS antenna and automatically adjust its gain for optimum

performance.

See

technical specification

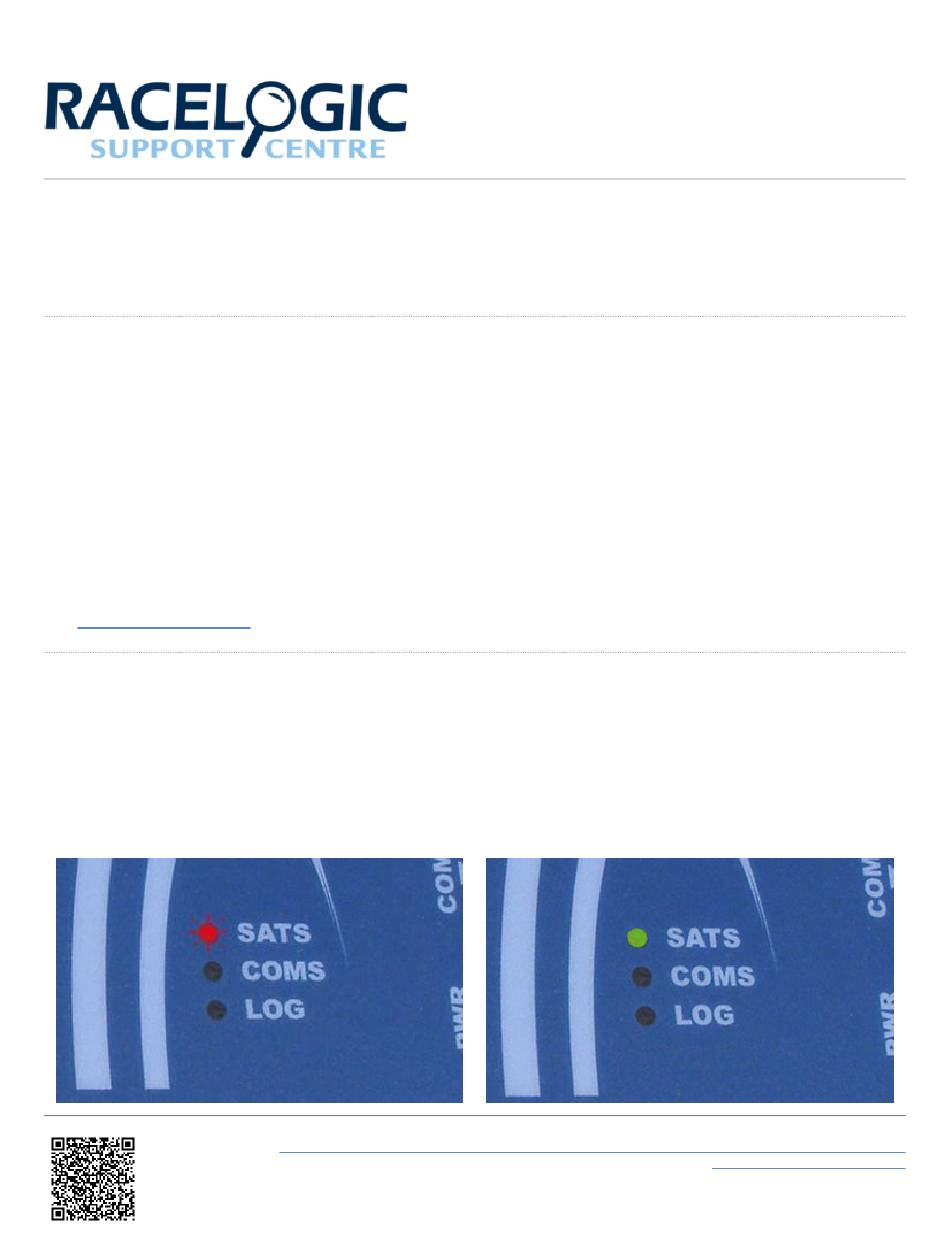

There are three LED indicators on the top panel of the VBOX Micro: SATS, COMS and LOG.

Flashing RED to indicate that satellite lock has NOT been attained, Solid GREEN light to indicate a valid satellite lock.

page for voltage input range.

https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Micro/VBOX_Micro_User_Guide/02_-

_VBOX_Micro_Power_and_LEDs

Table of Contents

Do you have a question about the VBOX Micro and is the answer not in the manual?

Page 1 02 - VBOX Micro Power and LEDs Connecting Power The VBOX Micro can be powered from two different types of power source, via the 2 way PWR input socket. 1. Vehicle power outlet socket (via a supplied cigar lighter power cable RLCAB060) 2.
Page 2 COMS Illuminates RED to indicate configuration communications via USB, Illuminates YELLOW to indicate CAN communications. Illuminates GREEN indicating data is being logged to the CF card. https://en.racelogic.support//Product_Info/VBOX_Data_Loggers/VBOX_Micro/VBOX_Micro_User_Guide/02_- _VBOX_Micro_Power_and_LEDs...
