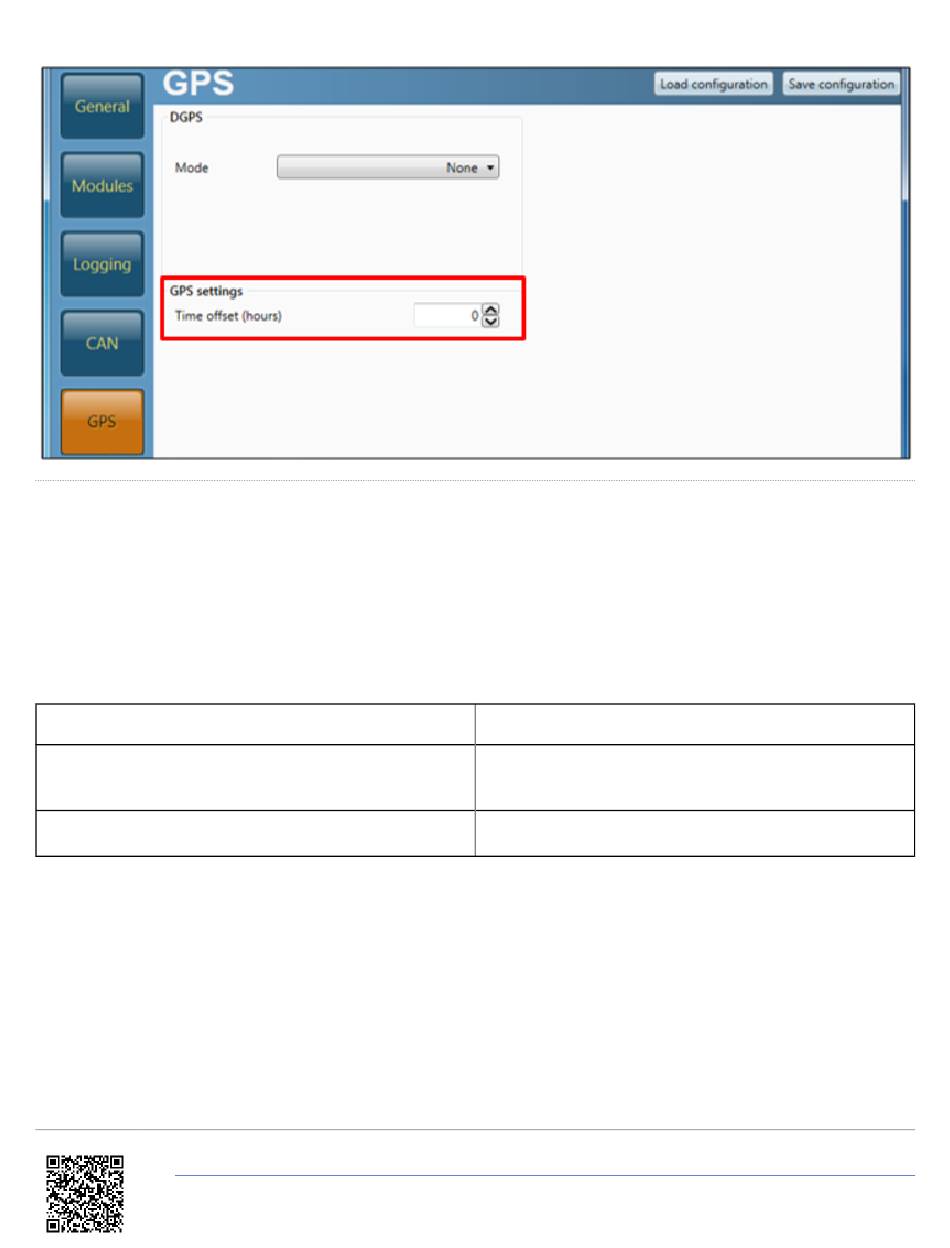

Configuring and using the VCI input
The VBOX Micro has the ability for its CAN port to be used as a 16 channel vehicle CAN interface.
NOTE: When the VBOX Micro is configured in VCI mode it is not possible to connect and log data from
Racelogic input modules.

Cables required

Description
5-way Fischer to 9 way 'D' connector (female) – 1 m
(CAN cable)
9-way 'D' connector (male) to OBDII connector – 1.2 m
Enabling VCI Mode
• Connect the VBOX Micro to the computer via the USB cable
• Run VBOX Setup.
• Select the appropriate COM port.
• Click on the CAN tab to display the CAN page.
• Select the 'Enable VCI' option.
The screen shot below displays the CAN page when the VCI is enabled. Displayed are the 16 CAN channels, which in
https://racelogic.support//01VBOX_data_loggers/VBOX_Micro/VBOX_Micro_-_User_manual/05_-_VBOX_Micro_Configuration
Product Code
RLCAB019F
RLVBCAB20
