How to reinstall the front guide (CE5000-120)

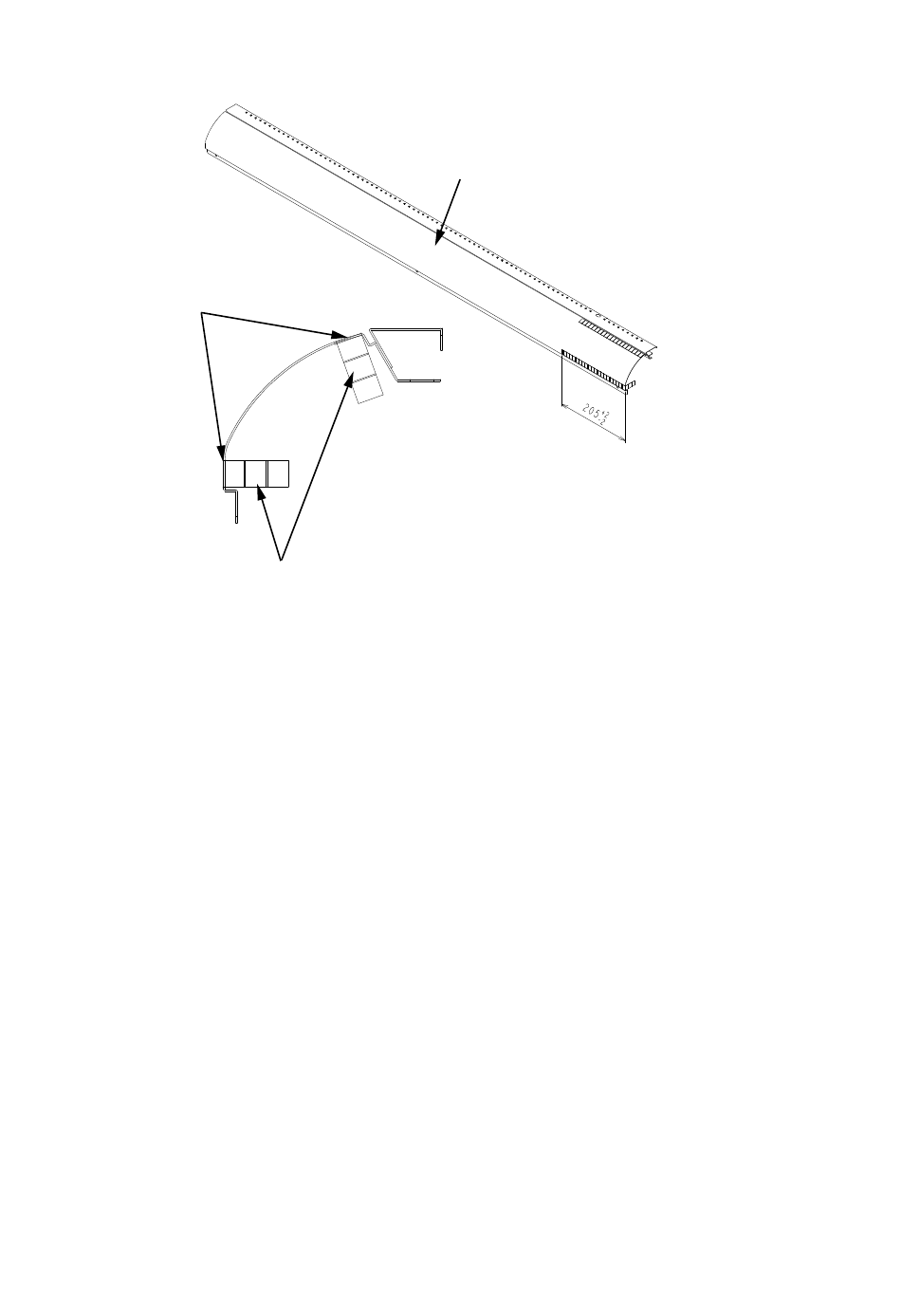

(1) Have ready two 250 mm-long measuring tapes when you replace the front guide.
Fold back a 30-mm length of tape at this edge.
Make sure that a thick line is right on the edge.
(2) Clean the surface of the front guide 120 with alcohol at the locations where the measuring tapes will be
affixed.
(3) Affix the measuring tapes as shown in the above figure.
CE5000-UM-251-9370
Measuring tape
6 DISASSEMBLY AND REASSEMBLY
Front guide 120
Affix approx. 205 mm of the tape here, and
fold back the rest of the tape to the inside of the guide.
6-6
