6.1.5 How to Replace the Front Guide (CE5000-40/60)

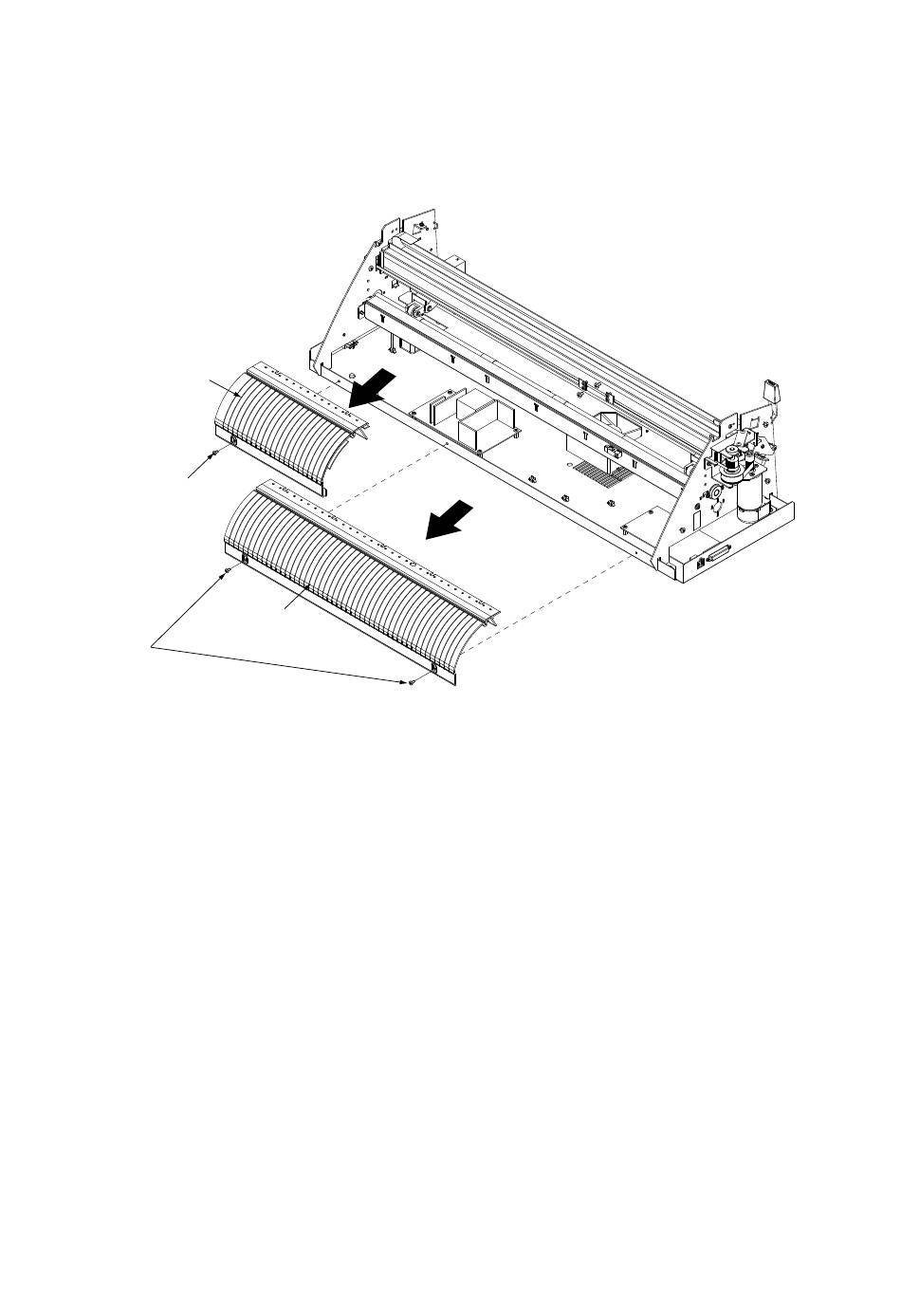

How to detach the front guide (CE5000-60)
(1) Remove the two M3L6 binding head screws from front guide 40.
(2) Remove the M3L6 binding head screw from front guide 60.
(3) Pull out the front guides to the front.
Front guide 60
M3L6 binding
head screw
M3L6 binding
head screw
How to detach the front guide (CE5000-40)
(1) Remove the two M3L6 binding head screws from front guide 40.
(2) Pull out the front guide to the front.
How to reinstall the front guide (CE5000-60)
(1) Install front guide 60 and fasten the one M3L6 binding head screw.
(2) Install front guide 40 and fasten the two M3L6 binding head screws.
How to reinstall the front guide (CE5000-40)
(1) Install front guide 40 and fasten the two M3L6 binding head screws.
CE5000-UM-251-9370
Front guide 40
6
DISASSEMBLY AND REASSEMBLY
6-4
