2 PARTS NAMES and FUNCTIONS

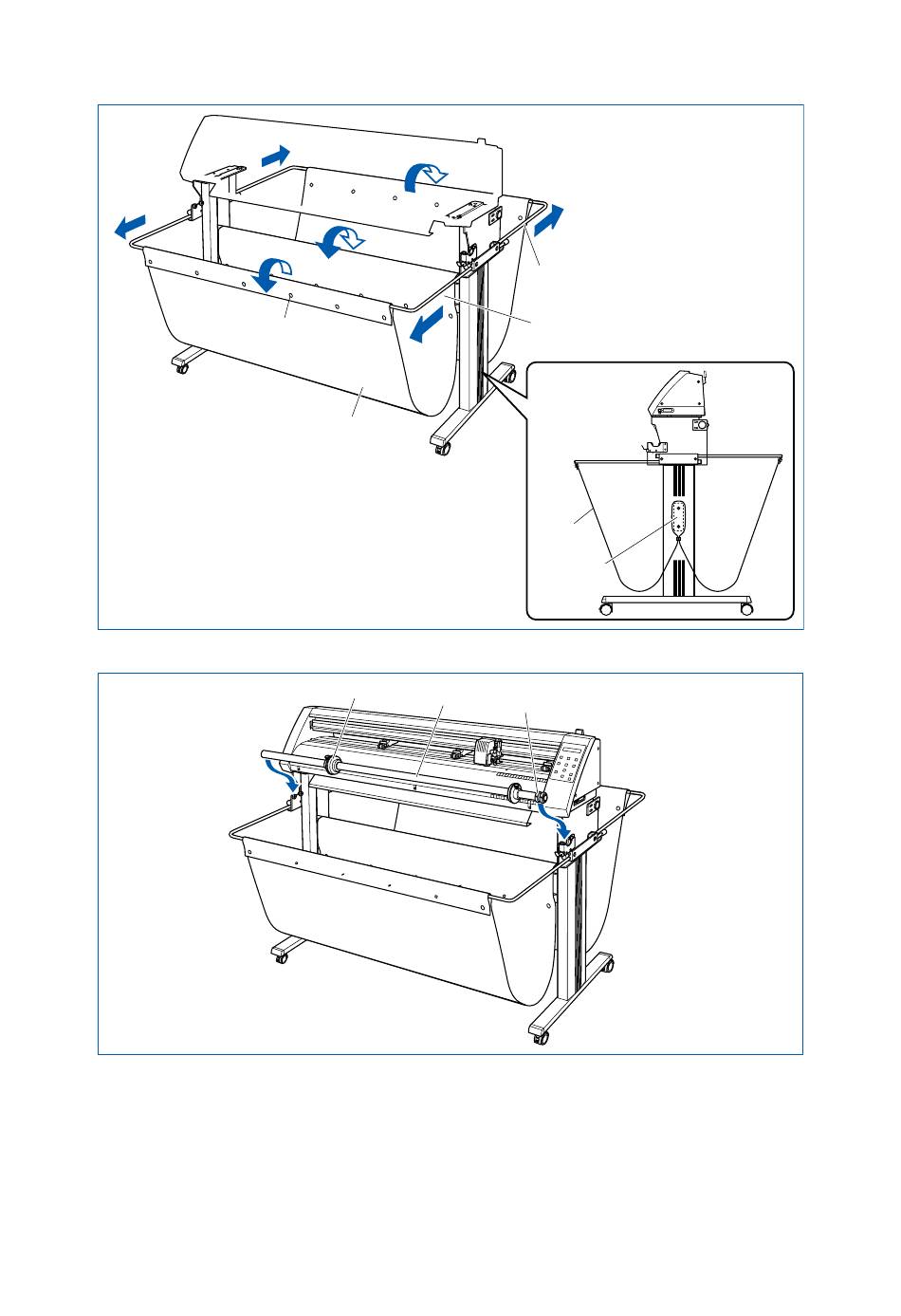

(8) Pull out the sheet support pipes, and attach the sheet to them. Pass the sheet over the center bar, and
fasten the ends to the support pipes using the press-studs.
Sheet support pipe
Pass over the center bar
Press-stud
Side view
Sheet
Sheet
center bar
(9) Attach the stoppers (L/R) to the stock shaft and then attach the shaft to the top of the stand.
Stopper
Stock shaft
Collar
