6.2.16 How to Replace the Power Supply

How to detach the power supply
(1) Detach the front guide (see Subsection 6.1.5 or 6.1.6).
(2) Disconnect the cables from the connectors CN1 and CN2.

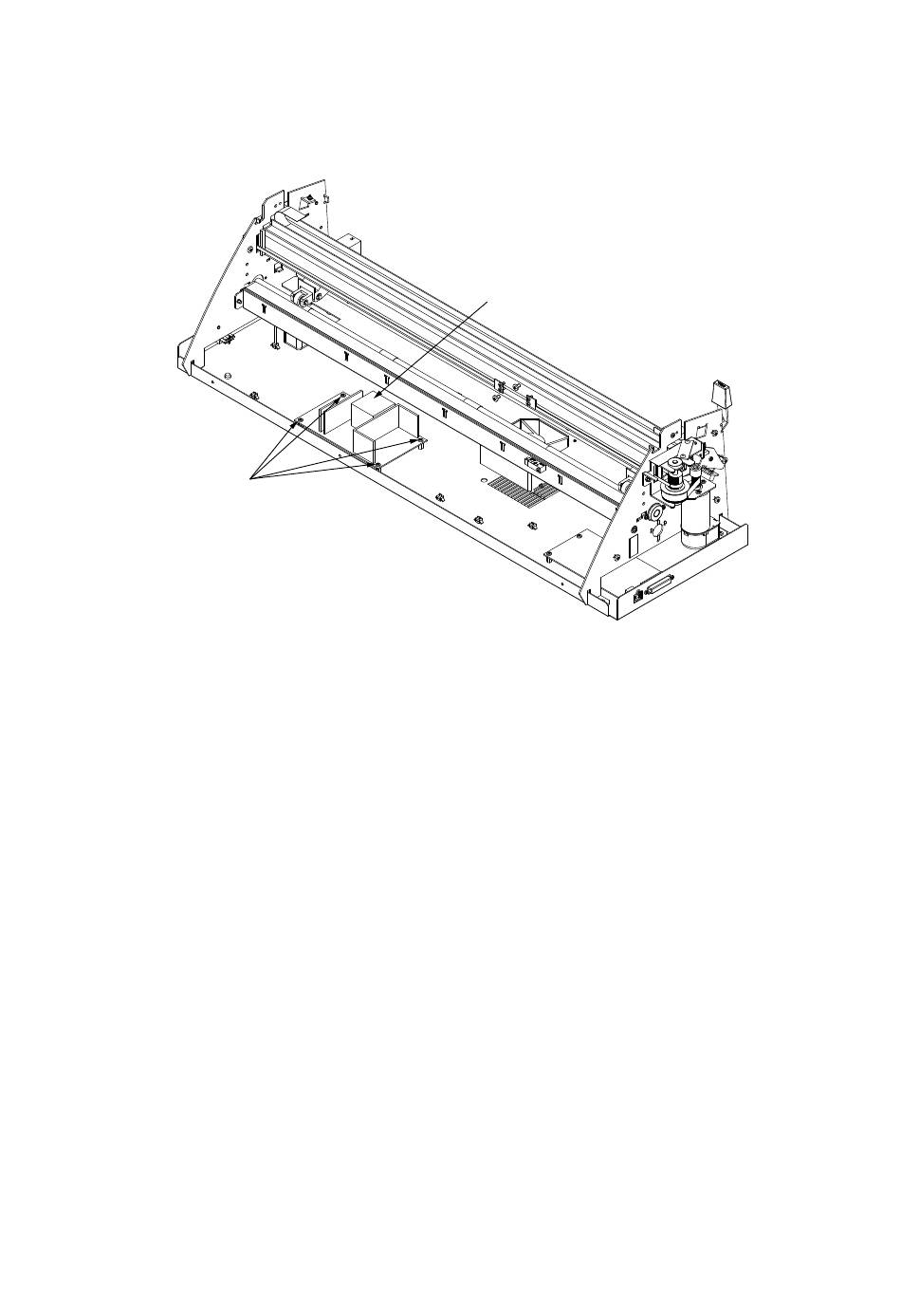

M3L6 binding
head screw
(3) Remove the four M3L6 binding head screws holding the power supply to the bottom of the chassis.
(4) Detach the power supply from the chassis.
How to reinstall the power supply
(1) Reattach in the reverse order in which it was detached.
CE5000-UM-251-9370
6 DISASSEMBLY AND REASSEMBLY
Power supply
6-35
