Step 5 Press the PCI Express mini card down gently, but firmly, and then
secure the card to the carrier by tightening up the one M2*3L screw to
the marked position.

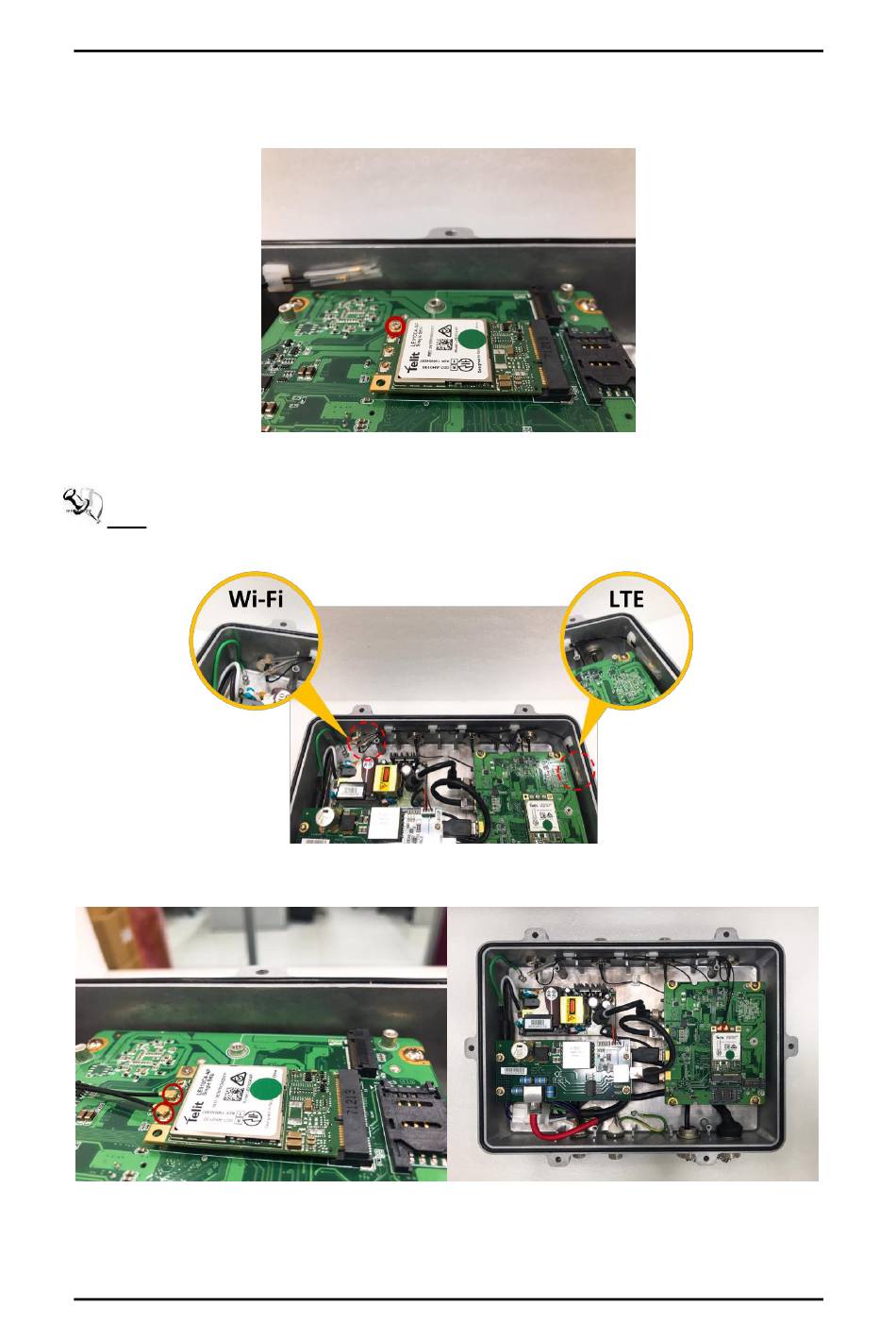

Step 6 Find the SMA cables from the adhesive backed cord clip attached to the
chassis, as shown in the picture below.
Note: The LTE and Wi-Fi modules come with different types of SMA cables: one is IPEX, and
the other is IPEX4. Do not mix them up to avoid mismatch.
Step 7 Connect the SMA cables to the I-PEX connector of the LTE Module and
install LTE antennas.
Hardware Installation
AIE800-904-FL Series User's Manual
