Model 108 FLEX-AUGER® Feed Delivery System
Typical System Installations
®
The FLEX-AUGER

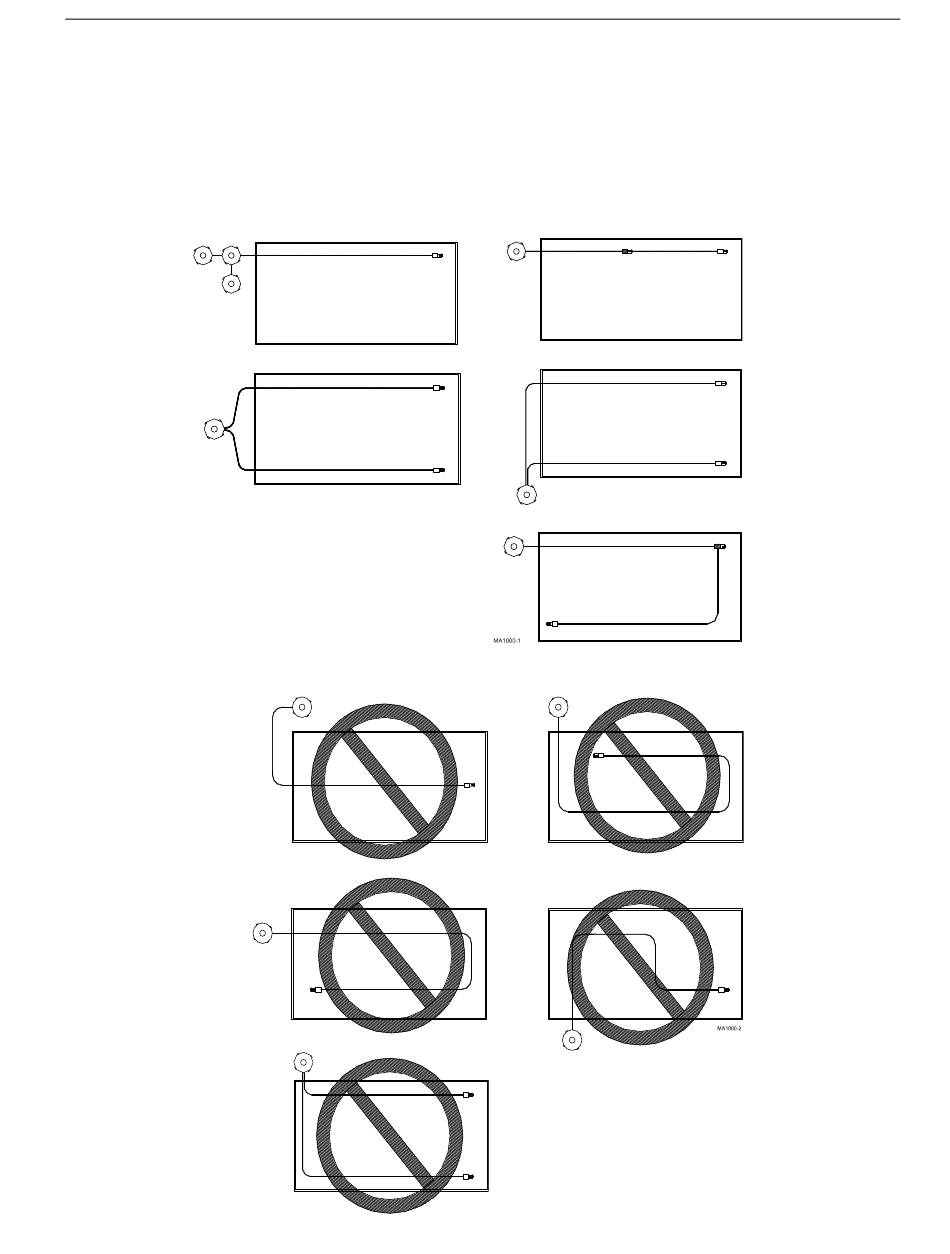

illustrated below show the most common types of FLEX-AUGER installations. These diagrams provide
guidelines for laying out your system.
There are Five Recommended and Non Recommended Layouts shown below. Possible alternate systems are
provided with each non-recommended system.
MA1714C
Delivery Systems may be readily adapted to most feed delivery applications. The systems
Recommended Layouts
Non Recommended Layouts
Planning
9
