Model 108 FLEX-AUGER® Feed Delivery System

Straight-Through Tandem Boot

The Straight-Through Tandem Boots allow a single auger to remove feed from two separate feed bins. Feed

should only be drawn from one bin at a time.

Boot Baffles are required and included with the Straight-Out Boot Assembly.

Model 108 Straight-Through Tandem Systems do not use Feed Restrictors.

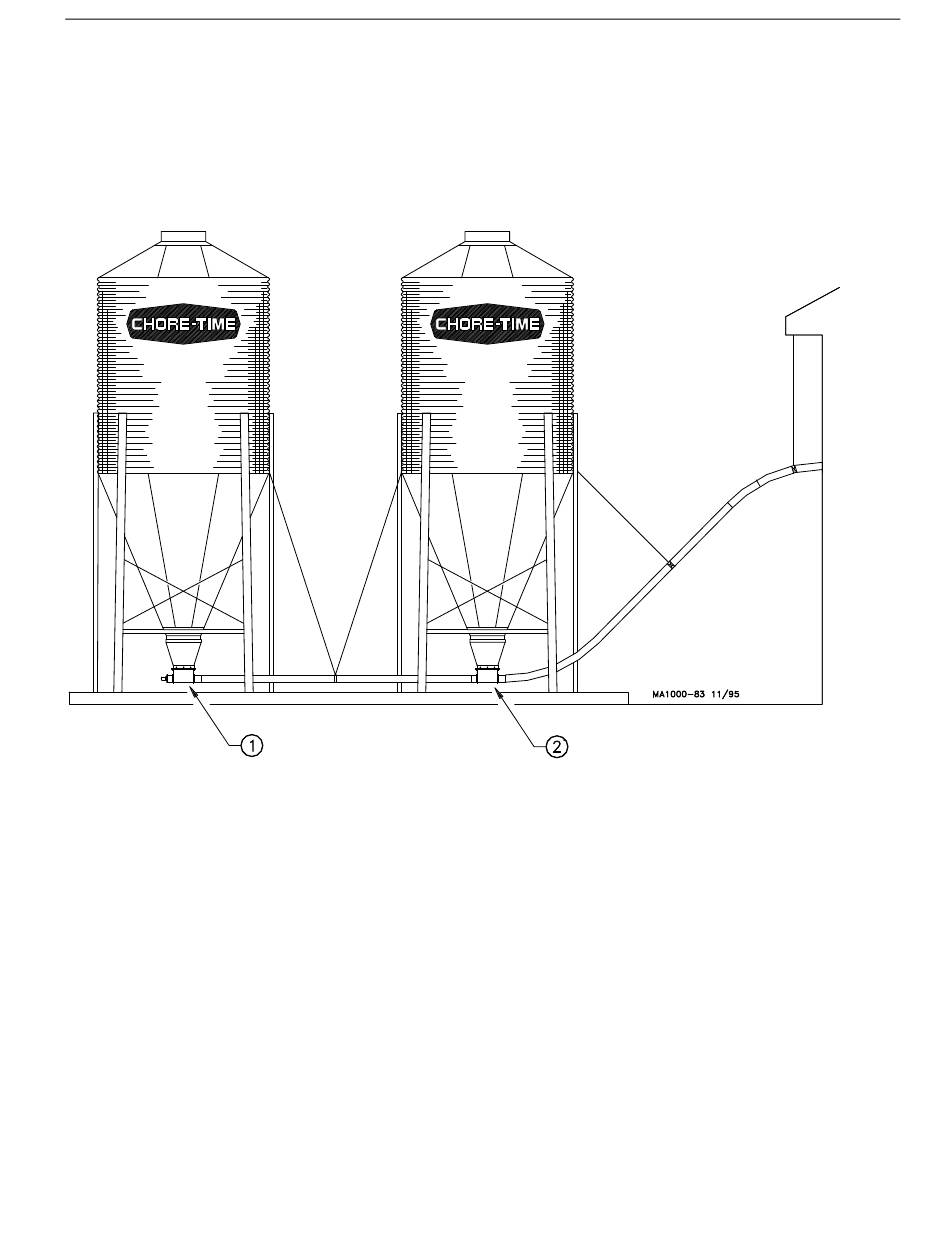

1.Install boots on both feed bins. Figure 21 shows a typical Straight-Through Tandem System.

MA1714C

K e y

D e s c r i p t i o n

S t r a i g h t - O u t B o o t o n T e r m i n a l B i n

S t r a ig h t - T h r u B o o t ( w / B a f f l e ) o n I n t e r m e d i a t e B i n

Figure 21.Model 108 Straight-Through Tandem

Installation
