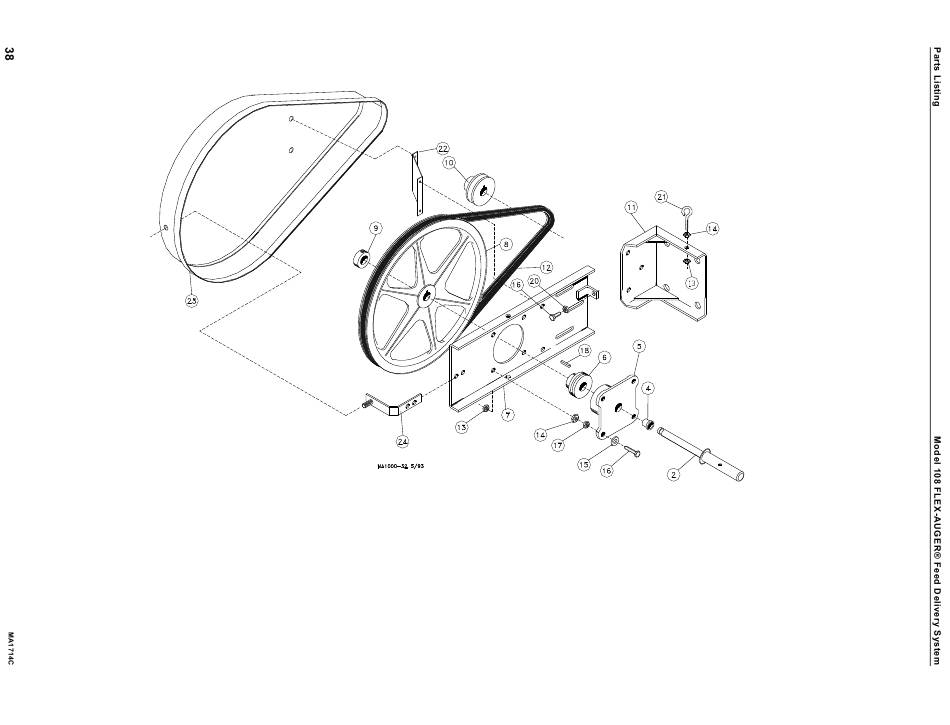

Belt Drive Control Unit (Part No. 46138-2)

Note: The 46800-15 Belt Drive Control Unit includes the Direct Drive Control Unit Components, plus the following components:
Key Description
2* Drive Shaft
4* Flange Bearing
5* Front Plate Bearing Holder
6* Ball Bearing
7 Adjustment Bracket
8 11" Dia. Sheave
9* 5/8" Set Collar
10 2.25" Dia. Sheave
11 Motor Mount Weldment
12 "V" Gripnotch Belt
13 5/16-18 Hex Locknut
*Item May be ordered as a Bearing & Shaft Assembly (Part No. 46157)
Part No. Key Description
46156
14 5/16-18 Jam Nut
2196
15 5/16 Flat Washer
2047
16 5/16-18x1-3/4" Hex Hd. M.S.
5930
17 5/16-18 Hex Lock Nut
46301
18* 3/16" Key
46190
19 Anchor Clamp
1386
20 5/16-18 Hex Nut
3208
21 Eyebolt
3058
22 Belt guard Mount
4409
23 Belt Guard
2148
24 Angle Guard Mount
Part No.
593
546
4412-4
2148
2112-1
7703
2145
1503-2
46198
46199
46299
