Model 108 FLEX-AUGER® Feed Delivery System
Model 108 FLEX-AUGER
(with In-Line or Rotated Screeners)

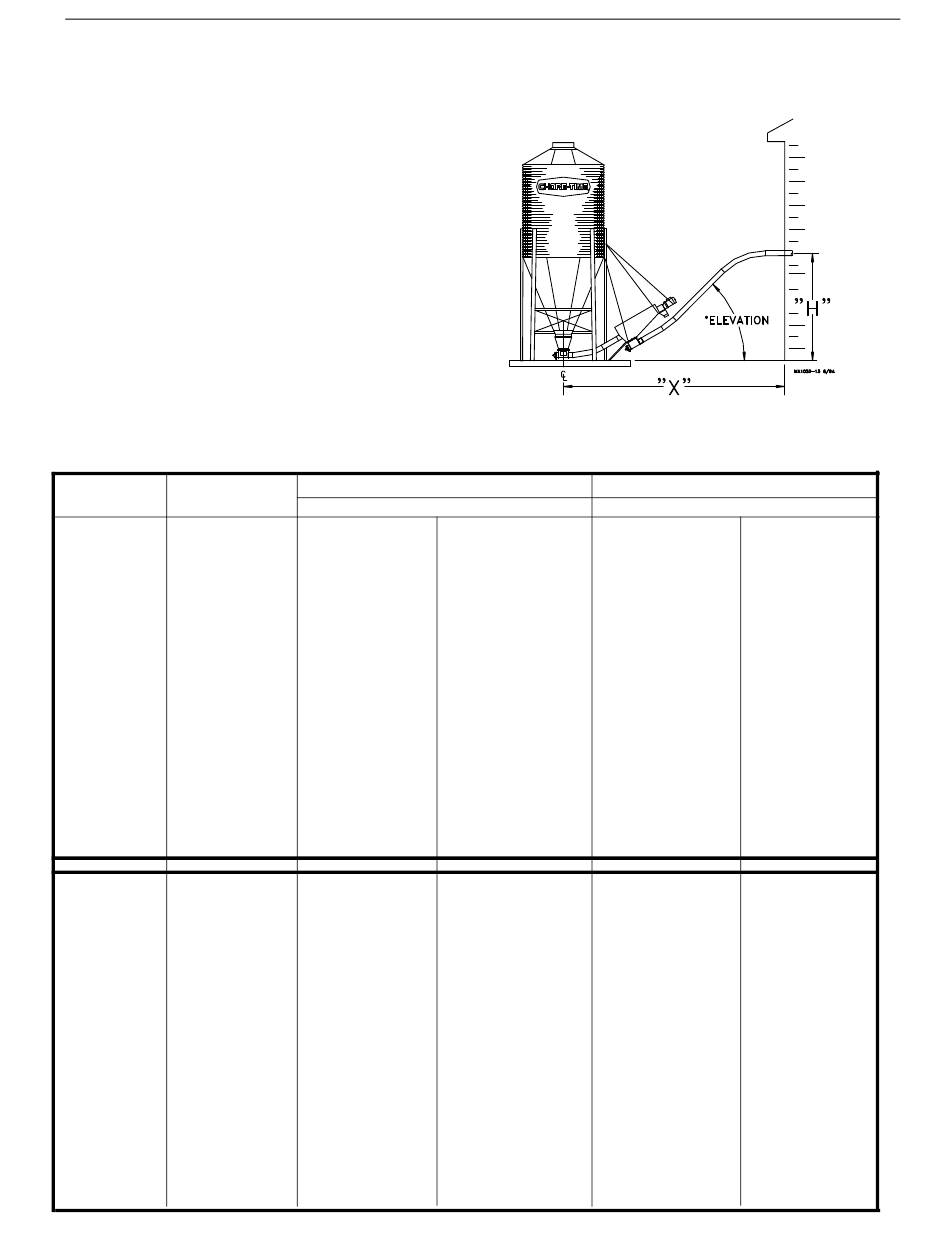

Use this diagram and chart to determine proper
feed bin placement when using screener.
"X" = distance from center of bin to where fill
system enters the building.
"H" = height from top of bin pad to where fill
system enters the building.
Degree of elevation = Angle at which the system is
installed (from horizontal).
System shown with screener boot installed in-line;
system may also be installed with the screener boot
rotated 90 degrees.
Chart for minimum distances ("X") from building to center of bin using the various entrance heights ("H"), upper boots
System Model Entrance Height
"H"
Model 108 using 5' (1.5 m)
Screener 6' (1.8 m)
7' (2.1 m)
Screener Boot is 8' (2.4 m)
in-line with System 9' (2.7 m)
10' (3 m)
11' (3.4 m)
12' (3.7 m)
13' (4 m)
14' (4.3 m)
15' (4.6 m)
16' (4.9 m)
17' (5.2 m)
18' (5.5 m)
19' (5.8 m)
20' (6.1 m)
5' (1.5 m)
6' (1.8 m)
Model 108 using 7' (2.1 m)
Screener 8' (2.4 m)
9' (2.7 m)
Screener Boot is 10' (3 m)
Rotated 90 degrees 11' (3.4 m)
to System 12' (3.7 m)
13' (4 m)
14' (4.3 m)
15' (4.6 m)
16' (4.9 m)
17' (5.2 m)
18' (5.5 m)
19' (5.8 m)
20' (6.1 m)
MA1714C
®
Systems Bin Placement Chart
and elevations listed below.
30 Degree Upper Bin Boot (part no. 4347)
30 Degree 45 Degree
12.5' (3.8 m) 11.5' (3.5 m)
14' (4.3 m) 12.5' (3.8 m)
16' (4.9 m) 13.5' (4.1 m)
17.5' (5.3 m) 14.5' (4.4 m)
19.5' (5.9 m) 15.5' (4.7 m)
21' (6.4 m) 16.5' (5 m)
23' (7 m) 17.5' (5.3 m)
24.5' (7.5 m) 18.5' (5.6 m)
26.5' (8.1 m) 19.5' (5.9 m)
28' (8.5 m) 20.5' (6.2 m)
29.5' (9 m) 21.5' (6.5 m)
31.5' (9.6 m) 22.5' (6.8 m)
33' (10 m) 23.5' (7.2 m)
35' (10.7 m) 24.5' (7.5 m)
36.5' (11.1 m) 25.5' (7.8 m)
38.5' (11.7 m) 26.5' (8.1 m)
11' (3.4 m) 9.5' (2.9 m)
13' (4 m) 10.5' (3.2 m)
14.5' (4.4 m) 11.5 (3.5 m)
16' (4.9 m) 12.5' (3.8 m)
18' (5.5 m) 13.5' (4.1 m)
19.5' (5.9 m) 14.5' (4.4 m)
21.5' (6.5 m) 15.5' (4.7 m)
23' (7 m) 16.5' (5 m)
25' (7.6 m) 17.5' (5.3 m)
26.5' (8.1 m) 18.5' (5.6 m)
28.5' (8.7 m) 19.5' (5.9 m)
30' (9.1 m) 20.5' (6.2 m)
32' (9.8 m) 21.5' (6.5 m)
33.5' (10.2 m) 22.5' (6.8 m)
35.5' (10.8 m) 23.5' (7.1 m)
37' (11.3 m) 24.5' (7.4 m)
Straight-Out Upper Bin Boot (part no. 6093)
30 Degree 45 Degree
15' (4.6 m) 14' (4.3 m)
16.5' (5 m) 15' (4.6 m)
18.5' (5.6 m) 16' (4.9 m)
20' (6.1 m) 17' (5.2 m)
22' (6.7 m) 18' (5.5 m)
23.5' (7.2 m) 19' (5.8 m)
25.5' (7.8 m) 20' (6.1 m)
27' (8.2 m) 21' (6.4 m)
29' (8.8 m) 22' (6.7 m)
30.5' (9.3 m) 23' (7 m)
32.5' (9.9 m) 24' (7.3 m)
34' (10.4 m) 25' (7.6 m)
35.5' (10.8 m) 26' (7.9 m)
37.5' (11.4 m) 27' (8.2 m)
39' (11.9 m) 28' (8.5 m)
41' (12.5 m) 29' (8.8 m)
11' (3.4 m) 9.5' (2.9 m)
13' (4 m) 10.5' (3.2 m)
14.5' (4.4 m) 11.5' (3.5 m)
16' (4.9 m) 12.5' (3.8 m
18' (5.5 m) 13.5' (4.1 m)
19.5' (5.9 m) 14.5' (4.4 m)
21.5' (6.5 m) 15.5' (4.7 m)
23' (7 m) 16.5' (5 m)
25' (7.6 m) 17.5' (5.3 m)
26.5' (8.1 m) 18.5' (5.6 m)
28.5' (8.7 m) 19.5' (5.9 m)
30' (9.1 m) 20.5' (6.2 m)
32' (9.8 m) 21.5' (6.5 m)
33.5' (10.2 m) 22.5' (6.8 m)
35.5' (10.8 m) 23.5' (7.2 m)
37' (11.3 m) 24.5' (7.5 m)
Planning
11
