Chore-Time FLEX-AUGER 108 Installation And Operator's Manual page 31

Model 108 FLEX-AUGER® Feed Delivery System

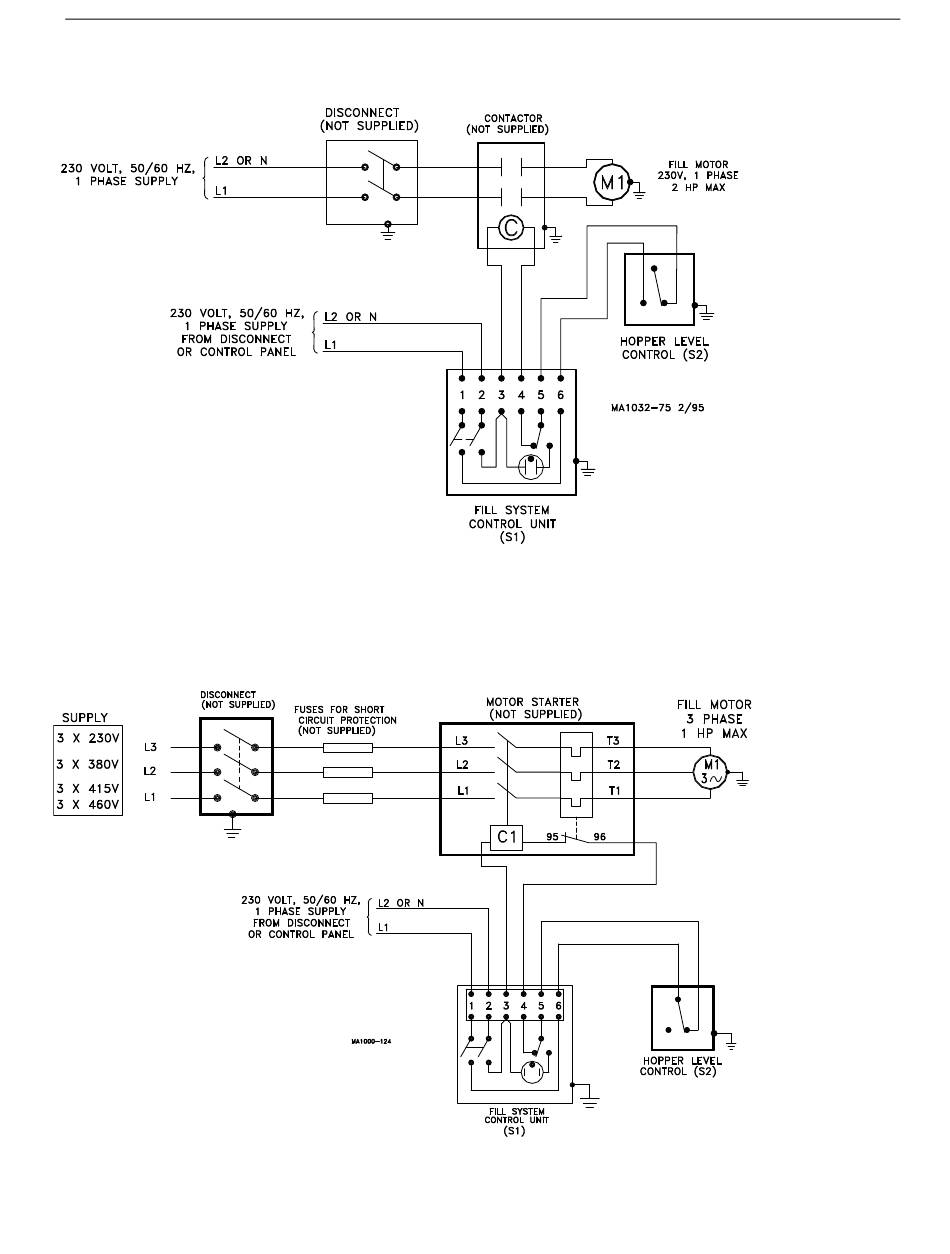

Wiring Diagram for Model 108 w/Hopper Control Switch
(1-1/2 H.P. or larger, 3 Phase)
Im po rtan t: If a time cl ock is to be use d
to co ntro l system, pl ease refer to
app licab le instruction.
I m p or t a nt: If system is to be con-
troll ed b y ano the r styl e switch, ple ase
refer to a ppl icabl e i nstru cti on.
Figure 25.Model 108 Hopper Level Control Switch (1-1/2 HP or larger) Wiring Diagram
Wiring Diagram for Model 108 w/Hopper Control Switch
Im po rtan t: If a time cl ock is to be use d
to co ntro l system, pl ease refer to
app licab le instruction.
Im po rtan t: If system is to be controlled by
ano th er style switch, ple ase refer to ap pli-
cable instruction.
Figure 26.Model 108 Hopper Level Control Switch Wiring Diagram
MA1714C
Installation
31
