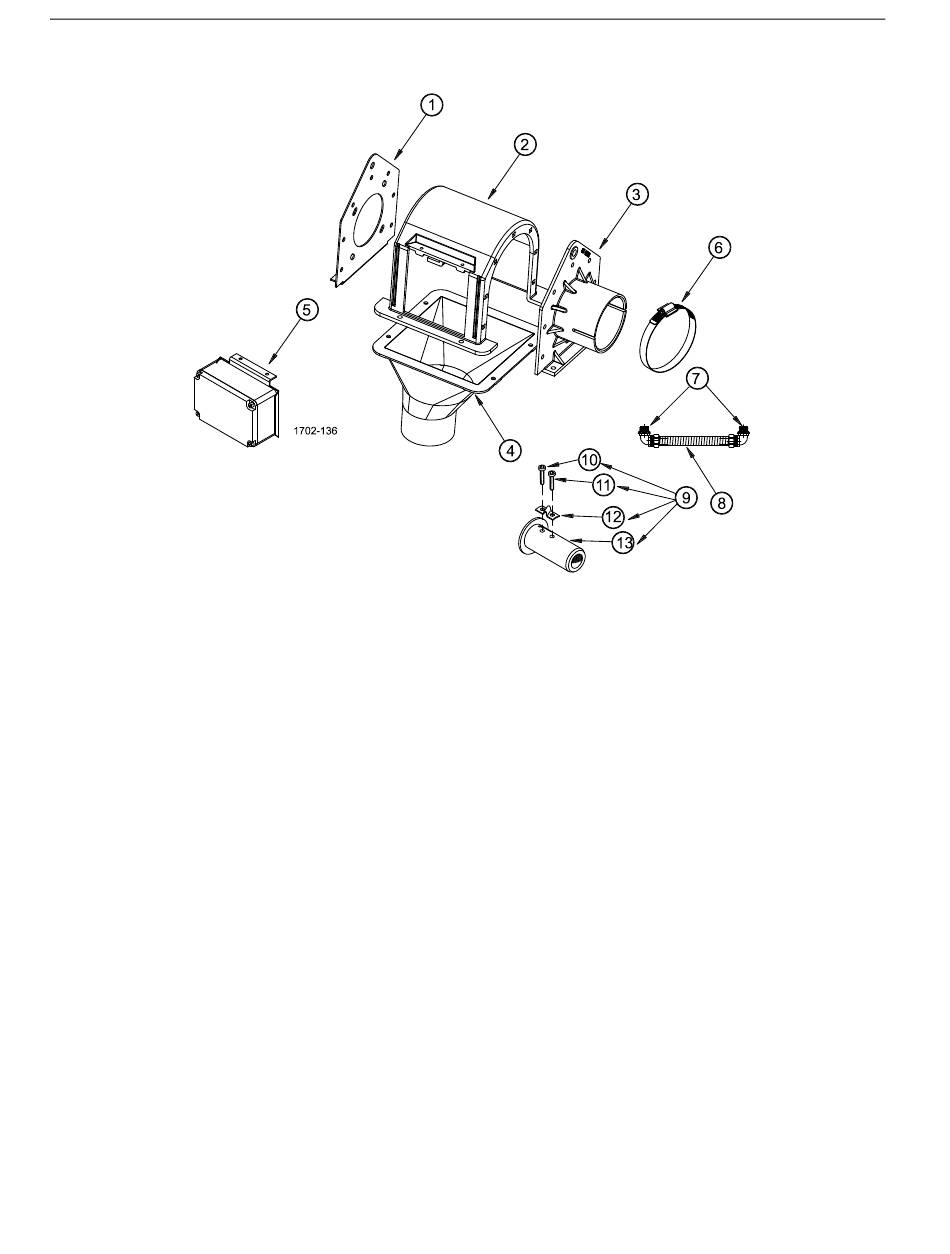

Parts Listing
Single Phase Direct Drive Control Unit (Part No. 46800-5)
3-Phase International Direct Drive Control Units (Part No. 46800-10)
Components - Same as Standard Direct Drive Control Units except does not include the 90° connectors
and the flex conduit.
36
KEY
DESCRIPTION
1
Gearhead End Plate
2
Control Unit Body
3
Tube Anchor Plate
4
Control Unit Funnel
5
Switch & Plate Assembly
6
H.D. Adjustable Clamp
7
Water Tight Connector
8
Flex Conduit
9
Driver Assembly
10
Screw, SKTH CP 5/16-18X .875
11
Screw, SKTH CP 5/16-18X 2.75
12
Anchor Clamp
13
Driver Weldment
Model 108 FLEX-AUGER® Feed Delivery System
PART NO.
43596
43601
45927
45943-3
46051
47652-2
23810
26982-10
30313
6850-1
6850-2
7703
30312
MA1714C
