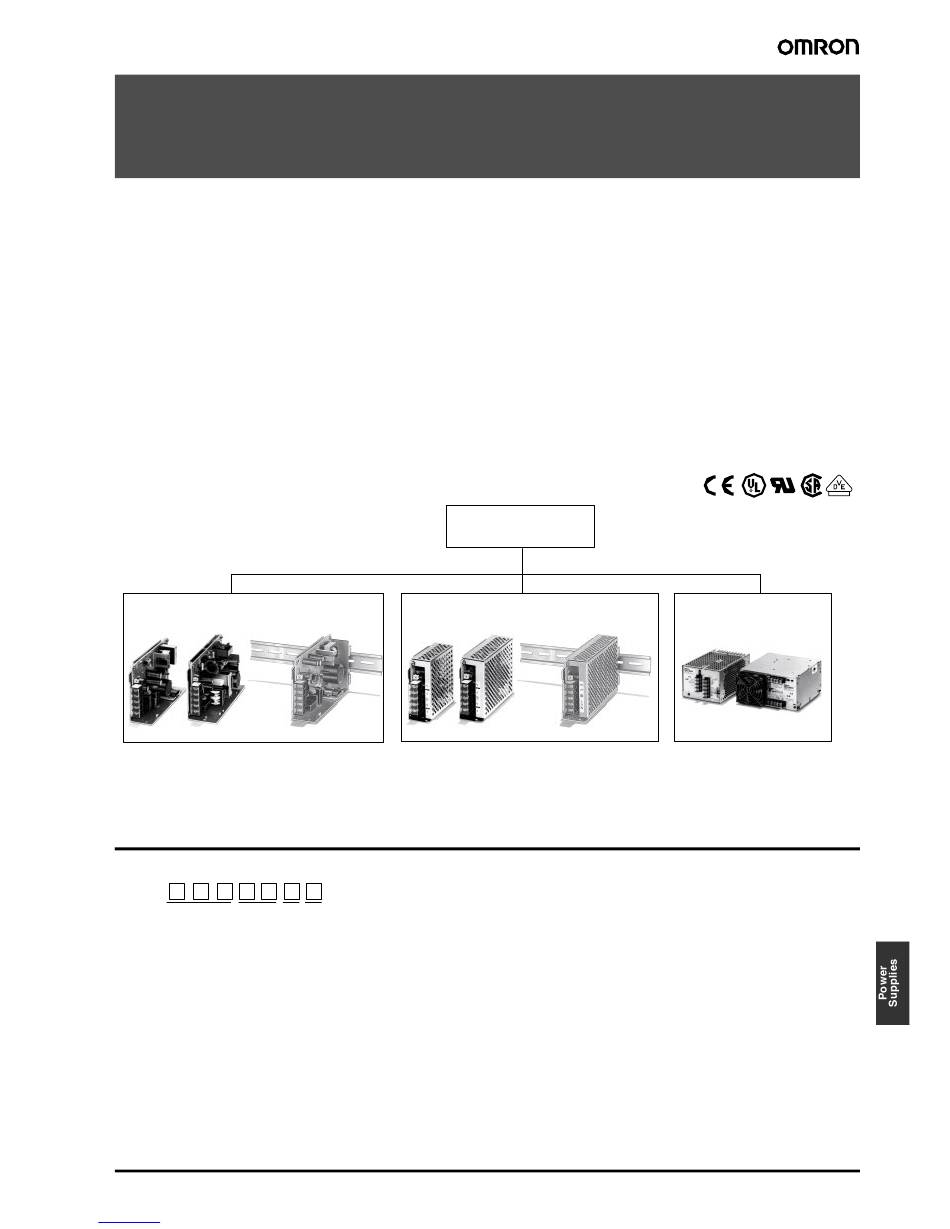

Switch mode Power Supply
S82J
Compact and Economical Switch mode Power Supplies with Capacities Up to 600 W
DIN Track Mounting Bracket Type Now Available
• Power range from 10 W up to 600 W.
• Output Voltages: 5 V, 12 V, 15 V, or 24 V.
• Mounting bracket provided for mounting to control panels.
• Maintenance-free up to 300 W due to natural ventilation.
• Protection-ON alarm indicator shows valuable protection functions in action (300-/600-W models).
• Conforms to EMC standards: EN50081-2 and EN50082-2.
• With an external filter, achieves conformance to EN50081-1 for universal usage on EMI (300-/600-W models).
• Finger protection terminal block to meet VDE0106/P100
• Class 2 approved 10-W, 25-W (except for 5-V output), and 50-W (only for 24-V output) models.
• UL508 approved. All models can be used at full load in UL508A industrial control panel applications.
• Approved by UL/CSA standards, EN60950, and EN50178 (VDE0160).
• Six-language instruction manual provided. (English, French, German, Italian, Spanish, and Japanese)
Open-frame Type
<10 W to 150 W>
• 100 to 240-VAC input
• 100 or 200 VAC (selected automatically)
(100-W 5-/12-/15-V output, 150-W models)
Model Number Structure
I Model Number Legend
S82J -
1. Power Ratings
010: 10 W
025: 25 W
050: 50 W
100: 100 W
150: 150 W
300: 300 W
600: 600 W
4. Mounting Bracket
None: Front-mounting Bracket Type
D:
DIN Track Mounting Bracket Type
Downloaded from
Elcodis.com
electronic components distributor
1
2
3
4
2. Output Voltage
05:
12:
15:
24:
S82J
Covered Type
<10 W to 150 W>
• 100 to 240-VAC input
• 100 or 200 VAC (selected automatically)
(100-W 5-/12-/15-V output, 150-W models)
3. Configuration
5 V
A:
12 V
B:
15 V
C:
24 V
D:
E:
F:
N:
None: Enclosure type, front terminals with
Switch mode Power Supply

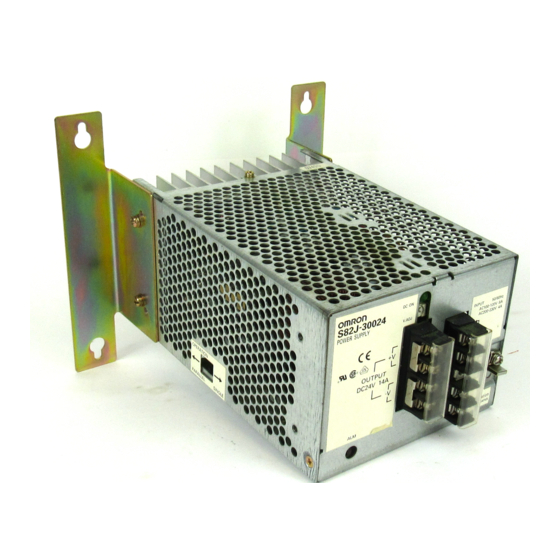

Enclosure Type
<300/600 W>
• 100 or 200 VAC (selectable)
Open-frame type, front terminals
Open-frame type, top terminals
Open-frame type, connector
Covered type, front terminals
Covered type, top terminals
Covered type, connector
Without Mounting Bracket
Mounting Bracket
S82J
L-79

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S82J and is the answer not in the manual?

Questions and answers

Summary of Contents for Omron S82J

  • Page 1 • 100 or 200 VAC (selected automatically) (100-W 5-/12-/15-V output, 150-W models) (100-W 5-/12-/15-V output, 150-W models) Model Number Structure I Model Number Legend S82J - 1. Power Ratings 2. Output Voltage 3. Configuration 010: 10 W Open-frame type, front terminals...
  • Page 2: Ordering Information

    Input Voltage Power Output Output Front terminals Top terminals Connector ratings voltage current Open-frame type 100 to 240 VAC 10 W S82J-01005A 12 V S82J-01012A 15 V 0.7 A S82J-01015A 24 V 0.5 A S82J-01024A 25 W S82J-02505A 12 V 2.1 A...
  • Page 3 Input Voltage Power Output Output Front terminals Top terminals Connector ratings voltage current Open-frame type 100 to 240 VAC 10 W S82J-01005AD 12 V S82J-01012AD 15 V 0.7 A S82J-01015AD 24 V 0.5 A S82J-01024AD 25 W S82J-02505AD 12 V 2.1 A...
  • Page 4 S82J L-82 Switch mode Power Supply Downloaded from Elcodis.com electronic components distributor...
  • Page 5: Specifications

    (See note 5.) Overheat protection Yes, protection- ON alarm indicator lit (See note 4.) Protection-ON alarm Yes (color, red) indicator Parallel operation Yes, 5 units max. Series operation S82J L-83 Switching Power Supply Downloaded from Elcodis.com electronic components distributor...
  • Page 6 The life expectancy indicates average operating hours under the ambient temperature of 40°C and a load rate of 50%. Normally this is determined by the life expectancy of the built- in aluminum electrolytic capacitor. S82J L-84 Switching Power Supply Downloaded from Elcodis.com...
  • Page 7 Connections I Block Diagrams S82J-010@@@@ (10 W) S82J-025@@@@ (25 W) Smoothing Fuse* Rectifier circuit AC (L) Input Noise filter Noise filter DC Output − AC (N) Inrush current Rectifier and protection circuit smoothing circuit * Fuse capacity: 10 W, 1 A...
  • Page 8 S82J-10024@@ (100 W, 24-V Output) Fuse (5 A) AC(L) DC Output Input Noise filter −V AC(N) Rectifier Inrush current Smoothing Rectifier and protection circuit smoothing circuit circuit Control circuit Overload Detector detection circuit Photocoupler Overload detection circuit Photocoupler S82J-15024@@ (150 W)
  • Page 9 S82J-60024@ (600 W) Fuse Rectifier and 20 A smoothing circuit Input Noise filter DC Output Inrush current Rectifier and protection circuit smoothing circuit 100/200 V (selectable) Control circuit Overcurrent Detector detector Photocoupler Overheat Note: Short-circuit the input voltage selector detector terminals if the input is 100 to 120 VAC.
  • Page 10 600-W model) circuit is triggered. This indicator will also be lit when overcurrent (for a 600-W model) is detected. 8. Parallel/Single Operation Selector: Set the selector to PARALLEL if the Units are in parallel operation. 9. NC Terminals: Leave unconnected. S82J L-88 Switching Power Supply Downloaded from Elcodis.com...
  • Page 11: Engineering Data

    20 mm min. 20 mm min. 20 mm min. 20 mm min. Ambient temperature (°C) Ambient temperature (°C) Note: Provide a minimum clearance of 20 mm between the Power Supplies. S82J L-89 Switching Power Supply Downloaded from Elcodis.com electronic components distributor...
  • Page 12 Rated value Output current (%) Output current (%) Note: 1. If the S82J is connected to a load with a built-in DC-DC con- verter, the overload protection function may be triggered at startup, and consequently the S82J may not operate.
  • Page 13 Dimensions Note: All units are in millimeters unless otherwise indicated. Open-frame type and covered type have the same dimensions. I Front-mounting Bracket Type 12 max. 90±1 S82J-010@@@ (10 W) Mounting Holes (Surface Screw Mounting) Side Mounting 97±1 65±0.5 Two, M3 65±0.5...
  • Page 14 Two, M3 25±0.5 50±1 27.5 28±0.5 160±0.5 100±0.5 S82J-100@@@ 198 (see note) (100 W, 5-/12-/15-V Output) Mounting Holes (Surface Screw Mounting) S82J-15024@ (150 W) 4 max. Side Mounting Two, M4 89±0.5 82±0.8 M4 x 8 4.5 dia. 180±0.5 3±0.25 7±0.3 180±0.5 Mounting holes (on both sides) 178±0.5...
  • Page 15 S82J-60024@ (600 W) Eight, M4 holes (depth: 8 max. Mounting Holes on both sides) (Surface Screw Mounting) Side Mounting Four, 4.5 dia. Four, M4 holes (depth: 8 max. on one side) 50±0.5 Four, M4 holes (depth: 8 max.) 150±0.5 Bottom Mounting Nine, M4 terminal screws Four, 4.5 dia.
  • Page 16 21.6 mm from the mounting surface. t= 1.6 600-W Models Note: To provide ventilation space, the body will shift forward by 23.6 mm from the mounting surface. S82J L-94 Switching Power Supply Downloaded from Elcodis.com electronic components distributor...
  • Page 17 I DIN Track Mounting Bracket Type S82J-010@@@D (10 W) 7 max. 12 max. 9 max. when slided out S82J-025@@@D (25 W) 7 max. 12 max. 9 max. when slided out S82J-050@@@D (50 W) 7 max. 12 max. 9 max. when slided out S82J-10024@D 7 max.
  • Page 18 Mounting hole dimensions Front-mounting S82Y-J10F Three, 4.5-dia. holes Bracket Three, M4 t = 1.6 Note: These Front-mounting Brackets cannot be used with S82J 100-W (5, 12, or 15-V) or 150-W models. S82J L-96 Switching Power Supply Downloaded from Elcodis.com electronic components distributor...
  • Page 19: Mounting Methods

    Refer to Dimensions. Mounting Methods The following mounting methods are available. 10-/25-/50-/100 (24 V)-W Models (A) Side mounting (B) Bottom mounting (C) Front mounting (see Accessories) Mounting brackets (provided) Metal plate S82J L-97 Switching Power Supply Downloaded from Elcodis.com electronic components distributor...
  • Page 20: Parallel Operation

    Generating Output Voltage (±) With the S82J-050@@@@ or S82J-10024@@, if the load is shorted a reverse voltage may result in the Power Supply causing deterioration An output of ± can be generated by using two Power Supplies as and damage. It is recommended that diodes are connected as shown below, because the Power Supply produces a floating output.
