Switching Power Supply
S82H/S82H-3
World Class Power Supplies with Wide Input Voltage Range.
S82H Series
S82H
S82H-3
+
4+9
4
Used with Both 100 and 200 VAC Input Voltages
Industrial Power Supply with Power Factor Correction
Contents
S82H . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
S82H-3 . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omron S82H Series
Summary of Contents for Omron S82H Series

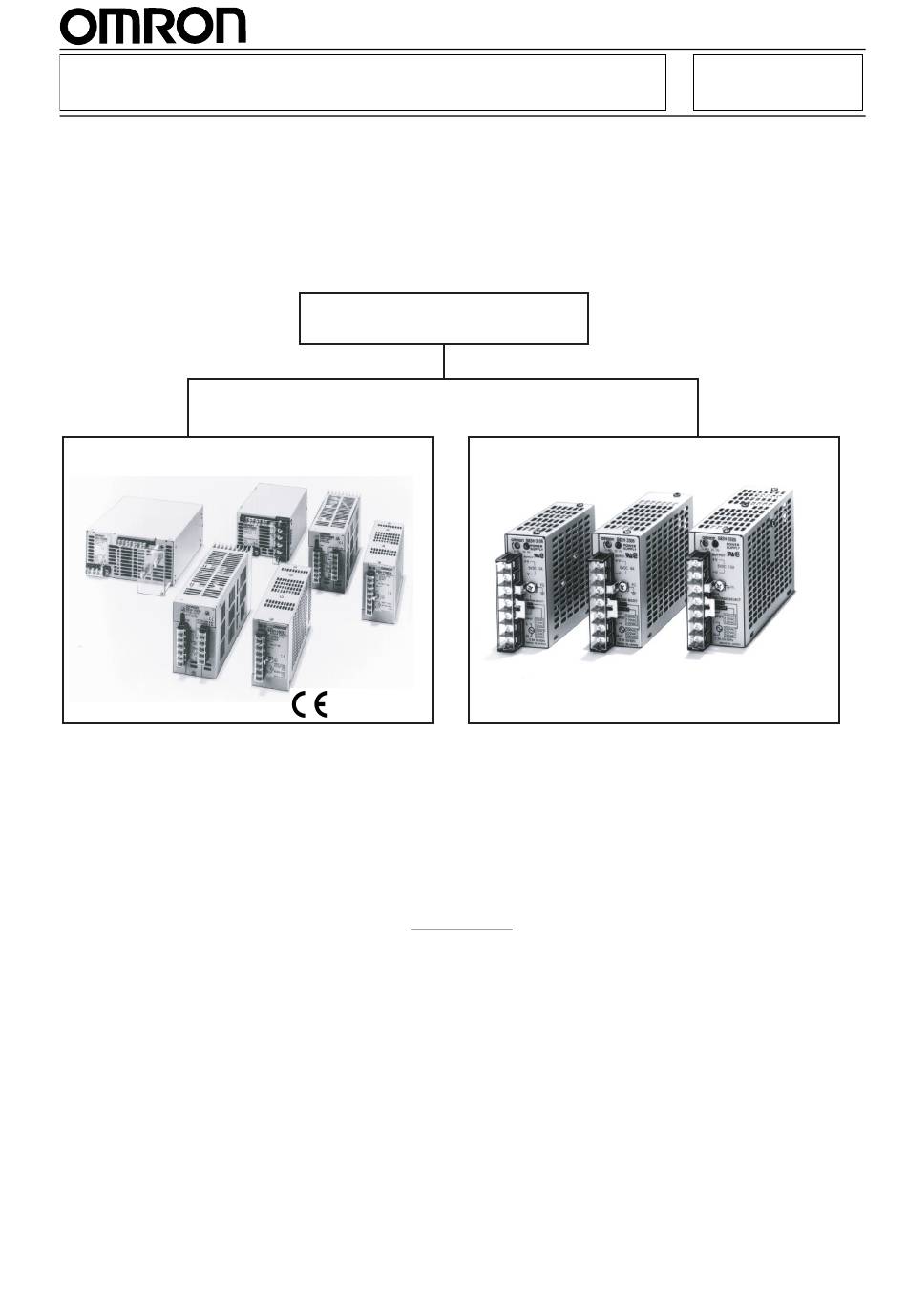

- Page 1 Switching Power Supply S82H/S82H-3 World Class Power Supplies with Wide Input Voltage Range. S82H Series S82H S82H-3 Used with Both 100 and 200 VAC Input Voltages Industrial Power Supply with Power Factor Correction Contents S82H ......2...
-
Page 2: Switching Power Supply
Switching Power Supply S82H Industrial Power Supply with Power Factor Correction Meets EN61000-3-2 (limits for harmonic current emissions) with PFC on 100 to 600 W. Suitable for universal usage, conforming to EN50081-1 (Non-PFC models). Power range from 100 to 600 W. Wide AC input voltage range: 100 to 240 VAC (S82H-P @ @ @ @ @... -
Page 3: Conversion Table
S82H S82H Accessories (Order Separately) Applicable power Bottom-mounting Side-mounting Front-mounting Terminal supply Back-mounting Expansion Bracket S82H- 1 00 S82Y-H10B S82Y-H10S S82Y-H10F S82H- 1 50 S82Y-F15B S82Y-F15S S82H-P300 S82Y-D30B S82Y-D30S S82Y-DFAN S82H-P600 S82Y-D60B S82Y-D60S S82Y-DFAN S82Y-D60T Model Number Legend Conversion Table S82H - Conventional model New model... - Page 4 S82H S82H Item 100 W 150 W 100 W 150 W 300 W 600 W Addition- Overload protection 105% max. of rated load current, inverted L drop type, automatic 105% max. of rated load current, al func- reset inverted L drop type, automatic re- tion set (output shut off after 5 s, reset by input reset)
- Page 5 S82H S82H Engineering Data Derating Curve Units cannot be mounted vertically. With No PFC With PFC Standard Mounting Standard Mounting (100- and 150-W Models) (100-, 150-, 300-, and 600-W Models) Forced Forced air-cooling (100- air-cooling and 150-W Models only) Natural air- Natural air- cooling cooling...
- Page 6 S82H S82H Overload Protection The Power Supply is provided with an overload protection func- In addition to the protection described in the left column, in the tion that protects the load and the power supply from possible case of the 300- and 600-W models, if the low voltage condition damage by overcurrent.
- Page 7 S82H S82H Operation Remote Sensing Function Remote Control Function The remote sensing function makes it possible to compensate for The remote control function enables external signals to turn the voltage drops caused by load lines. To use this function, remove output of the Power Supply ON and OFF.
- Page 8 S82H S82H Remote Voltage Adjustment Function Output voltage can be varied externally by inserting a variable resistor between the +V and +S terminals (+M and +S terminals Remove for 300- and 600-W models) of the remote sensing terminals. short bars. Use a variable resistor with a capacity of 0.5 W min.
- Page 9 S82H S82H S82H-P100 (100 W) S82H-P150 (150 W) Inrush cur- Rectifi- Rectification/ Fuse* rent limiting cation Smoothing Input Noise filter DC output * Fuse capacity 100 W: 4 A 150 W: 6 A Rectification/ Smoothing Control circuit Photocoupler Remote Overcurrent Detection sensing detection...
- Page 10 S82H S82H Dimensions Note: All units are in millimeters unless otherwise indicated. S82H- (100 W) 25 max. Mounting Holes Four, 4 dia. M4 terminal screws Four, M4 (depth: 6 max.) Four, 5 dia. (A): Compatible with conventional S82H (100 W) models (B): Compatible with S82P (100 W) discontinued models Four, M3 (depth: 6 max.) S82H-...
- Page 11 S82H S82H S82H-P300 300 W) (( Mounting Holes M3 terminal screws 30 max. Side Mounting Four, 5 dia. Eight, M4 (depth: 6 max.) M4 terminal screws M5 terminal screws Bottom Mounting (including opposite side) Four, 5 dia. Four, M4 (depth: 6 max.) S82H-P600 00 W) (( $...
- Page 12 S82H S82H Mounting Bracket S82H- 1 00 (100 W) (Order Separately) Type B Type S Type F Type (Bottom-mounting bracket) (Side-mounting bracket) (Front-/Back-mounting bracket) Model S82Y-H10B S82Y-H10S S82Y-H10F Dimen- Three, 4.5-dia. holes Three, 4.5-dia. holes Three, 4.5-dia. holes sions Appear- Left-side Right-side Back...
- Page 13 S82H S82H 2. Order Separately Type B Type S Type (Bottom-mounting bracket) (Side-mounting bracket) Model S82Y-F15B S82Y-F15S men- sions Three, 4.5-dia. holes Four, 4.5-dia. holes Note: Use countersunk screws of M4 x 8 max. when Note: Use countersunk screws of M4 x 8 max. when attaching to the Unit.
- Page 14 S82H S82H S82HP600 (600 W) (Order Separately) Type B Type S Type (Bottom-mounting bracket) (Side-mounting bracket) Model S82Y-D60B S82Y-D60S Dimen- sions t=2.3 t=2.3 Four, 4.5-dia. holes, Four, 4.5-dia. holes countersunk at 90° Four, 4.5-dia. holes, Four, 4.5-dia. holes countersunk at 90° Note: Use countersunk screws of M4 x 8 max.
- Page 15 S82H S82H Installation Terminal Arrangement S82H- (100 W) S82H- (150 W) (11) (11) S82H-P300 (300 W) S82H-P600 (600 W) (5) (10) (3) (4) (5) (10) (3) (4) (7) (8) (11) (11) 1. DC Output Terminals: Connect the load lines to these terminals. 2.
-
Page 16: Series Operation
S82H S82H Precautions Mounting Generating Output Voltage (±) An output of ± can be generated by using two Power Supplies, as To improve and maintain the reliability of the Power Supply over a long period of time, adequate consideration must be given to heat shown below, because the Power Supply produces a floating out- radiation. -
Page 17: Fan Replacement
The fan must be replaced when a fan alarm is output. Contact The maximum current density should be 20 A per one M4 termi- your OMRON representative for details about fan replacement. nal screw. When replacing the fan, unscrew the case fixing screws (A) to... - Page 18 Switching Power Supply S82H-3 Used with Both 100 and 200 VAC Input Voltages Wide AC input voltage range: 85 to 132 and 170 to 264 VAC. Three types using classification of power ratings: 15, 30 and 50 W. Also, four types using classification of output volt- age: 5, 12, 15, and 24 V.
- Page 19 S82H-3 S82H-3 Specifications Ratings/Characteristics Item 15 W 30 W 50 W Efficiency (typical) 65% min. 70% min. Input Voltage 100 V (85 to 132 VAC)/200 V (170 to 264 VAC) selectable Frequency 47 to 450 Hz Current 100-VAC input 0.5 A max. 0.9 A max.
- Page 20 S82H-3 S82H-3 Engineering Data Derating Curve Standard Mounting Position Forced air-cooling Natural air-cooling Note: The derating curve depends on the mounting position of the Power Supply. Ambient temperature (°C) Overload Protection The Power Supply is provided with an overload protection function that protects the load and the power supply from possible damage by overcurrent.
- Page 21 S82H-3 S82H-3 Block Diagrams S82H-31 S82H-33 S82H-35 Noise DC output Input filter Fuse − V Inrush current Smoothing Rectifier Rectifier protection circuit circuit 100 to 120/200 to 240 VAC Selector Control circuit Photocoupler Overload detector Dimensions Note: All units are in millimeters unless otherwise indicated. S82H-31 max.
- Page 22 S82H-3 S82H-3 Mounting Bracket (Order Separately) Bottom Mounting Bracket Model Dimensions Appearance and mounting holes S82Y-H01B For S82H-31 Two, 4.5 dia. holes S82Y-H03B S82Y-H05B 110±0.2 For S82H-33 Two, 4.5 dia. holes For S82H-31/-33/-35 Two, M 4 140±0.2 For S82H-35 Two, 4.5 dia. holes 15 W 30 W 50 W...
- Page 23 S82H-3 S82H-3 Front/Flush Mounting Bracket Model Dimensions Appearance and mounting holes S82Y-H01F For S82H-31 Flush mounting Front mounting Three, 4.5 dia. holes S82Y-H03F S82Y-H05F Three, 4.5 dia. holes For S82H-33 Three, M 4 For S82H-35 Three, 4.5 dia. holes 15 W 30 W 50 W Track Mounting Bracket (Order Separately)
- Page 24 To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527. Cat. No. T023-E1-1 In the interest of product improvement, specifications are subject to change without notice. OMRON Corporation Industrial Automation Company Measuring and Supervisory Controls Department...
