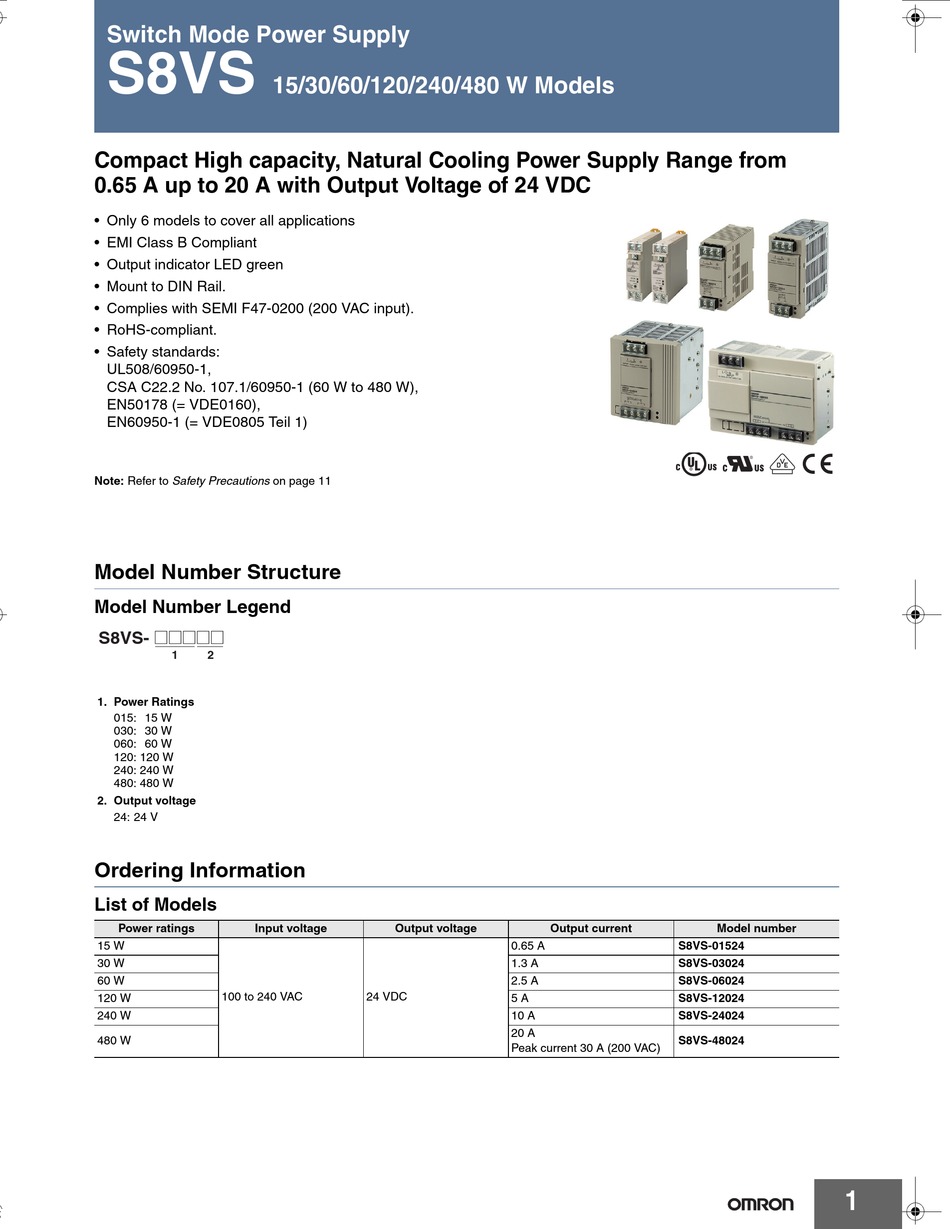

Switch Mode Power Supply
S8VS
Compact High capacity, Natural Cooling Power Supply Range from
0.65 A up to 20 A with Output Voltage of 24 VDC
• Only 6 models to cover all applications
• EMI Class B Compliant
• Output indicator LED green
• Mount to DIN Rail.
• Complies with SEMI F47-0200 (200 VAC input).
• RoHS-compliant.
• Safety standards:
UL508/60950-1,
CSA C22.2 No. 107.1/60950-1 (60 W to 480 W),
EN50178 (= VDE0160),
EN60950-1 (= VDE0805 Teil 1)
Note: Refer to Safety Precautions on page 11
Model Number Structure
Model Number Legend
S8VS- @@@@@
1
2
1. Power Ratings
015: 15 W
030: 30 W
060: 60 W
120: 120 W
240: 240 W
480: 480 W
2. Output voltage
24: 24 V
Ordering Information
List of Models
Power ratings
Input voltage
15 W
30 W
60 W
100 to 240 VAC
120 W
240 W
480 W
15/30/60/120/240/480 W Models
Output voltage
24 VDC
Output current
0.65 A
S8VS-01524
1.3 A
S8VS-03024
2.5 A
S8VS-06024
5 A
S8VS-12024
10 A
S8VS-24024
20 A
S8VS-48024
Peak current 30 A (200 VAC)
Model number
1
