Page 1

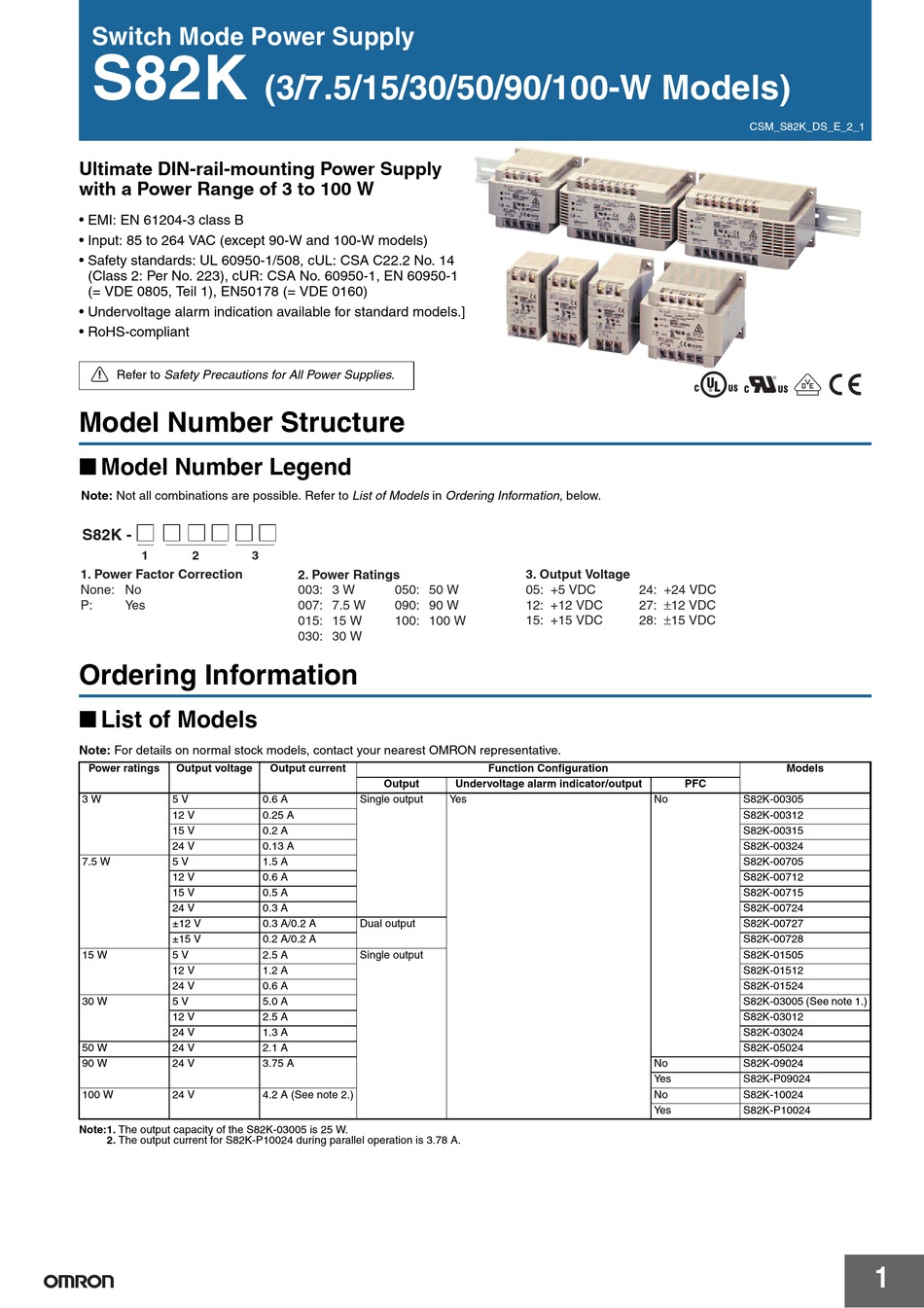

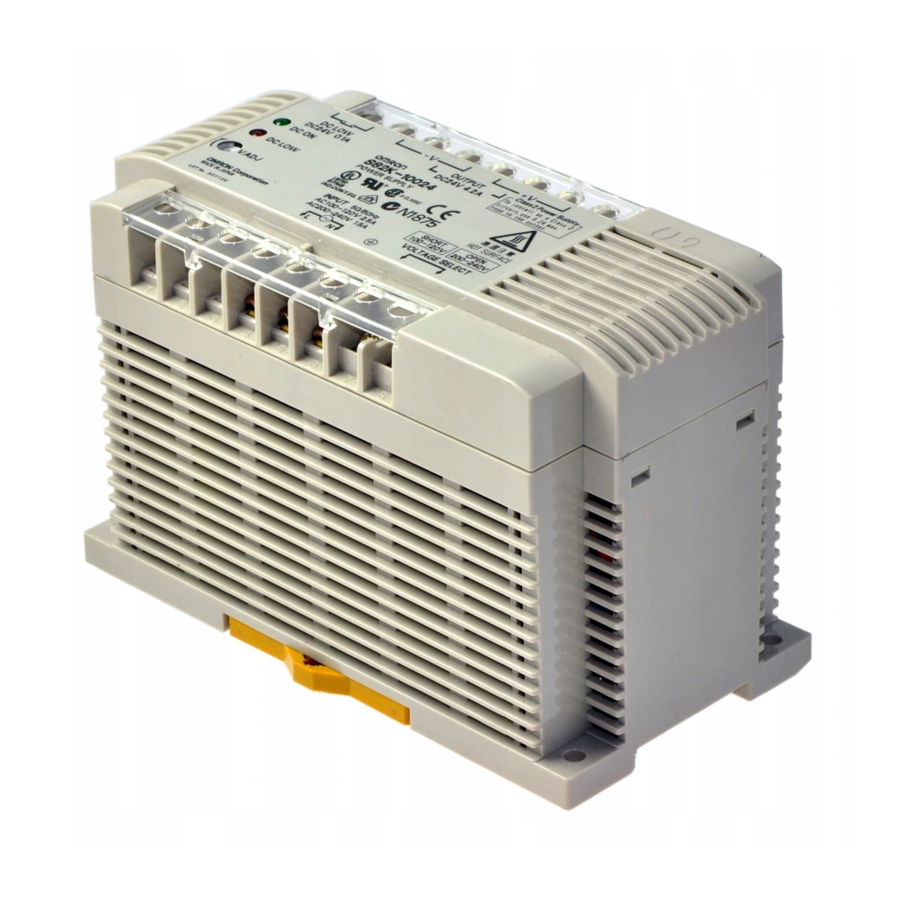

015: 15 W 100: 100 W 15: +15 VDC 030: 30 W Ordering Information ■ List of Models Note: For details on normal stock models, contact your nearest OMRON representative. Power ratings Output voltage Output current Function Configuration Models Output Undervoltage alarm indicator/output 0.6 A...
S82K Specifications ■ Ratings/Characteristics Power ratings S82K (See note 1.) Single output Dual output Single output Item 7.5 W 7.5 W 15 W 30 W Efficiency (typical) 60% min. (Varies depending 64% min. (Varies depending on specifications) 66% min. (Varies depending on specifications) on specifications) Input Voltage 100 to 240 VAC (85 to 264 VAC)
Page 3
S82K Power ratings S82K S82K-P (See note 1.) Single output Item 50 W 90 W 100 W 90 W 100 W Efficiency (typical) 80% min. (Varies depending on specifications) Input Voltage 100 to 240 VAC (85 to 264 VAC) 100 V (85 to 132 VAC)/200 V (170 to 264 VAC) Selectable (See note 2.) Not possible Frequency...
Page 4
S82K Connections ■ Block Diagrams S82K-003@@ (3 W) S82K-007@@ (7.5 W, Single Output) Fuse (1 A) AC (L) Noise filter − V AC (N) Inrush current Rectifier/ Rectifier/ protection smoothing smoothing circuit circuit circuit Undervoltage Drive control alarm circuit indicator Overload Detection detection...
Page 5
S82K S82K-09024 (90 W) Rectifier/ S82K-10024 (100 W) smoothing Fuse (5 A) circuit AC (L) Noise filter − V AC (N) Inrush current Rectifier/ protection smoothing circuit circuit 100 or 200 V Selectable terminals (See note.) Drive control circuit Undervoltage alarm indicator/output Overload Detection...
Page 6
S82K Construction and Nomenclature ■ Nomenclature S82K-003@@ S82K-007@@ S82K-007@@ (Dual outputs) S82K-015@@ (Single Output) S82K-030@@ S82K-@09024 S82K-05024 S82K-@10024 Parallel/Single Operation Selector (Only for S82K- P10024) 1. DC Output Terminals (−V and +V): Connect the load lines to these terminals. 2. AC Input Terminals (L and N): Connect the input lines to these terminals. 3.
S82K Engineering Data ■ Derating Curve (A: Standard mounting, B: Face-up mounting) 3-/7.5-/15-/30-/50-/100-W 100-W Models without PFC 100-W Models with PFC Models (S82K-10024) (S82K-P10024) Single-Unit Operation Parallel Operation Parallel Operation Installation A Installation A Installation B Installation A S82K-P10024: 85-VAC input S82K-P10024: 85-VAC input Installation B...
Page 8
S82K ■ Overload Protection The Power Supply is provided with an overload protection function that protects the Power Supply from possible damage by overcurrent. When the output current rises above 105% min. of the rated current, the protection function is triggered, automatically decreasing the output voltage. When the output current falls within the rated range, the overload protection function is automatically cleared.
S82K ■ Inrush Current, Startup Time, Hold Time Input OFF Input ON AC input voltage Inrush current on input application AC input current 96.5% Output voltage Hold time Startup time: 100 to 1000 ms (20 ms min.) max. depending on the model. ■...
Page 10
S82K Dimensions Note: All units are in millimeters unless otherwise indicated. Mounting Brackets (Supplied) S82K-003@@ (3 W) Used when not mounting the Power Supply directly S82K-007@@ (7.5 W) on the DIN rail. Two, 4.5±0.1 dia. 25±0.15 35±0.15 27±0.1 37.5±0.1 Mounting Holes Attached Mounting Bracket...
S82K S82K-030@@ (30 W) S82K-05024 (50 W) Four, 4.5 dia. M3.5 with square washer (Sliding: 7 max.) Mounting Holes Four, M4 or 4.5-dia. mounting holes Note: If more than one Power Supply is installed in a row, keep a distance of 20 mm min.
Page 12
S82K ■ DIN Rail (Order Separately) Mounting Rail (Material: Aluminum) PFP-100N/PFP-50N PFP-100N2 7.3±0.15 35±0.3 27 29.2 35±0.3 27±0.15 15 25 25 15 15 25 15 (5) 1,000 1,000 (500) (See note.) (See note.) Note: The values shown in parentheses are for the PFP-50N. ■...
S82K Safety Precautions Refer to Safety Precautions for All Power Supplies. To dismount the Power Supply, pull down portion (C) with a flat-blade !CAUTION screwdriver and pull out the Power Supply. Minor electric shock, fire, or Product failure may occasionally occur. Do not disassemble, modify, or repair the Product or touch the interior of the Product.
S82K Series Operation Parallel Operation Two Power Supplies can be operated in series. S82K 100-W models can be operated in parallel. Only 90-W/100-W models can be operated in series. Perform parallel operation with power supplies satisfying the same Series operation, however, is not possible for the + outputs and – model.
