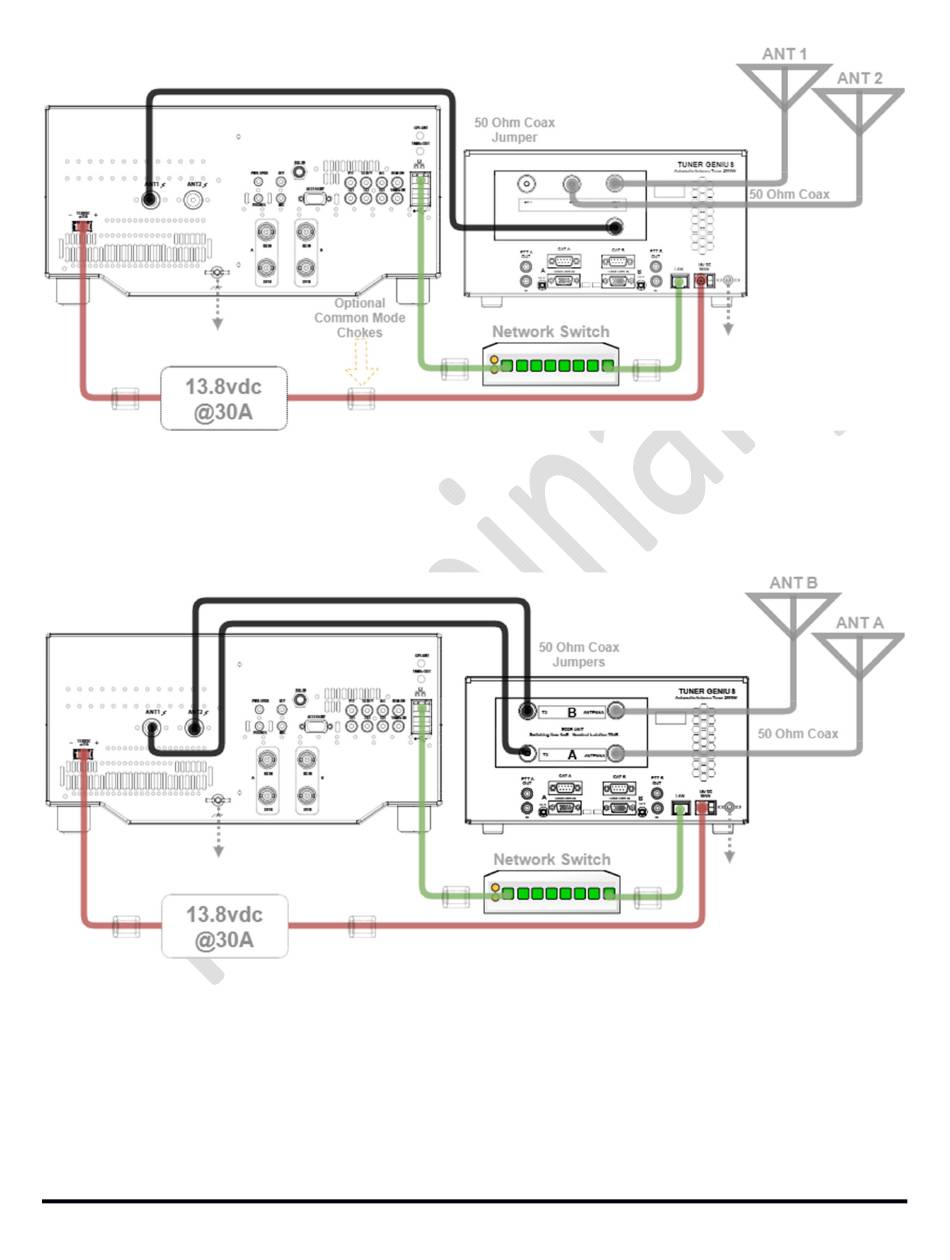

Figure 6-1 Basic 1x3 Connection Diagram
The typical wiring configuration for the 1x3 tuner is shown in the diagram above. The wiring for the SO2R tuner
and using the tuner with the Power Genius XL is similar and depicted below.
Figure 6-2 Basic SO2R Connection Diagram
Page 16 of 72
Copyright 2021 FlexRadio. All Rights Reserved.
7 June 2021(FW:0.9.12, Utility: 0.9.12)
