CopperLink Model CL1300MDE
Long Range Ethernet Extender
User Manual
Important
This is a Class A device and is intended for use in a light industrial environment. It is
not intended nor approved for use in an industrial or residential environment.
REGULATORY MODEL NUMBER: 03343D1-002
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Part Number: 07MCL1300MDE, Rev. A
Revised: November 14, 2018
Advertisement
Table of Contents
Related Manuals for Patton CopperLink CL1300MDE
Summary of Contents for Patton CopperLink CL1300MDE
- Page 1 This is a Class A device and is intended for use in a light industrial environment. It is not intended nor approved for use in an industrial or residential environment. REGULATORY MODEL NUMBER: 03343D1-002 Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Part Number: 07MCL1300MDE, Rev. A Revised: November 14, 2018...
- Page 2 E-mail: support@patton.com Trademark Statement The term CopperLink is a trademark of Patton Electronics Company. All other trademarks presented in this document are the property of their respective owners. Copyright © 2018, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Electronics assumes no liability for errors that may appear in this document.
-
Page 3: Summary Table Of Contents
........................44 Contacting Patton for Compliance information . -
Page 4: Table Of Contents
Table of Contents Summary Table of Contents ..........................3 Table of Contents . - Page 5 ........................44 Introduction ................................45 Contact information..............................45 Contacting Patton Technical Services for Free Support ...................45 Warranty Service and Returned Merchandise Authorizations (RMAs)..............45 Warranty coverage ............................45...
- Page 6 CopperLink Model CL1300MDE User Manual Table of Contents Ethernet Protocols ..............................50 MTBF ...................................51 Power ..................................51 Operating Temp..............................51 Humidity ................................51 Altitude .................................51 Enclosure................................51 Dimensions ................................51 Weight ..................................51 Compliance ................................51 Factory replacement parts and accessories ......................52 Factory replacement parts and accessories ......................53 Interface pinouts...
-
Page 7: List Of Figures
List of Figures CopperLink Model CL1300MDE ............15 Terminal block power connection . -
Page 8: List Of Tables
List of Tables General conventions ..............12 TCPAM/Rates . -
Page 9: About This Guide
35 describes how use the browser interface that allows you to configure and manage the • Ethernet extender Chapter 6 on page 40 describes how to connect a PC to configure the CopperLink CL1300MDE using the • • Chapter 7... -
Page 10: Precautions
CopperLink Model 1300MDE User Manual Precautions Notes, cautions, and warnings, which have the following meanings, are used throughout this guide to help you become aware of potential problems. Warnings are intended to prevent safety hazards that could result in per- sonal injury. -
Page 11: Safety When Working With Electricity
CopperLink Model 1300MDE User Manual Safety when working with electricity • Do not open the device when the power cord is con- nected. For systems without a power switch and without an external power adapter, line voltages are present WARNING within the device when the power cord is connected. -
Page 12: General Observations
CopperLink Model 1300MDE User Manual In accordance with the requirements of council directive 2002/96/ EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate this product from other waste and scrap and deliver to the WEEE collection system in your country for recycling. - Page 13 CopperLink Model 1300MDE User Manual Table 1. General conventions Convention Meaning Helvetica type Indicates the names of fields or windows. Garamond bold type Indicates the names of command buttons that execute an action. Angle brackets indicate function and keyboard keys, such as <SHIFT>, <CTRL>, <...
-
Page 14: General Information
Chapter 1 General information Chapter contents CopperLink Model CL1300MDE overview ......................15 Features .................................15 Power input connector ............................16 External AC universal power supply ........................16 External 48 VDC power supply ........................17... -

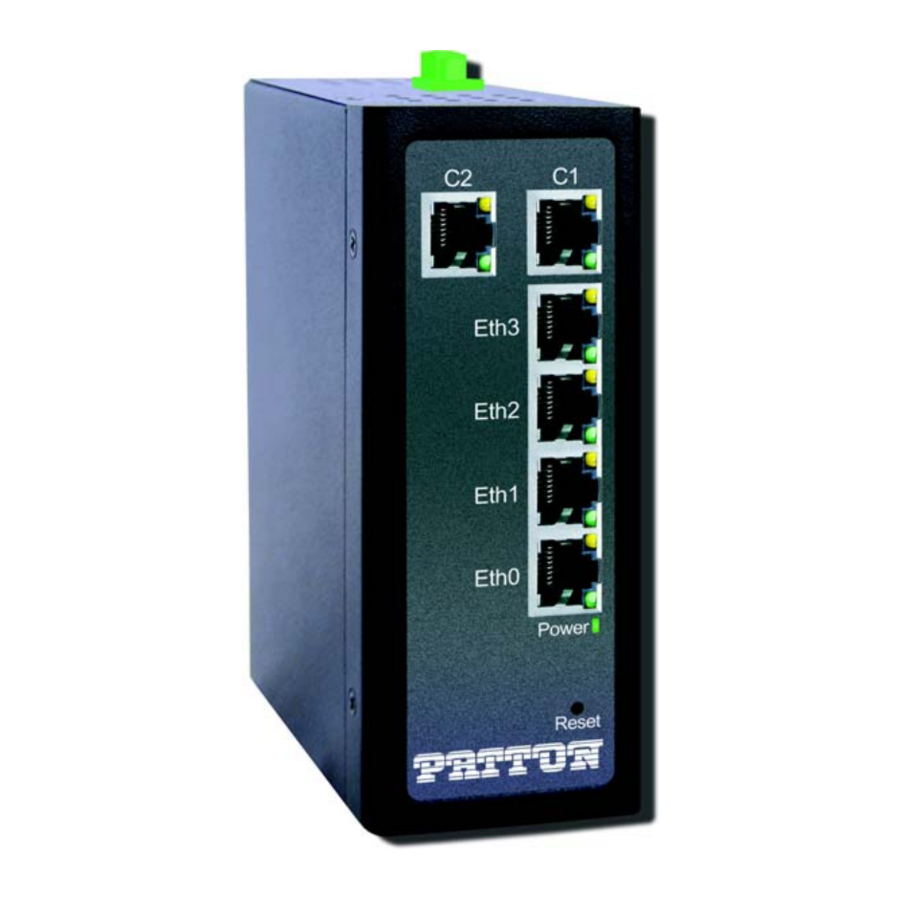

Page 15: Copperlink Model Cl1300Mde Overview
Ethernet connections across distances up to 10 km (6.2 miles) per hop. Whether you need connect to a remote offices, kiosks, guard stations, train stations, digital sensors or IP cameras—Patton Ethernet Extenders offer the industry’s optimum combination of speed and distance. Patton’s CopperLink Ethernet Extenders ensure hassle-free set-up and oper- ation, while achieving the highest possible line rate for the required distance and electromagnetic environment. -
Page 16: Power Input Connector
Automatic learning, Aging, and Filtering—Keeps local traffic local, ensuring efficient utilization of the long- range link. • Made in the USA—This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Power input connector Depending on the SKU, the CopperLink device comes with an included AC power supply or it can be con- nected to a DC power supply that is not included. -
Page 17: External 48 Vdc Power Supply
CopperLink Model CL1300MDE User Manual 1 • General information External 48 VDC power supply The external DC adapter shall be a listed limited power source that incorporates a disconnect device and shall be positioned within easy reach of the operator. The interconnecting cables CAUTION shall be rated for the proper voltage, current, anticipated tem- perature, flammability, and mechanical serviceability... -
Page 18: Installation
Chapter 2 Installation Chapter contents Introduction ................................19 Configuring DIP Switch S2...........................19 Hardware (DIP switch) configuration ......................21 Installing the device ...............................21 DIN rail installation ............................22 Connecting the CopperLink Line Interfaces ......................23 Connecting the 10/100Base-T Ethernet Interfaces ....................26 Connecting Power ..............................26 External AC universal power supply ........................26 DC power supply ............................27... -
Page 19: Introduction
CopperLink Model CL1300MDE User Manual 2 • Installation Introduction The Interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and CAUTION mechanical serviceability. To install the CL1300MDE Ethernet Extender, do the following: 1. -
Page 20: Removing Dip Switch Cover
CopperLink Model CL1300MDE User Manual 2 • Installation Figure 3. Removing DIP switch cover figure 4 shows the orientation of the DIP switches in the On and Off positions. Figure 4. DIP switch S2 orientation Configuring DIP Switch S2... -
Page 21: Hardware (Dip Switch) Configuration
CopperLink Model CL1300MDE User Manual 2 • Installation Hardware (DIP switch) configuration To disable the DIP switches: 1. Power-off the device. 2. Set all DIP switches to off (see figure 4 on page 20). To enable the DIP switches: 1. Power-off the device. 2. -
Page 22: Din Rail Installation
CopperLink Model CL1300MDE User Manual 2 • Installation DIN rail installation 1. The DIN rail mounting clip on the unit (see figure 5) can be attached to top hat NS 35/7.5 (35 H × 7.5 D mm) and NS 35/15 (35 H × 15 D mm) section types of DIN rail (see figure Figure 5. -
Page 23: Connecting The Copperlink Line Interfaces
CopperLink Model CL1300MDE User Manual 2 • Installation Figure 7. Installing the device onto the DIN rail 3. Rotate the device until the lower DIN rail lip snaps into the lower DIN rail clip slot (see callout 2 on figure The device has been installed on the DIN rail;... -
Page 24: Cl1300Mde Ports
CopperLink Model CL1300MDE User Manual 2 • Installation Figure 8. CL1300MDE ports Figure 9. CL1300MDE (RJ-45) twisted pair line interfaces Figure 10 on page 25 shows the topologies that are available for connecting CL1300MDE extenders. Keep the following in mind: •... -
Page 25: Cl1300Mde Topologies
CopperLink Model CL1300MDE User Manual 2 • Installation Figure 10. CL1300MDE Topologies Connecting the CopperLink Line Interfaces... -
Page 26: Connecting The 10/100Base-T Ethernet Interfaces
CopperLink Model CL1300MDE User Manual 2 • Installation Connecting the 10/100Base-T Ethernet Interfaces The Long Range Ethernet Extender has four unshielded RJ-45 auto-MDIX10/‘100Base-T interfaces. These are designed to connect directly to a 10/100Base-TX network. Connecting Power If you will be using an AC power supply to provide power to the CL1300MDE, go to section “External AC universal power supply”. -
Page 27: Dc Power Supply
CopperLink Model CL1300MDE User Manual 2 • Installation Figure 12. Terminal block +, –,. and ground wiring labels The CL1300MDE is ready to be powered up. Refer to chapter 3, “Operation” on page 29. DC power supply The CL1300MDE accepts 12 to 48 VDC input. To connect wires from the DC power source to the terminal block on the CL1300MDE, do the following: Keep the length of the ground wire as short as possible. - Page 28 CopperLink Model CL1300MDE User Manual 2 • Installation 7. Use a small flat-tip screwdriver to secure the wire into the terminal block. 8. Route a wire from the negative (–) output of the DC source to the – terminal on the CL1300MDE termi- nal block (see figure 12 on page 27).
-
Page 29: Operation
Chapter 3 Operation Chapter contents Applying power ..............................30 Status LEDs................................30... -
Page 30: Applying Power
CopperLink Model CL1300MDE User Manual 3 • Operation Applying power Once the CL1300MDE is properly configured and installed, it operates transparently. Do the following to apply power to the CL1300MDE: • AC power supply: Plug it into the outlet that has the ground wire connected to it •... -
Page 31: Cl1300Mde Front Panel Leds
CopperLink Model CL1300MDE User Manual 3 • Operation Table 3. CL1300MDE front panel LEDs LED Name Description LED Function CL1314MDE CL1324MDE Power Green LED Indicates power is applied. Indicates power is applied. CopperLink Yellow LED Not applicable Port is configured as DOWN. Line Ports C1 (Pair 1 wires) Port is in data mode. -
Page 32: Configuration
Chapter 4 Configuration Chapter contents Introduction ................................33... -
Page 33: Introduction
CopperLink Model CL1300MDE User Manual 4 • Configuration Introduction The CL1300MDE Ethernet Extender is pre-configured to work in multi-drop applications. If the factory installed configuration needs to be adjusted, you can configure the device by using: • DIP switches (the CL1300MDE must be powered off while configuring the switches) •... - Page 34 Refer to the appropriate chapter to configure and manage the CL1300MDE: • To use the Wizard Interface on a web browser, see Chapter 5 on page 35 • To connect a PC to configure the CopperLink CL1300MDE using the CLI, see Chapter 6 on page 40 Introduction...
-
Page 35: Wizard Interface
Chapter 5 Wizard Interface Chapter contents Introduction ................................36 Connect with Web GUI............................36... -
Page 36: Introduction
Note procedures, and troubleshooting, refer to the CopperLink 1300 Series User Manual available online at www.patton.com/manuals Connect with Web GUI 1. Connect via web browser to the default address 192.168.200.10. 2. Log in with the default username admin without a password. -
Page 37: Web Wizard Home Page
CopperLink Model CL1300MDE User Manual 5 • Wizard Interface Figure 15. Web Wizard Home page Once the wizard icon is selected, you will have the options of supported set-ups as shown in Figure 16. Click on CL1300MDE Basic Setup. Figure 16. Choose Wizard Clicking on the CL1300MDE Basic Setup will bring up the most common configurations used on the Copper- Link Ethernet Extenders. - Page 38 CopperLink Model CL1300MDE User Manual 5 • Wizard Interface User Access: (optional configuration) Users may change the password for the admin user. • Management IP Setup: Static: Create your own IP address, netmask and gateway (optional–the gateway is required for remote management).
-
Page 39: Configure Preview Option
CopperLink Model CL1300MDE User Manual 5 • Wizard Interface Figure 18. Configure Preview Option When the user chooses the save and reboot option a prompt will ask you to confirm. If the configuration is cor- rect, select Yes as shown in figure Figure 19. -
Page 40: Cli Operation And Configuration
Chapter 6 CLI Operation and Configuration Chapter contents Introduction ................................41 Connect with SSH ..............................41 Change the IP address (default: 192.168.200.10) ....................41 Change the default username..........................41 Save the Configuration ............................41 CopperLink Line Commands..........................41 CopperLink Ports ............................41 Local and Remote ............................42 Annex Type ..............................42 Line Rate Configuration ..........................42... -
Page 41: Introduction
CopperLink Model CL1300MDE User Manual 6 • CLI Operation and Configuration Introduction You can connect a PC to configure the CopperLink CL1300MDE using the CLI. Connect with SSH 1. Connect the Ethernet cable. 2. Connect the power supply. 3. Connect via SSH to the extender through remote or local IP addresses: –... -
Page 42: Local And Remote
This will set the Ethernet Extender as Local or Remote. Local is typically used at the network, Remote is typi- cally used at the remote device or remote network. Your CopperLink CL1300MDE is already configured with port C1 as Remote and C2 as Local. -
Page 43: Shutdown
CopperLink Model CL1300MDE User Manual 6 • CLI Operation and Configuration Shutdown Disables or enables CopperLink port(s). node~(prt-dsl)[0/0]# [no] shutdown Exit Goes back to parent mode. node~(prt-dsl)[0/0]# exit Show Displays all the configured options of the CL1300MDE CopperLink port(s) node(cfg)# show port line 0 0 node(cfg)# show port line 1 0 CopperLink Line Commands... -
Page 44: Contacting Patton For
Chapter 7 Contacting Patton for assistance Chapter contents Introduction ................................45 Contact information..............................45 Contacting Patton Technical Services for Free Support ...................45 Warranty Service and Returned Merchandise Authorizations (RMAs)..............45 Warranty coverage ............................45 Out-of-warranty service ..........................46 Returns for credit ............................46 Return for credit policy ..........................46... -
Page 45: Introduction
(RMA). Contact information Patton Electronics offers a wide array of free technical services. If you have questions about any of our other products we recommend you begin your search for answers by using our technical knowledge base. Here, we have gathered together many of the more commonly asked questions and compiled them into a searchable database to help you quickly solve your problems. -
Page 46: Out-Of-Warranty Service
RMA#: xxxx 7622 Rickenbacker Dr. Gaithersburg, MD 20879-4773 USA Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return shipping costs. Warranty Service and Returned Merchandise Authorizations (RMAs) -
Page 47: Compliance Information
Appendix A Compliance information Chapter contents Compliance ................................48 ................................48 Safety ................................48 Radio and TV Interference (FCC Part 15) ......................48 EC Declaration of Conformity ..........................48 Authorized European Representative ........................48... -
Page 48: Compliance
CopperLink Model CL1300MDE User Manual A • Compliance information Compliance • FCC Part 15, Class A • EN55032, Class A • EN55024 Safety • UL 62368-1/CSA C22.2 N0. 62368-1 • IEC/62368-1 • AS/NZS 62368-1 Radio and TV Interference (FCC Part 15) This equipment generates and uses radio frequency energy, and if not installed and used properly—that is, in strict accordance with the manufacturer's instructions—may cause interference to radio and television recep- tion. -
Page 49: Specifications
Appendix B Specifications Chapter contents Protocol.................................50 Transmission Line ..............................50 Line Rates................................50 Front Panel LED Status Indicators ........................50 Line Coding ................................50 Transmission line ..............................50 Line Interface ................................50 Management .................................50 Ethernet Protocols ..............................50 MTBF ...................................51 Power ..................................51 Operating Temp..............................51 Humidity ................................51 Altitude .................................51 Enclosure................................51 Dimensions... -
Page 50: Protocol
CopperLink Model CL1300MDE User Manual B • Specifications Protocol Transparent to higher layer protocols Transmission Line 1 (2-wire) pair or 2 (4-wire) pairs Line Rates Rates from 192 kbps to 15.3 Mbps, selectable in all 64 kbps increments up to 15.3 Mbps Front Panel LED Status Indicators WAN: Link, LAN (Ethernet): Link/Act, Power. -
Page 51: Mtbf
CopperLink Model CL1300MDE User Manual B • Specifications • • DHCP Client/Server • • DNS Server/Relay MTBF 4.7 years Power External 90–260 VAC, 50–60 Hz (Universal Input) via terminal block or 12 to 48 VDC input from DC power source via terminal block Operating Temp. -
Page 52: Factory Replacement Parts And Accessories
Appendix C Factory replacement parts and accessories Chapter contents Factory replacement parts and accessories ......................53... -
Page 53: Factory Replacement Parts And Accessories
CopperLink Model CL1300MDE User Manual C • Factory replacement parts and accessories Factory replacement parts and accessories Power Supplies PS-03671H1-004 100-240VAC (12V, DC/2A) Wall mount power adapter with terminal block Power Adapters 12-130 European replacement plug 12-129 American replacement plug 12-131 United Kingdom plug 12-132... -
Page 54: Interface Pinouts
Appendix D Interface pinouts Chapter contents CopperLink line ports C1 and C2 .........................55 2-wire (CL1314MDE) ............................55 4-wire (CL1324MDE) ............................55 Ethernet ports 0 to 3 .............................55... -
Page 55: Copperlink Line Ports C1 And C2
CopperLink Model CL1300MDE User Manual D • Interface pinouts CopperLink line ports C1 and C2 2-wire (CL1314MDE) RJ-45 connector Pin # Signal No connection No connection No connection Ring No connection No connection No connection 4-wire (CL1324MDE) RJ-45 connector Pin # Signal Line 1 Tip Line 1 Ring... -
Page 56: E Installing 552-Gs2 High Speed Surge Protectors
Appendix E Installing 552-GS2 High Speed Surge Protectors Chapter contents Introduction ................................57 Installing the 552-GS2 surge protectors.........................57... -
Page 57: Introduction
E • Installing 552-GS2 High Speed Surge Protectors Introduction The potential threats to CopperLink devices are vast: lightning, AC power induction, electrostatic discharge, ground potential differences, EMI/RFI interference and more. The Patton Model 552 has been designed to greatly reduce these risks. Patton's Connect-IT Model 552 (see figure 20) is easy to install. - Page 58 CopperLink Model CL1300MDE User Manual E • Installing 552-GS2 High Speed Surge Protectors Figure 21. How to connect the Model 552 Do not over-tighten the ground connection. CAUTION 5. If it is already connected, unplug (disconnect) the existing connection between the CopperLink Line Out cable and the CL1314MDE’s C1 port (see figure 21).
- Page 59 CopperLink Model CL1300MDE User Manual E • Installing 552-GS2 High Speed Surge Protectors Congratulations! The surge protectors are installed. If there are additional CL1314MDE devices to protect, repeat steps 1 through 8 until all 552-GS2 surge pro- tectors have been installed according to the topology that is being used (see figure 10 on page 25).
