User Manual
CopperLink™ Model CL2300
Long Range Ethernet Extender
Quick Start Guide
Important
trial environment. It is not intended nor approved for use in an industrial or res-
Part Number: 07MCL2300-QS, Rev. B
Revised: May 17, 2018
—This is a Class A device and is intended for use in a light indus-
idential environment.
Technical Support: +1 (301) 975-1007
Sales Office: +1 (301) 975-1000
E-mail: support@patton.com
Web: www.patton.com
Advertisement
Table of Contents
Related Manuals for Patton CopperLink CL2300
Summary of Contents for Patton CopperLink CL2300
-

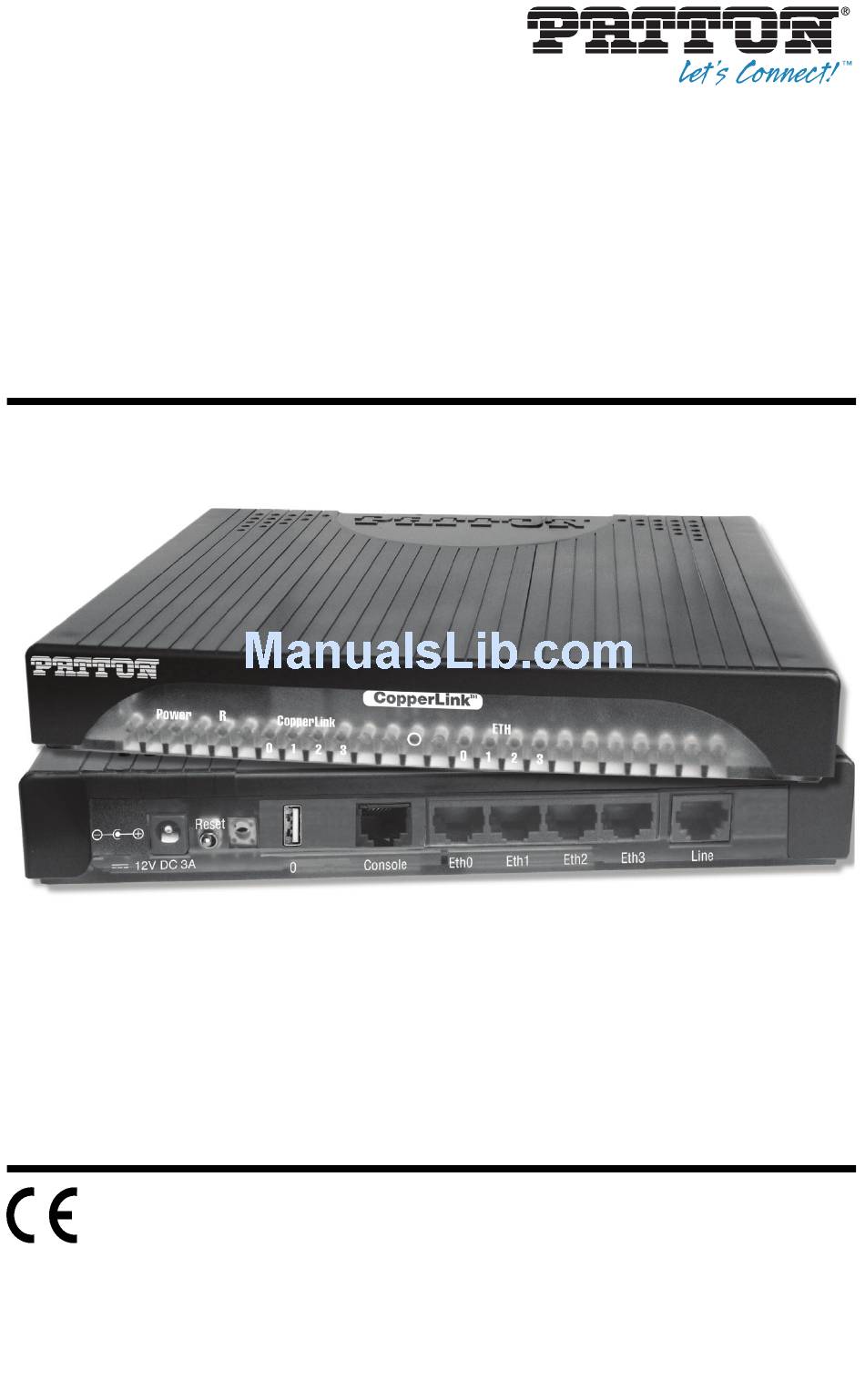

Page 1: Quick Start Guide
It is not intended nor approved for use in an industrial or res- idential environment. Part Number: 07MCL2300-QS, Rev. B Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 Revised: May 17, 2018 E-mail: support@patton.com Web: www.patton.com... -
Page 2: Hardware Installation
• This device contains no user serviceable parts. The equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING • The external power adapter shall be a listed Limited Power Source. The mains outlet that is utilized to power... - Page 3 Depending on the extender model, it will have a two-wire, four- wire or eight-wire interface. Observe the signal/pin relationship on the CL2300’s Line interface jack for each pair in Figure Figure 2. CL2300 (RJ-45) twisted pair line interface CopperLink CL2300 Quick Start Guide...
-
Page 4: Connecting Interfaces
Install the supplied RJ-45-to-RJ-45 cable with the DB9-RJ45 adapter between the CL2300 RS-232 port and an open serial port on your computer. If you need to assem- ble your own cable, refer to the pinout diagram in figure 5 on page 5. CopperLink CL2300 Quick Start Guide... - Page 5 The power connection is made via the barrel jack on the rear panel of the CL2300. No configuration is necessary for the power supply. 2.4 Ethernet Extender Status LEDs The LEDs indicate the status of power, the WAN (CopperLink), and Ethernet connec- tions. CopperLink CL2300 Quick Start Guide...
-
Page 6: Cli Operation And Configuration
Data is passing over the port. Figure 7. CL2300 front panel 3.0 CLI Operation and Configuration You can connect a PC to configure the CopperLink CL2300 using the CLI. 3.1 Connect with SSH Connect the Ethernet cable. 2. Connect the power supply. - Page 7 Local and Remote: typically used at the network, Remote is typically used at the remote device or remote network. Your CopperLink CL2300 when received in a 2pk is already configured one CL2300 as Local and one CL2300 as Remote. node(cfg)# mode {local|remote} Please consult support before changing this setting.
- Page 8 Note higher TC-PAM rates will increase maximum payload rates Modulation Scheme: available but will decrease distance. Your CopperLink CL2300 is defaulted to automati- cally select the optimal setting. Please consult manual for rate reach chart to determine your optimal setting if you choose to hard set this value. Higher TC-PAM rates are ideal for shorter cable runs offering max symmetrical (upstream/downstream) speeds of 11.4 Mbps (TCPAM64) and 15.3 Mbps (TCPAM128) per pair.
-
Page 9: Additional Information
Show: node(cfg)# show prt-line 0 4.0 Additional Information For detailed information about configuring and operating guidance, set up procedures, and troubleshooting, refer to the CopperLink CL2300 Series User Manual available online at www.patton.com/manuals 5.0 Customer and Technical Support Toll-Free VoIP support: call sip:support@patton.com... -
Page 10: Pstn Regulatory
The equipment must also be installed using an acceptable method of connection. In some cases, the company’s inside wiring associated with a single line individual service may be extended by means of a certified CopperLink CL2300 Quick Start Guide... -
Page 11: Authorized European Representative
The conformity to the above directive is indicated by the CE sign on the device. The signed Declaration of Conformity can be downloaded from www.patton.com/certifi- cations/. 7.0 Authorized European Representative Martin Green European Compliance Services Limited Milestone house Longcot Road CopperLink CL2300 Quick Start Guide... -
Page 12: Copyright Statement
8.0 Copyright statement Copyright © 2013–2018, Patton Electronics Company. All rights reserved. The information in this document is subject to change without notice. Patton Electron- ics assumes no liability for errors that may appear in this document. 9.0 Trademarks statement The term OnSite is a trademark of Patton Electronics Company.
