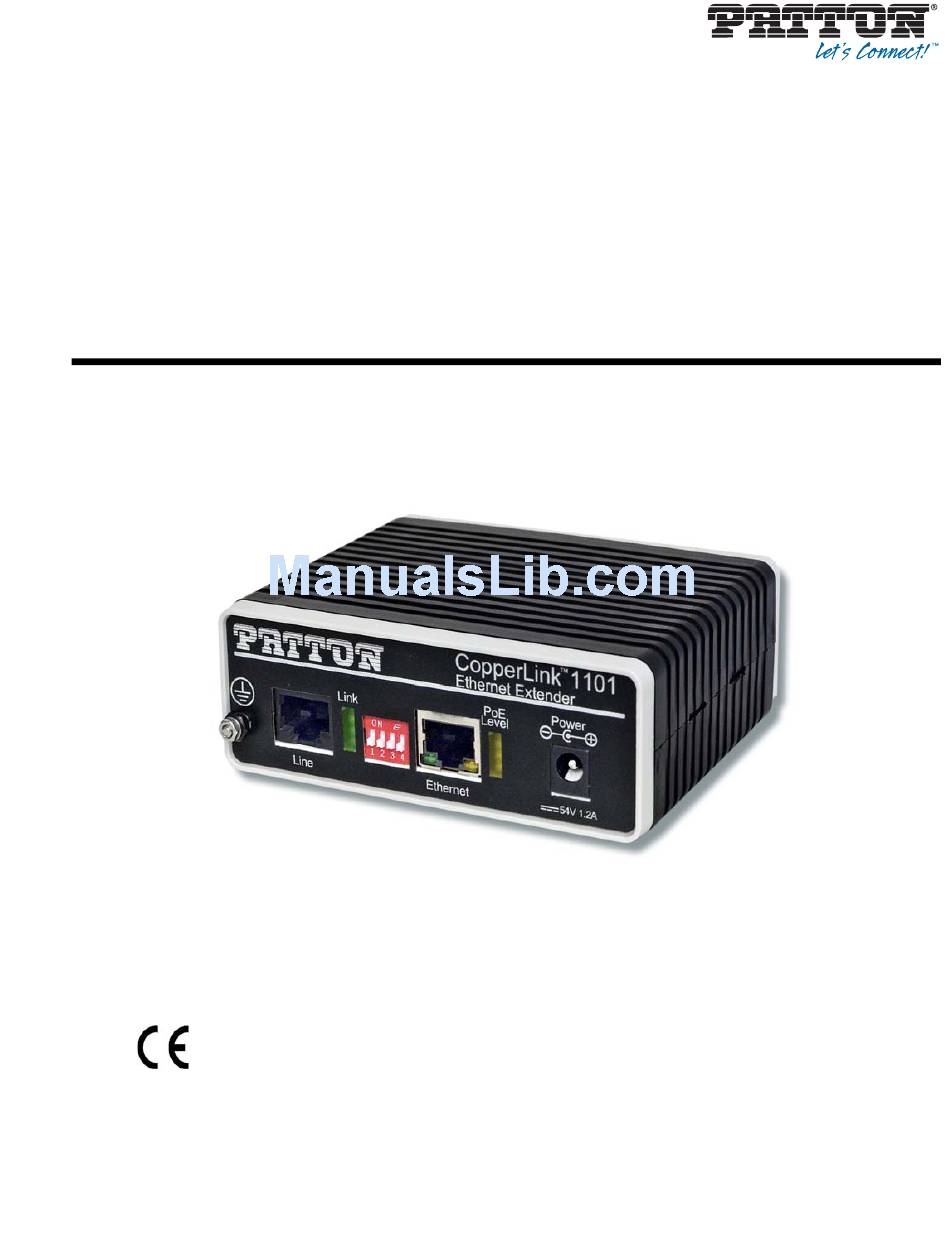

CopperLink™ Model 1101
Line Power PoE Ethernet Extender

User Manual

This is a Class A device and is not intended for use in a residential environment.
Sales Office:
+1 (301) 975-1000
Technical Support:
+1 (301) 975-1007
E-mail:
support@patton.com
WWW:
www.patton.com
Part Number: 07MCL1101-UM, Rev. A
Revised: September 22, 2016

Advertisement

Table of Contents
loading

Summary of Contents for Patton copperlink 1101

  • Page 1: User Manual

    User Manual This is a Class A device and is not intended for use in a residential environment. Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 E-mail: support@patton.com WWW: www.patton.com Part Number: 07MCL1101-UM, Rev. A Revised: September 22, 2016...
  • Page 2 Under no condition shall Patton Electronics be liable for any damages incurred by the use of this product. These damages include, but are not limited to, the following: lost profits, lost savings and incidental or consequential damages arising from the use of or inability to use this product.
  • Page 3: Summary Table Of Contents

    3 Operation................................26 Contacting Patton for assistance.
  • Page 4: Table Of Contents

    ........................28 Contacting Patton for Introduction ................................29...
  • Page 5 CopperLink Line Power 1101 PoE Extender User Manual Shipping Instructions ............................30 ...........................31 Compliance Information Regulatory Information ............................32...
  • Page 6: List Of Figures

    List of Figures Typical application ..............12 Data path .
  • Page 7: List Of Tables

    List of Tables RJ-45 wire modes ............... 21 Terminal block wire modes .
  • Page 8: About This Guide

    CL1101 power and data performance values for RG59 coaxial and twisted-pair cables For best results, read the contents of this guide before you install the CopperLink 1101. Precautions Notes and cautions, which have the following meanings, are used throughout this guide to help you become aware of potential Router modem problems.
  • Page 9: Safety When Working With Electricity

    CopperLink Line Power 1101 PoE Extender User Manual About This Guide The alert symbol and CAUTION heading indicate a potential hazard. Strictly follow the instructions to avoid property damage. CAUTION The shock hazard symbol and CAUTION heading indicate a potential electric shock hazard. Strictly follow the instructions to avoid property damage caused by electric shock.
  • Page 10 CopperLink Line Power 1101 PoE Extender User Manual About This Guide In accordance with the requirements of council directive 2002/ 96/EC on Waste of Electrical and Electronic Equipment (WEEE), ensure that at end-of-life you separate this product from other waste and scrap and deliver to the WEEE collection system in your country for recycling.
  • Page 11: General Information

    Chapter 1 General information Chapter contents Overview ................................12 Features .................................12 Description................................12 Unit Definitions ..............................13 Data ..................................13 Power ..................................13 Power-across-link application ........................13 Remote-power application ........................14 Front panel description............................15 Power Transmission ..............................16 General Background ............................16 Wire Specifics ..............................17 CL1101 specifics .............................18...
  • Page 12: Overview

    1 • General information Overview Thank you for purchasing this Patton Electronics product. This product has been thoroughly inspected and tested and is warranted for one year for parts and labor. If any questions or problems arise during installation or use of this product, contact Patton Electronics Technical Support at +(301) 975-1007.
  • Page 13: Unit Definitions

    CopperLink 1101 Line Power PoE Extender User Manual 1 • General information Unit Definitions Local Customer Endpoint (LCE)—Customer equipment that is typically closer to the centralized location. This is often times a server or a network switch. Remote Customer Endpoint (RCE)—Customer equipment that is typically far away from other devices. It is often a phone, camera, or other small device.
  • Page 14: Remote-Power Application

    CopperLink 1101 Line Power PoE Extender User Manual 1 • General information If the RCE’s input power is grounded in any way, it will short out the power being sent which could cause equip- ment damage or personal injury. WARNING The Remote Ethernet Extender receives power.
  • Page 15: Front Panel Description

    CopperLink 1101 Line Power PoE Extender User Manual 1 • General information Figure 5. CL1101 front panels Front panel description The following describes the ports, indicators, and grounding stud for the CL1101 (see figure • Grounding stud—Prevents high voltage surges from reaching human accessible components (the shielded connector).
  • Page 16: Power Transmission

    CopperLink 1101 Line Power PoE Extender User Manual 1 • General information Used for data extension only mode. The power supply provided is 12 VDC center positive. ∕ For Power Across Link, this jack can be used to supplement power available at the PoE port.
  • Page 17: Wire Specifics

    This effec- tively means seeing a 27 V drop across the wire (when using the Patton PoE power supply) when it is sending the maximum amount of power.
  • Page 18: Cl1101 Specifics

    CopperLink 1101 Line Power PoE Extender User Manual 1 • General information CL1101 specifics The above example is completely hypothetical but is realistic. Unfortunately, it is often difficult to determine the resistance of pre-existing cables. To make things easier, the unit has the ability to approximate the resistance of the wire and determine what the maximum amount of power could be available on extender's PoE port.
  • Page 19: Installation

    Chapter 2 Installation Chapter contents Planning the Installation............................20 Connecting the Line Interface ..........................20 Connecting the RJ-45 Line Interface ......................21 Connecting the Terminal Block Line Interface ....................22 Connecting the BNC (Coaxial) Line Interface ....................22 Connecting the 10/100Base-T Ethernet Interface....................22 Connecting the Grounding Stud ...........................23 Connecting Power ..............................24...
  • Page 20: Planning The Installation

    CopperLink 1101 Line Power PoE Extender User Manual 2 • Installation Planning the Installation The Interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and CAUTION mechanical serviceability.
  • Page 21: Connecting The Rj-45 Line Interface

    CopperLink 1101 Line Power PoE Extender User Manual 2 • Installation Never connect the Line interface to a PoE port because equip- ment damage may occur. CAUTION Connecting the RJ-45 Line Interface Do the following to connect the Line interface.
  • Page 22: Connecting The Terminal Block Line Interface

    CopperLink 1101 Line Power PoE Extender User Manual 2 • Installation Connecting the Terminal Block Line Interface Do the following to connect the Line interface: 1. To connect the line interface of the CL1101/TB simply use a single pair of 16–28 AWG wires to connect...
  • Page 23: Connecting The Grounding Stud

    3. Connect the other end of the ground wire to an electrical ground nearest the CL1101. Often this will be on an electrical panel or sub panel. If you cannot locate a nearby electrical ground, contact Patton Techni- cal Support at (301) 975-1000 to discuss an alternative grounding solution.
  • Page 24: Connecting Power

    CopperLink 1101 Line Power PoE Extender User Manual 2 • Installation Connecting Power The interconnecting cables shall be acceptable for external use and shall be rated for the proper application with respect to volt- age, current, anticipated temperature, flammability, and CAUTION mechanical serviceability.
  • Page 25: Dip Switch Settings

    CopperLink 1101 Line Power PoE Extender User Manual 2 • Installation Table 5. DIP switch settings Switch (left to right) Function Down: 100 Mb, Down Down: 2-wire mode Remote only** Up: 10 Mb Down Up or Up Down: 4-wire mode...
  • Page 26: Operation

    Chapter 3 Operation Chapter contents Introduction ................................27 Front Panel LED Status Indicators ........................27...
  • Page 27: Introduction

    CopperLink 1101 Line Power PoE Extender User Manual 3 • Operation Introduction Once the CL1101s are properly installed, they should operate transparently. No user settings required. This section describes reading the LED status monitors. Front Panel LED Status Indicators The CL1101 provides the following status indicators: •...
  • Page 28: Contacting Patton For

    Chapter 4 Contacting Patton for assistance Chapter contents Introduction ................................29 Contact information..............................29 Warranty Service and Returned Merchandise Authorizations (RMAs)..............29 Warranty Coverage ............................29 Out-of-Warranty Service ..........................29 Returns for Credit ............................29 Return-for-Credit Policy ...........................30 RMA Numbers ...............................30 Shipping Instructions ............................30...
  • Page 29: Introduction

    If you have ordered the wrong equipment or you are dissatisfied in any way, please contact us to request an RMA number to accept your return. Patton is not responsible for equipment returned without a Return Authorization.
  • Page 30: Rma Numbers

    RMA#: xxxx 7622 Rickenbacker Dr. Gaithersburg, MD 20879-4773 USA Patton will ship the equipment back to you in the same manner you ship it to us. Patton will pay the return shipping costs. Warranty Service and Returned Merchandise Authorizations (RMAs)
  • Page 31: Compliance Information

    Appendix A Compliance Information Chapter contents Regulatory Information ............................32 EMC Directive: ..............................32 Low-Voltage Directive (Safety): ........................32 PSTN: ................................32 Radio and TV Interference (FCC Part 15) ......................32 CE Declaration of Conformity ..........................32 Authorized European Representative ........................32 Service ...................................33...
  • Page 32: Regulatory Information

    This device is in compliance with the essential requirements and other relevant provisions of Directive 2004/ 108/EC relating to electromagnetic compatibility and Directive 2006/95/EC relating to electrical equipment designed for use within certain voltage limits. The Declaration of Conformity may be obtained from Patton Electronics, Inc at www.patton.com/certifications.
  • Page 33: Service

    A • Compliance Information Service All warranty and non-warranty repairs must be returned freight prepaid and insured to Patton Electronics. All returns must have a Return Materials Authorization number on the outside of the shipping container. This number may be obtained from Patton Electronics Technical Services at: Tel: +1 (301) 975-1007 •...
  • Page 34: Specifications

    Appendix B Specifications Chapter contents Line Connector ..............................35 LAN Connectors ..............................35 Transmission Line ..............................35 LED Status Indicators ............................35 Power Supply ................................35 External AC option: ............................35 Physical .................................35 Operating Temperature Range ........................35 Humidity ................................35 Dimensions ..............................35...
  • Page 35: Line Connector

    CopperLink 1101 Line Power PoE Extender User Manual B • Specifications Line Connector • RJ-45, Terminal Block, or BNC Coaxial LAN Connectors • 1 RJ-45, 10/100Base-T, IEEE 802.3 Ethernet (Local) IEEE 802.3af/at PoE Ethernet (Remote) • Transmission Line 1 to 4 pairs of 2-wire or coaxial (CL1101/BNC)
  • Page 36: C Factory Replacement Parts And Accessories

    Appendix C Factory Replacement Parts and Accessories Chapter contents CL1101/CL1101 Factory Replacement Parts and Accessories ................37...
  • Page 37: Cl1101/Cl1101 Factory Replacement Parts And Accessories

    CopperLink 1101 Line Power PoE Extender User Manual C • Factory Replacement Parts and Accessories CL1101/CL1101 Factory Replacement Parts and Accessories Patton Model # Description Base Models C1101/L/P/RJ45/EUI CopperLink Power Plus 10/100 Local Power Extender; 1x 10/100; RJ45 Line; 100–240VAC C1101/R/PAFA/RJ45/E CopperLink Power Plus 10/100 Remote Extender w/PoE;...
  • Page 38: D Interface Pin Assignment

    Appendix D Interface Pin Assignment Chapter contents 10/100Base-T Interface ............................39 Ethernet (RJ-45) .............................39 Line Interface ................................40 RJ-45 ................................40 Terminal Block ...............................40 BNC (Coaxial) ..............................41...
  • Page 39: 10/100Base-T Interface

    CopperLink 1101 Line Power PoE Extender User Manual D • Interface Pin Assignment 10/100Base-T Interface Ethernet (RJ-45) Figure 10. CL1101 10/100Base-T RJ-45 Connector Pin-out Table 8. RJ-45 wire modes Voltage Function Mode A + Tx + Mode A + Tx –...
  • Page 40: Line Interface

    CopperLink 1101 Line Power PoE Extender User Manual D • Interface Pin Assignment Line Interface RJ-45 Figure 11. RJ-45 pin-out Table 9. RJ-45 wire modes Pair Voltage – – – – These devices are polarity sensitive. Note Note 2-wire mode—non-standard pin-out •...
  • Page 41: Bnc (Coaxial)

    CopperLink 1101 Line Power PoE Extender User Manual D • Interface Pin Assignment BNC (Coaxial) Table 11. Coaxial (BNC) wire modes Pair Voltage Inner Outer – Line Interface...
  • Page 42: E Line Rate & Reach Chart

    Appendix E Line Rate & Reach Chart Chapter contents CL1101 Power & Data Performance (Twisted Pair)....................43 CL1101 Power Performance (Twisted Pair) ......................43 CL1101 Power & Data Performance (RG59)......................44 CL1101 Power Performance (RG59) ........................44...
  • Page 43: Cl1101 Power & Data Performance (Twisted Pair)

    CopperLink 1101 Line Power PoE Extender User Manual E • Line Rate & Reach Chart CL1101 Power & Data Performance (Twisted Pair) Table 12. CL1101 power & data performance over twisted-pair wires 10 Mbps 100 Mbps 2 wire 4 wire...
  • Page 44: Cl1101 Power & Data Performance (Rg59)

    CopperLink 1101 Line Power PoE Extender User Manual E • Line Rate & Reach Chart CL1101 Power & Data Performance (RG59) Table 14. CL1101 power & data performance over RG59 coaxial cable 10 Mbps 100 Mbps Min. distance feet (meters) (1.83)
