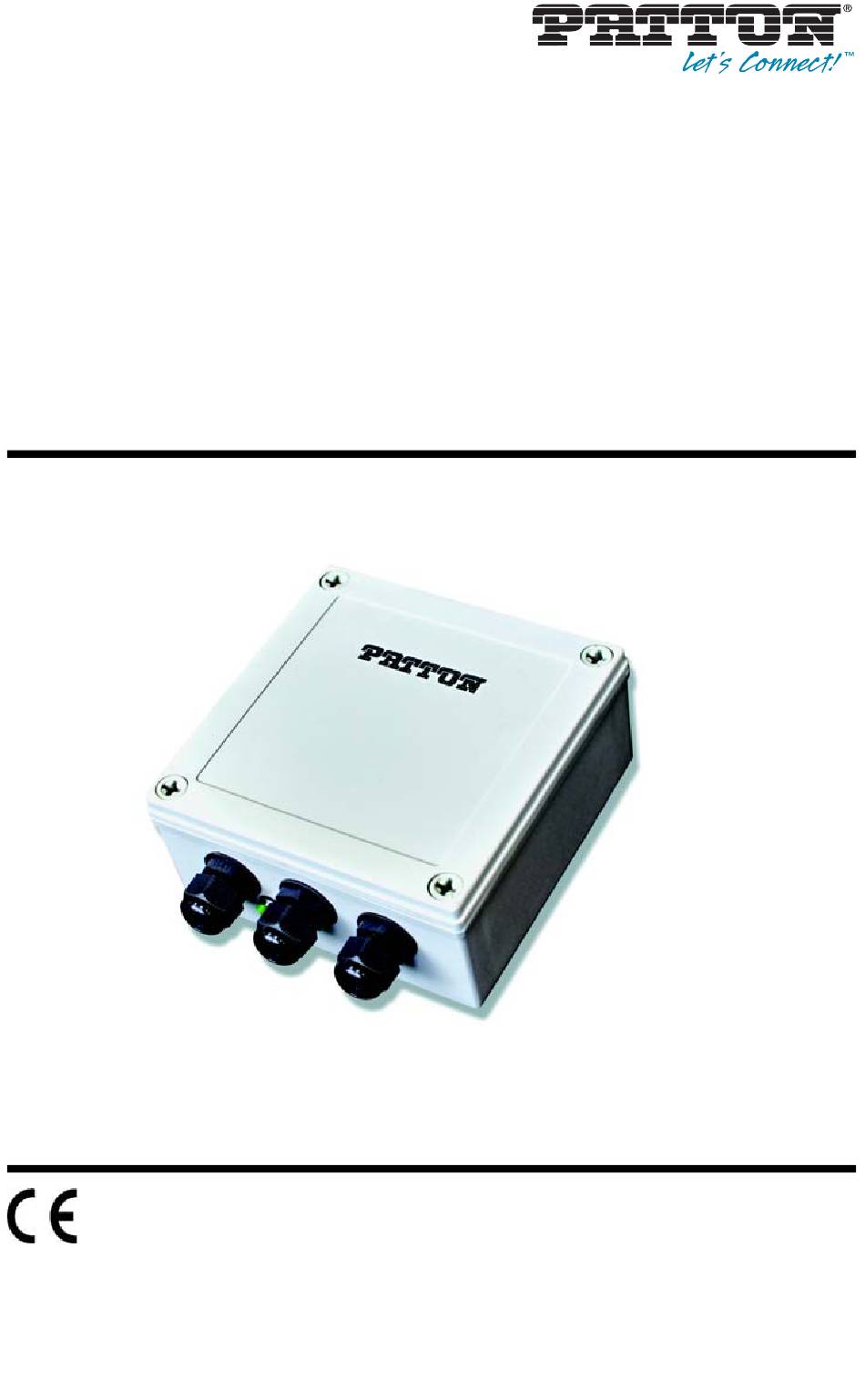

CopperLink™ Model 1101E/IP67
Outdoor Rated
Power over Ethernet Extender
Quick Start Guide
Important—This is a Class A device and is intended for use in a light
industrial environment. It is not intended nor approved for use in
Part Number: 07MCL1101E_IP67-QS, Rev. A
Revised: February 17, 2017
Additional Information:
http://www.patton.com/manuals/CL1101-UM.pdf
an industrial or residential environment.
Sales Office: +1 (301) 975-1000
Technical Support: +1 (301) 975-1007
E-mail: support@patton.com
Web: www.patton.com
Advertisement
Related Manuals for Patton CopperLink 1101E/IP67
Summary of Contents for Patton CopperLink 1101E/IP67
- Page 1 It is not intended nor approved for use in an industrial or residential environment. Part Number: 07MCL1101E_IP67-QS, Rev. A Sales Office: +1 (301) 975-1000 Technical Support: +1 (301) 975-1007 Revised: February 17, 2017 E-mail: support@patton.com Additional Information: Web: www.patton.com http://www.patton.com/manuals/CL1101-UM.pdf...
- Page 2 This device contains no user serviceable parts. The • equipment shall be returned to Patton Electronics for repairs, or repaired by qualified service personnel. WARNING The external power adapter shall be a listed Limited • Power Source. The mains outlet that is utilized to power...
- Page 3 If you will be installing a Local CL11O1E/IP67, go to section 2.0 “Planning the Local CL1101E/IP67 Installation” on page 4. Otherwise, to install a Remote CL1101E/IP67, go to section 3.0 “Planning the Remote CL1101E/IP67 Installation” on page 5. CopperLink 1101E/IP67 Quick Start Guide...
- Page 4 0.157 inch [4 mm] to 0.252 inch [6.4 mm]. If your cables do not fit these specifications, CAUTION contact support@patton.com before using them outdoors. To install the Local CL1101E/IP67 Ethernet Extender (see figure 2), do the following: Figure 2.
- Page 5 0.157 inch [4 mm] to 0.252 inch [6.4 mm]. If your cables do not fit these specifications, CAUTION contact support@patton.com before using them outdoors. To install the Remote CL1101E/IP67 Ethernet Extender (see figure 3), do the following: Figure 3.
-
Page 6: Connecting The Line Interface
Removing the top cover 2. Loosen the IP67 cable glands by turning them counter clockwise. (For the Local unit, see figure 5 on page 7. For the Remote unit, see figure 6 on page 7). CopperLink 1101E/IP67 Quick Start Guide... - Page 7 Figure 5. Local unit cable glands Figure 6. Remote unit cable glands 3. Run an un-terminated data/line cable through the gland labeled Line. CopperLink 1101E/IP67 Quick Start Guide...
-
Page 8: Connecting The 10/100Base-T Ethernet Interface
Run an un-terminated Ethernet cable through the gland marked Ethernet. 2. Terminate the cable with an RJ-45 connector. The RJ-45 Ethernet port is an Auto- MDIX 10/100Base-T that connects to a 10/100Base-T device or network. Figure 8 CopperLink 1101E/IP67 Quick Start Guide... - Page 9 Mode A and Mode B are not configurable, the remote unit requires dif- ferent hardware. For Mode A order: CL1101/PAFA/x/EUI-2PK (Ethernet Extender Kit) • CL1101/PAFA/x/EUI (Remote PoE Extender) • For Mode B order: CL1101/PAFB/x/EUI-2PK (Ethernet Extender Kit) • CL1101/PAFB/x/EUI (Remote PoE Extender) • CopperLink 1101E/IP67 Quick Start Guide...
- Page 10 5. Connect the other end of the ground wire to an electrical ground nearest the CL1101E/IP67. Often this will be on an electrical panel or sub panel. If you cannot locate a nearby electrical ground, contact Patton Technical Support at (301) 975- 1000 to discuss an alternative grounding solution.
-
Page 11: Configuring The Dip Switch
Down Up or Up Down: 4-wire Up: Legacy Function mode PoE mode Up Up: 8-wire mode* Down: IEEE802.3af *8-wire mode 10 Mb not supported, will default to 10 Mb 4-wire mode **Switch has no function on Local unit CopperLink 1101E/IP67 Quick Start Guide... -
Page 12: Customer And Technical Support
9.0 Customer and Technical Support Toll-Free VoIP support: call sip:support@patton.com with a VoIP SIP phone Online support: www.patton.com E-mail support: support@patton.com—answered within 1 business day Telephone support: 8:00 am to 5:00 pm Standard +1 (301) 975-1007 Monday - Friday EST (1300 to 2200 UTC/GMT)
