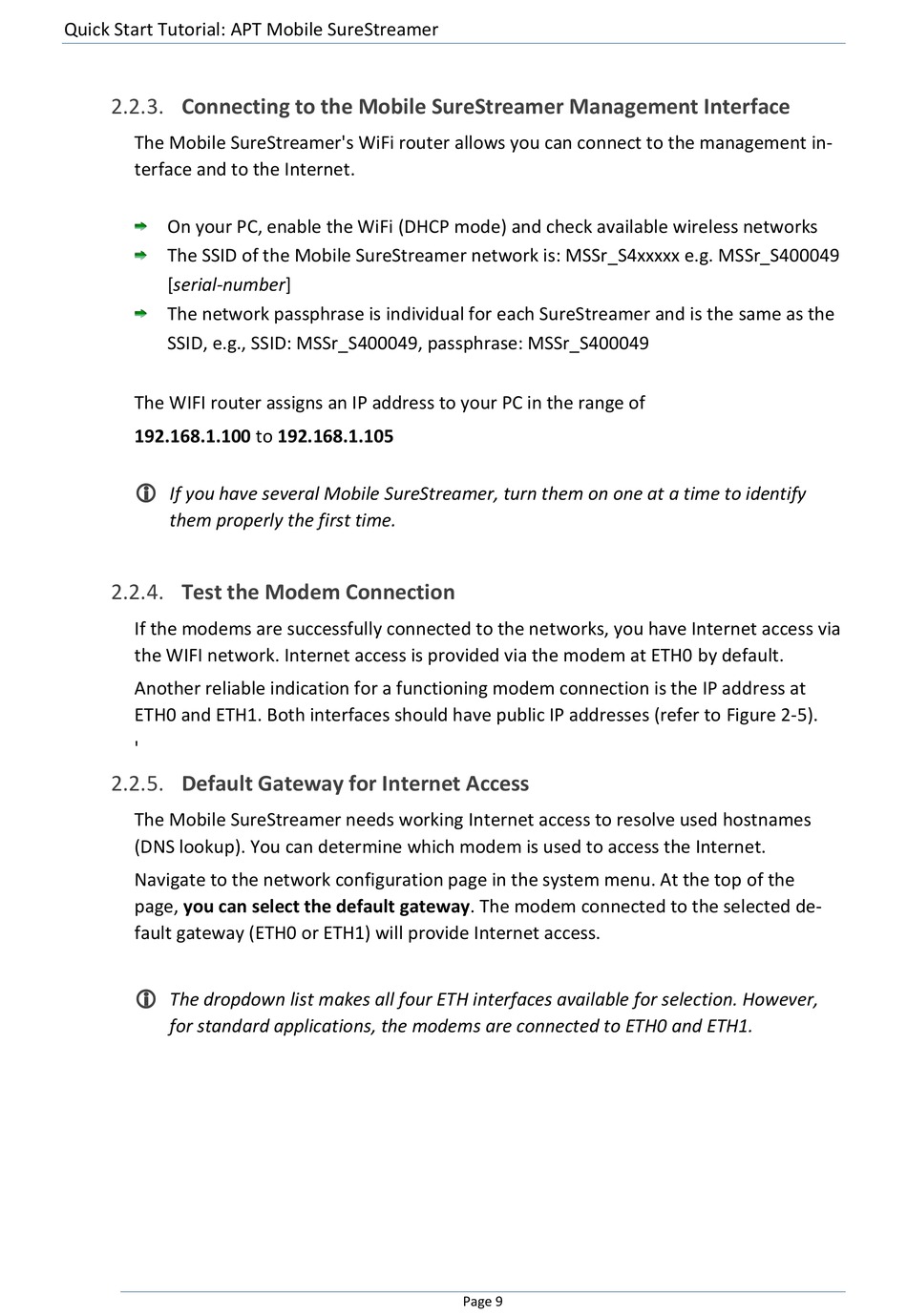

Quick Start Tutorial: APT Mobile SureStreamer

2.2.3. Connecting to the Mobile SureStreamer Management Interface

The Mobile SureStreamer's WiFi router allows you can connect to the management in-
terface and to the Internet.
On your PC, enable the WiFi (DHCP mode) and check available wireless networks
The SSID of the Mobile SureStreamer network is: MSSr_S4xxxxx e.g. MSSr_S400049
[serial-number]
The network passphrase is individual for each SureStreamer and is the same as the
SSID, e.g., SSID: MSSr_S400049, passphrase: MSSr_S400049
The WIFI router assigns an IP address to your PC in the range of
192.168.1.100 to 192.168.1.105

If you have several Mobile SureStreamer, turn them on one at a time to identify
them properly the first time.

2.2.4. Test the Modem Connection

If the modems are successfully connected to the networks, you have Internet access via
the WIFI network. Internet access is provided via the modem at ETH0 by default.
Another reliable indication for a functioning modem connection is the IP address at
ETH0 and ETH1. Both interfaces should have public IP addresses (refer to Figure 2-5).
'

2.2.5. Default Gateway for Internet Access

The Mobile SureStreamer needs working Internet access to resolve used hostnames
(DNS lookup). You can determine which modem is used to access the Internet.
Navigate to the network configuration page in the system menu. At the top of the
page, you can select the default gateway. The modem connected to the selected de-
fault gateway (ETH0 or ETH1) will provide Internet access.

The dropdown list makes all four ETH interfaces available for selection. However,
for standard applications, the modems are connected to ETH0 and ETH1.
Page 9
