Summary of Contents for Worldcast Systems SureStreamer

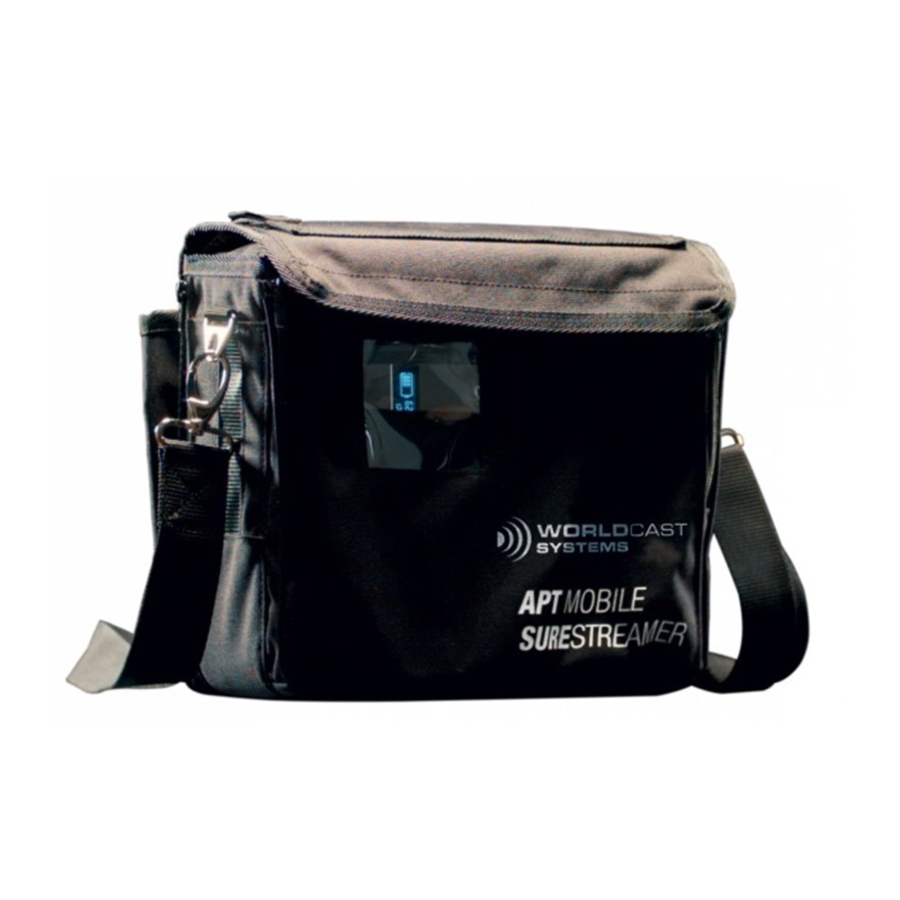

- Page 1 APT Mobile SureStreamer Quick Start Tutorial System Release 3.2.x | Document Version 3.0. | release/update: April 2020 WorldCast Systems S.A.S 20 avenue Neil Armstrong – 33700 Mérignac (Bordeaux Métropole) – France www.worldcastsystems.com...
-
Page 2: Table Of Contents
4.3.3. Modify the WAN Streams ..................17 4.3.4. Determining the public IP Addresses of your Studio Endpoint ......18 4.3.5. Apply the new profile to the Mobile SureStreamer ..........19 4.4. APT IP C ..............19 ONFIGURE YOUR ODEC IN THE TUDIO 4.4.1. - Page 3 APPENDIX B - SMARTPHONE AUDIO DEVICES ................44 B1.0 ................44 OBILE TREAMER ONFIGURATIONS B1.1 Setup the Connection Profile on the Mobile SureStreamer ........44 B1.1.1 Chose a Connection Template ................... 44 B1.1.2 Edit the Template ....................... 45 B1.1.3 Edit the LAN Stream ....................45 B1.1.4...
-
Page 4: Safety Precautions
Quick Start Tutorial: APT Mobile SureStreamer Safety Precautions This equipment complies with international mechanical and electrical standards. To maintain this com- pliance, as well as to ensure proper and safe working conditions and avoid electrical shocks and fire hazards, you must comply with the following recommendations: ... -
Page 5: First Examination
4. 2x Network cables connecting the SureStreamer unit to the Modems 5. 1x Network cable connecting the SureStreamer unit to the WiFi Router 6. 1x Network cable + 1 RJ45 adapter ready to connect the SureStreamer unit to your media streamer 7. -
Page 6: System Wiring And Modem Preparation
2.0 System Wiring and Modem Preparation 2.1. Mobile SureStreamer Wiring (for information only) The Mobile SureStreamer consists of several components that are pre-wired as follows. The diagram below may help you if you need to replace components or change the standard wiring. -
Page 7: Preparing The System
Quick Start Tutorial: APT Mobile SureStreamer 2.2. Preparing the System 2.2.1. Setting up the Modems The modems are pre-configured and will automatically connect* to your provider's network when the SIM cards are inserted, and the battery is connected. The modems are located in the bag. -
Page 8: The Battery
When the battery is sufficiently charged, and the voltage selection LED shows 12VDC, connect the Mobile SureStreamer to the battery. Inside the battery box is the connec- tion cable that you connect to the output socket of the battery (blue arrow on image). -
Page 9: Connecting To The Mobile Surestreamer Management Interface
The WIFI router assigns an IP address to your PC in the range of 192.168.1.100 to 192.168.1.105 If you have several Mobile SureStreamer, turn them on one at a time to identify them properly the first time. 2.2.4. Test the Modem Connection If the modems are successfully connected to the networks, you have Internet access via the WIFI network. -
Page 10: Open The Management Gui
Confirm the warning regarding the default credentials. Click on "Connection Configuration" Figure 2-5 Shows the status page of the mobile SureStreamer Clicking on the Connection Configuration link on the status page leads to the page where you can manage and generate profiles. -
Page 11: Getting Started
Quick Start Tutorial: APT Mobile SureStreamer 3.0 Getting Started Depending on the type of content you want to transmit with the SureStreamer, there are two transfer modes available. The configurations for both modes are different, so they are described in separate chapters. -
Page 12: Configure Surestream For Ip Audio Codecs
This is the LAN port of the Mobile SureStreamer. Connect your IP Codec to it. Figure 4-1 shows the physical connection of your Codec to the Mobile SureStreamer Your Codec's IP address needs to be in the range 192.168.102.xxx / subnet mask 255.255.255.0. -
Page 13: Create A New Connection Profile Using A Template
Chose a Connection Template Select the "Bi-directional Dialer" template (#100) suitable for the Mobile SureStreamer in the field and click on "Profiles/Save as…" to create a copy of it. We rename this copy to "My Profile." A profile consists of multiple streams. -
Page 14: Connecting To The Studio Endpoint
The diagram also shows the streams which you need to modify, the LAN stream (stream #0) between the Codec and the Mobile SureStreamer, and four WAN streams (streams #1 to #4) routed via the air interfaces (modems) to your Codec at the end- point. -
Page 15: Modify The Lan Stream (Stream #0)
IP port 5004 is set. In case your Codec does not support this IP port (5004), you can change the port of stream #0 on the Mobile SureStreamer accord- ingly. Figure 4-5 highlights the LAN stream (#0) between the Codec and the SureStreamer on the streams table Page 15... - Page 16 Quick Start Tutorial: APT Mobile SureStreamer Modify the LAN Stream (continued) In the LAN stream, no or very few parameters need to be changed. Follow the recommendations. Figure 4-6 shows the default setting of the LAN stream Notes:________________________________________________________ _____________________________________________________________ _____________________________________________________________...
-
Page 17: Modify The Wan Streams
Quick Start Tutorial: APT Mobile SureStreamer 4.3.3. Modify the WAN Streams WAN Streams #1 to #4 The changes described below must be performed on all four WAN streams. Follow the recommendations. Figure 4-7 shows the configuration of the WAN streams. -
Page 18: Determining The Public Ip Addresses Of Your Studio Endpoint
(ISP). If the Studio Gateway Router has a static IP address, you can use it as the destina- tion address in the Mobile SureStreamer. If the IP address is assigned dynamically, then we recommend that you set up hostnames for your studio codec using a Dynamic DNS service. -
Page 19: Apply The New Profile To The Mobile Surestreamer
Apply the new profile to the unit 4.4.1. Manage the Port Forwarding on your Gateway Router The streams from your Mobile SureStreamer reach your Codec in the studio through the Internet Gateway, which is your (xDSL, cable, etc.) router. If you have connected your Codec to your network in the next step, you can configure port forwarding in the Gateway Router. -
Page 20: Connect The Codec To Your Network
Internet, you can only connect it to the Codec once. In this case, you must enter the same destination address in the Mobile SureStreamer for all four WAN streams. You can use the second, unoccupied ETH interface to manage the Codec. -
Page 21: Open The Management Gui
Quick Start Tutorial: APT Mobile SureStreamer 4.4.3. Open the Management GUI Open your browser and enter the address: https://192.168.100.110 Log in: User: Admin; password: admin (case sensitive) The status page of the Management GUI opens. Confirm the warning regarding the default credentials. -
Page 22: Configure The Network Setting Of The Codec
Quick Start Tutorial: APT Mobile SureStreamer 4.4.4. Configure the Network Setting of the Codec On this page, you find all the network settings of the Codec. Also, note the page tabs on top for advanced settings. Change the IP addresses for ETH0 and ETH1 so that you can connect the Codec to the DSL/Cable Modem network(s). -
Page 23: Applying Hostnames (Dynamic Dns)
Quick Start Tutorial: APT Mobile SureStreamer 4.4.5. Applying Hostnames (Dynamic DNS) You do not necessarily need to use the hostnames, but this addressing has signifi- cant advantages. The following instruction uses hostnames. Open the tab "Dynamic DNS" to enter your DDNS account and the previously regis- tered hostname. -
Page 24: Create A New Connection Profile
4.4.6. Create a new Connection Profile An APT Codec with a SureStream license receives all four IP streams directly; therefore, you do not need a SureStreamer in the studio. On the Unit Status Page, click on "Connections Configuration." Figure 4-12 highlights the short cut link to the stream configuration page... - Page 25 Quick Start Tutorial: APT Mobile SureStreamer Create a new Connection Profile (continued) The profiling procedure is the same as in the Mobile SureStreamer; however, there are no templates. The screenshot shows a new profile (My Profile) that is a copy of the empty "Default Profile."...
-
Page 26: Create The Streams Of The New Profile
The streams you create here are complementary to the streams in the Mobile SureStreamer. This means that you must select the same IP ports and the ETH interfac- es that correspond to the specified destination IP addresses in the Mobile SureStreamer profile. -
Page 27: Create Four Bi-Directional Streams
Quick Start Tutorial: APT Mobile SureStreamer 4.4.8. Create four Bi-directional Streams First, create the four streams, as shown in the table. These streams are complementary to the streams of the Mobile SureStreamer. The numbers in parentheses correspond to the complementary WAN streams of the SureStreamer. -
Page 28: Create The Combined (Monitor) Stream
Quick Start Tutorial: APT Mobile SureStreamer 4.4.9. Create the Combined (Monitor) Stream The Combined Stream is a virtual stream that makes the performance of the SureStream Group visible. This stream is not needed for the transfer and, therefore, must get the IP address "null."... -
Page 29: Apply The New Profile To The Unit
4.4.10. Apply the new profile to the unit The screenshot shows a fully configured profile of the IP Codec (My Profile). This profile connects with four streams to the Mobile SureStreamer in the field. Figure 4-14 shows the configured connection profile (My Profile) You can now save the profile without activating it if you click on "Save,"... -
Page 30: Test The Connection
Start the stream of your remote Codec, which is connected to the Mobile SureStreamer. As soon as the Mobile SureStreamer receives this stream (LAN), the streams to your Studio codec will be activated. If the LAN stream is not recognized by the Mobile SureStreamer, the Mobile SureStreamer will not establish the WAN streams to your studio codec. -
Page 31: Surestreamvpn
The Devices in LAN A stream through the transparent tunnel to the IP addresses of devices in LAN B. For this to work, the ETH2 address of the local SureStreamer must be the gateway ad- dress of your connected IP device entry. -
Page 32: Management Gui (Mobile Surestreamer)
The status page of the Management GUI opens. Confirm the warning regarding the default credentials. Figure 5-2 shows the status page of the Mobile SureStreamer with the shortcuts to the VPN configuration page and the network settings (top right). Before you start with the actual VPN configuration, first check the network settings and change them according to your network environment. -
Page 33: Surestreamvpn Network Settings - Client
5.2.1. SureStreamVPN Network Settings – Client The Mobile SureStreamer is configured as the VPN client in LAN A. Figure 5-3 shows LAN A with the Mobile SureStreamer in VPN client mode ETH Interface Configurations and Modes First, check the configuration modes. By default, they are set ready to connect to the mobile network. -
Page 34: Eth Interface Ip Configurations
VPN configuration page via the Connection Menu (refer to Figure 5-2). Depending on the selected VPN operating mode, the configuration page shows differ- ent options. We start with the VPN client mode on the mobile SureStreamer (refer to section 5.4). -
Page 35: Surestreamvpn Operational Modes
There are three operational modes in total. 5.3.1.1. SureStreamVPN Client In VPN client mode, the Mobile SureStreamer connects a local network at the client lo- cation to a local network at the VPN server location. The Mobile SureStreamer estab- lishes the connection via its air-interface, which consists of two 4G modems. -
Page 36: Surestreamvpn (Client) - Mobile Surestreamer
Quick Start Tutorial: APT Mobile SureStreamer 5.4. SureStreamVPN (client) – Mobile SureStreamer Figure 5-5 shows the VPN Client configurations 5.4.1. Enable VPN (tick box) Activate the VPN; now, the configurations of the SureStreamVPN option appear. 5.4.2. Compression (tick box) Recommendation: Keep compression off for the first setup This setting must be the same on the Client and Server 5.4.3. -
Page 37: Max Jitter In Milliseconds
5.4.9. Advanced – Masquerading IP Masquerade can be left disabled where there is only one device attached to a Mobile SureStreamer VPN LAN interface, and the traffic will not be further routed at the server end of the tunnel. After you have completed the settings for the client, save them, and continue with the VPN server settings on the SureStreamer at your studio endpoint. -
Page 38: Surestreamvpn - Studio Surestreamer
Quick Start Tutorial: APT Mobile SureStreamer 5.5. SureStreamVPN – Studio SureStreamer 5.5.1. Network Settings Connect your PC to ETH3 of the Studio SureStreamer and open a web browser to con- nect the management interface. Open your browser and enter the address: https://192.168.103.113. -
Page 39: Eth Interface Configuration Mode
WAN interfaces (ETH0 & ETH1) are in DHCP client mode and configured by the Internet Gateway Router. Adjust the setting according to your network. ETH2 is your LAN interface, where you connect your media streamer/receiver (vid- eo/audio). ETH3 allows you access to the management of the SureStreamer but not to the VPN tunnel. ... -
Page 40: Surestreamvpn Server
Quick Start Tutorial: APT Mobile SureStreamer 5.6. SureStreamVPN Server Figure 5-7 shows the VPN Server configuration of the studio SureStreamer 5.6.1. Enable VPN (tick box) Activate the VPN; now, the configurations of the SureStreamVPN option appear. 5.6.2. Compression (tick box) Recommendation: Keep compression off for the first setup. -
Page 41: Wan Interfaces
5.6.7. Advanced – Masquerading IP Masquerade can be left disabled where there is only one device attached to a Mobile SureStreamer VPN LAN interface, and the traffic will not be further routed at the server end of the tunnel. Save and Continue Save the settings for the server and test the function of the VPN tunnel. -
Page 42: Appendix A - Modem Apn
Quick Start Tutorial: APT Mobile SureStreamer APPENDIX A - Modem APN A1.0 Configuration of Modem APN for an Unrecognized Network When switching networks, the modem usually re-configures automatically. This proce- dure describes how to re-configure the modem manually if it does not. - Page 43 Quick Start Tutorial: APT Mobile SureStreamer It may take a few minutes and sometimes a reboot before the Internet will show as connected. Once successful the below screen will appear When successfully re-configured, the Modem Power Status LED should again dis- play solid green.
-
Page 44: Appendix B - Smartphone Audio Devices
4.2 in this tutorial. B1.1.1 Chose a Connection Template Select the "Bi-directional Dialer" template (#100) suitable for the Mobile SureStreamer in the field and click on Profiles/Save as… to create a copy of it. -
Page 45: B1.1.2 Edit The Template
Quick Start Tutorial: APT Mobile SureStreamer B1.1.2 Edit the Template Open the "Belfast Test" profile and start editing the LAN stream to/from the Codec or media streamer (stream #0). Double-clicking on the stream opens the Stream Configu- ration (refer to the principle in section 4.3.2) B1.1.3 Edit the LAN Stream... -
Page 46: B1.1.4 Edit The Wan Streams
Nothing else happens at this point. Only when the LUCI app on the iPhone sends data via the LAN stream to the SureStreamer, the WAN streams are set up in the network. Click on "Apply" to save and apply the new profile. It then appears under the head- ing "Current Profile."... -
Page 47: B1.2 Connect An Iphone To The Mobile Surestreamer
The figure shows the application. Use a commercially available adapter that allows you to connect your iPhone to the wired Ethernet of the SureStreamer. The figure shows an example, but there are also other adapters that provide a USB port for connecting a digital audio unit to the iPhone (USB microphones, etc.). -
Page 48: B2.1 Iphone Wired Network Settings
B2.1 iPhone wired Network Settings Connect the lightning connector of the iPhone to the RJ45 adapter and switch on the battery of the Mobile SureStreamer. The iPhone recognizes the adapter and displays a corresponding entry in the iPhone settings (Ethernet). - Page 49 Quick Start Tutorial: APT Mobile SureStreamer You reach the list of stations. If you have not yet used the App, you will only find the default entry of the manufacturer here. Tap on the plus symbol at the bottom right. This cre- ates a new list entry.
- Page 50 Quick Start Tutorial: APT Mobile SureStreamer The "Station" APT Belfast is checked. Tap on the home screen icon to return to the home page. Tap the central microphone icon. The connection to the Mobile SureStreamer is estab- lished (LAN). The active LAN stream initial- izes the four WAN streams, and the test signal is received.
-
Page 51: B2.2 Connect An Android Phone To The Mobile Surestreamer
USB port of your Smartphone and a network cable to the RJ45 port in the front pocket of the Mobile SureStreamer. The adapter is powered exclusively by the Smartphone's battery, which reduces the usual operating time (depending on the device). -
Page 52: B2.3 The Luci Live App For Android
Quick Start Tutorial: APT Mobile SureStreamer B2.3 The LUCI Live APP for Android The LUCI Live Reporter app must be downloaded from the Google Play Store. After it has been installed on your Smartphone, it can be used immediately in demo mode. The demo mode interrupts the audio stream for one second every 20 seconds. -
Page 53: B2.3.1 Configure The Lan Stream On The Luci App
Quick Start Tutorial: APT Mobile SureStreamer B2.3.1 Configure the LAN Stream on the LUCI APP Open the LUCI app on your phone. The last stream used appears; this is called the station. Tap the setup icon, as shown to reach the station list. - Page 54 Quick Start Tutorial: APT Mobile SureStreamer You reach the list of stations. If you have not yet used the App, you will only find the default entry of the manufacturer here. Tap on the plus symbol at the top left.
-
Page 55: B2.3.2 Connect To The Belfast Test Link
Quick Start Tutorial: APT Mobile SureStreamer B2.3.2 Connect to the Belfast Test Link Tap the microphone icon to ena- ble the microphone. Tab on the small connection button (the an- tenna icon) to start streaming from the microphone. The active LAN stream from the...
