Quick Start Tutorial: APT Mobile SureStreamer

2.0 System Wiring and Modem Preparation

2.1. Mobile SureStreamer Wiring (for information only)

The Mobile SureStreamer consists of several components that are pre-wired as follows.
The diagram below may help you if you need to replace components or change the
standard wiring.

Usually, you do not need to change the cabling.

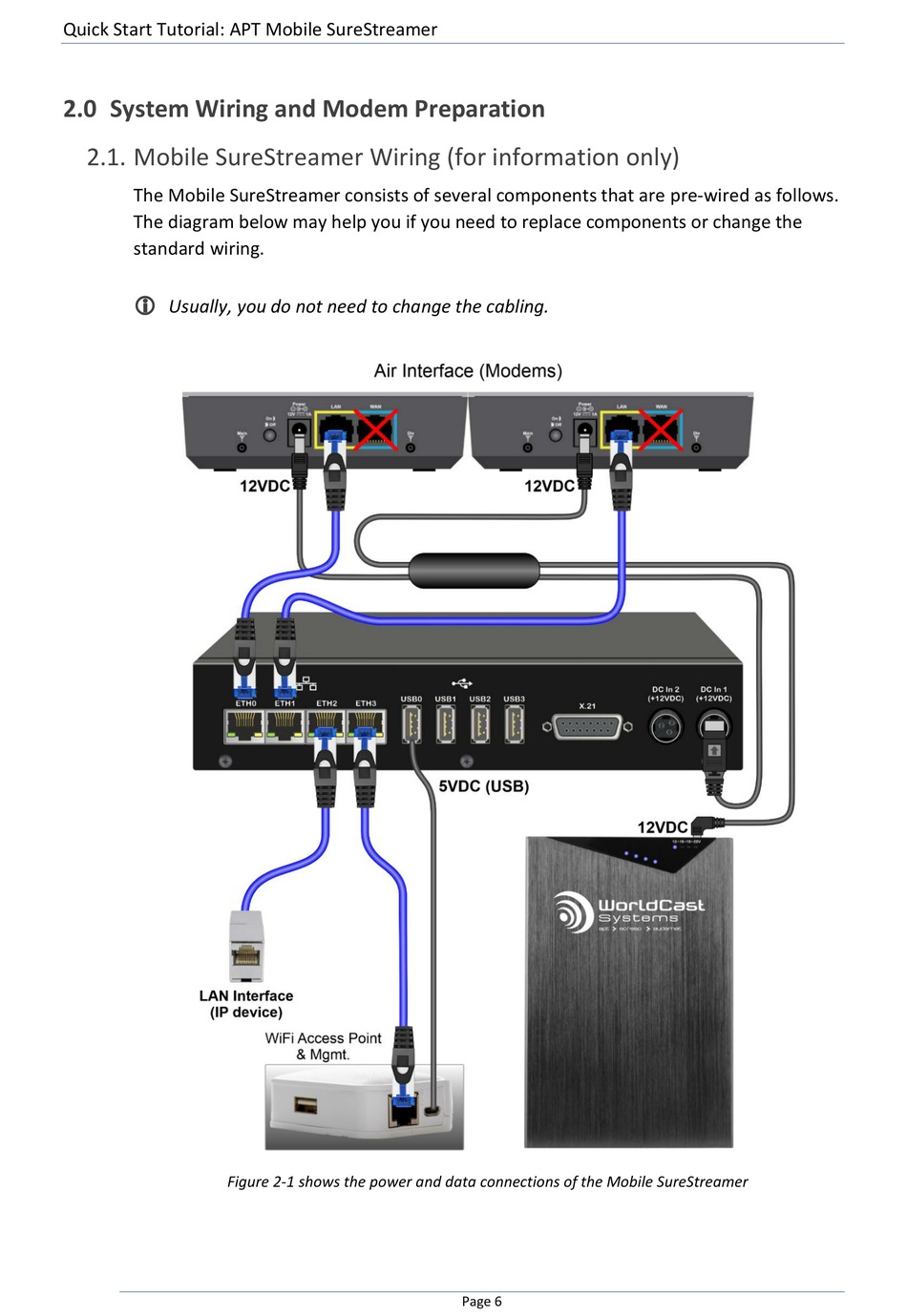

Figure 2-1 shows the power and data connections of the Mobile SureStreamer
