Quick Start Tutorial: APT Mobile SureStreamer

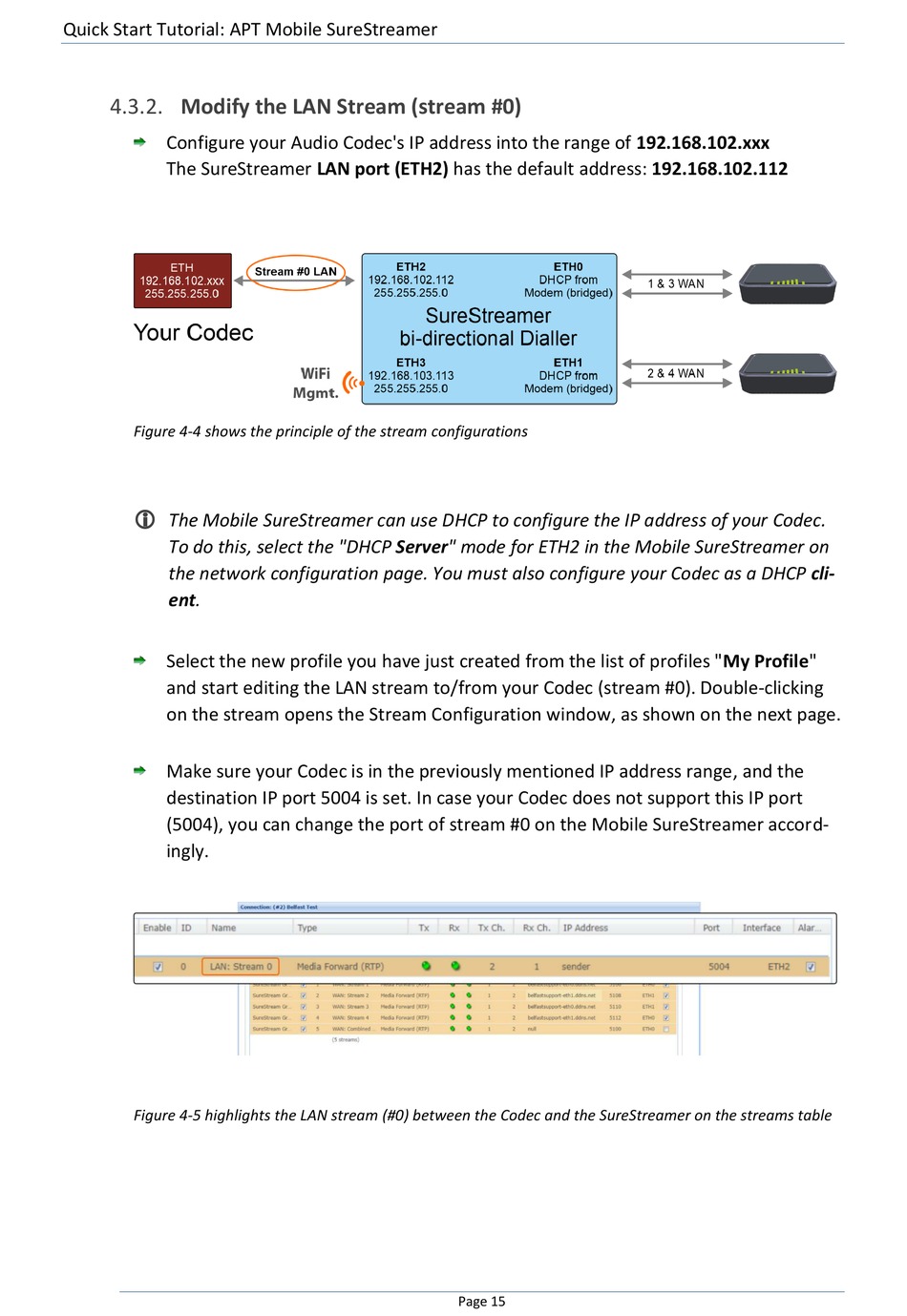

4.3.2. Modify the LAN Stream (stream #0)

Configure your Audio Codec's IP address into the range of 192.168.102.xxx
The SureStreamer LAN port (ETH2) has the default address: 192.168.102.112
Figure 4-4 shows the principle of the stream configurations

The Mobile SureStreamer can use DHCP to configure the IP address of your Codec.
To do this, select the "DHCP Server" mode for ETH2 in the Mobile SureStreamer on
the network configuration page. You must also configure your Codec as a DHCP cli-
ent.
Select the new profile you have just created from the list of profiles "My Profile"
and start editing the LAN stream to/from your Codec (stream #0). Double-clicking
on the stream opens the Stream Configuration window, as shown on the next page.
Make sure your Codec is in the previously mentioned IP address range, and the
destination IP port 5004 is set. In case your Codec does not support this IP port
(5004), you can change the port of stream #0 on the Mobile SureStreamer accord-
ingly.
Figure 4-5 highlights the LAN stream (#0) between the Codec and the SureStreamer on the streams table
Page 15
