Quick Start Tutorial: APT Mobile SureStreamer

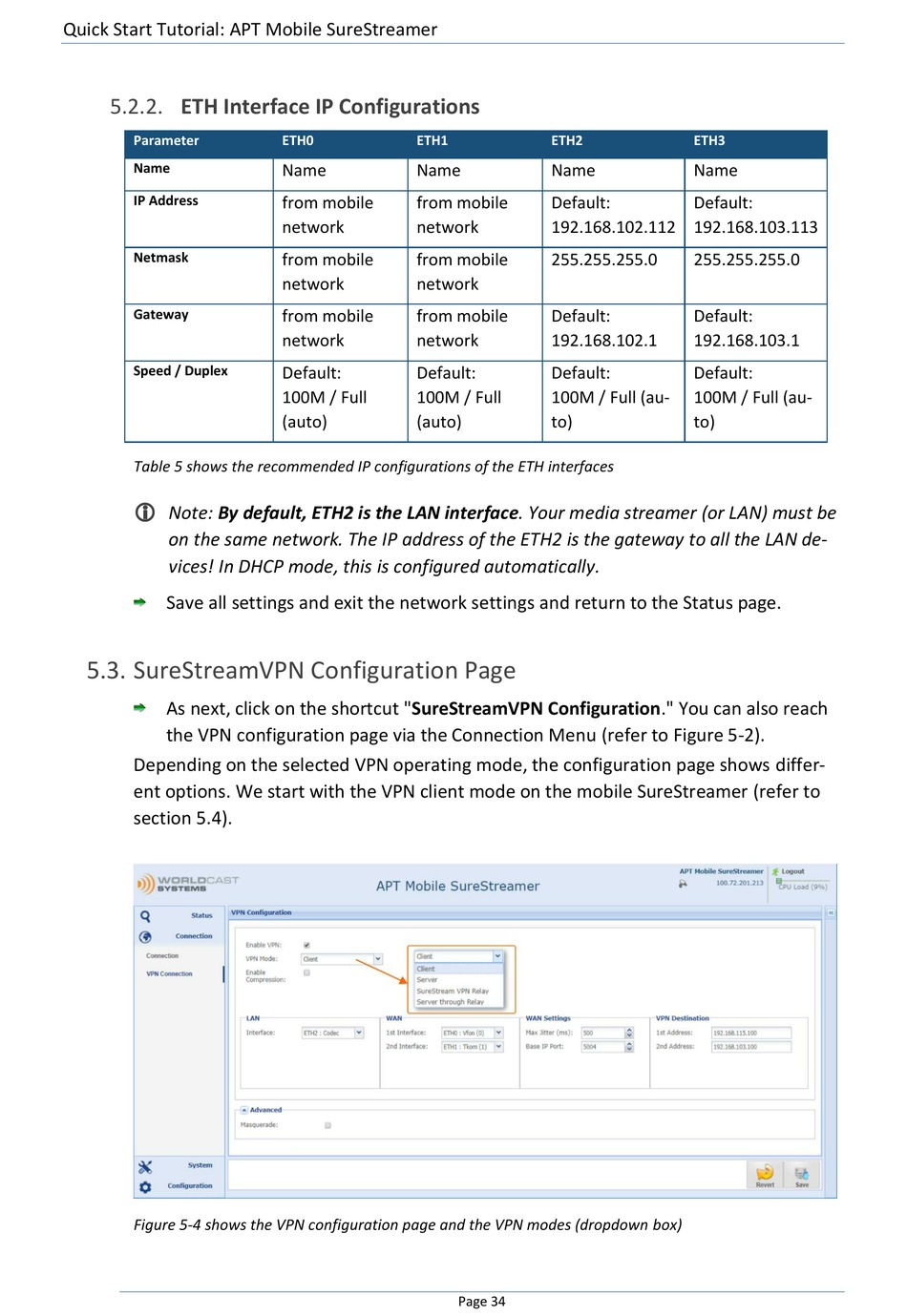

5.2.2. ETH Interface IP Configurations

Parameter
Name
IP Address
Netmask
Gateway
Speed / Duplex
Table 5 shows the recommended IP configurations of the ETH interfaces

Note: By default, ETH2 is the LAN interface. Your media streamer (or LAN) must be
on the same network. The IP address of the ETH2 is the gateway to all the LAN de-
vices! In DHCP mode, this is configured automatically.
Save all settings and exit the network settings and return to the Status page.

5.3. SureStreamVPN Configuration Page

As next, click on the shortcut "SureStreamVPN Configuration." You can also reach
the VPN configuration page via the Connection Menu (refer to Figure 5-2).
Depending on the selected VPN operating mode, the configuration page shows differ-
ent options. We start with the VPN client mode on the mobile SureStreamer (refer to
section 5.4).
Figure 5-4 shows the VPN configuration page and the VPN modes (dropdown box)
ETH0 ETH1
Name Name
from mobile from mobile
network network
from mobile from mobile
network network
from mobile from mobile
network network
Default: Default:
100M / Full 100M / Full
(auto) (auto)
ETH2
Name
Default:
192.168.102.112
255.255.255.0
Default:
192.168.102.1
Default:
100M / Full (au-
to)
Page 34
ETH3
Name
Default:
192.168.103.113
255.255.255.0
Default:
192.168.103.1
Default:
100M / Full (au-
to)
