2.2.2. The Battery

Before connecting the battery, check the battery's charge state by pressing the
power button. Four LEDs indicate the state (100%, 75%, 50%, 25%).
Important: The battery can deliver different output voltages.
Make sure the voltage selector LED displays 12VDC!
Changing the supply Voltage
Press and hold the power button for more than one second until the voltage indicator
LEDs flash. Another short touch of the power button changes the voltage. When 12VDC
is reached, stop switching and release the button. After approx. three seconds, the
voltage selection is displayed statically.
Connecting the Battery
When the battery is sufficiently charged, and the voltage selection LED shows 12VDC,
connect the Mobile SureStreamer to the battery. Inside the battery box is the connec-
tion cable that you connect to the output socket of the battery (blue arrow on image).
The two sockets for the round plug have the same size. One is to connect the charger,
and the other is the power output. Due to the arrangement of the cables, a mix-up is
unlikely. Should there be an accidental mix-up, there will be no damage. Both round
sockets are electrically protected against damage.
The two USB ports can be used for charging a phone or other accessories.

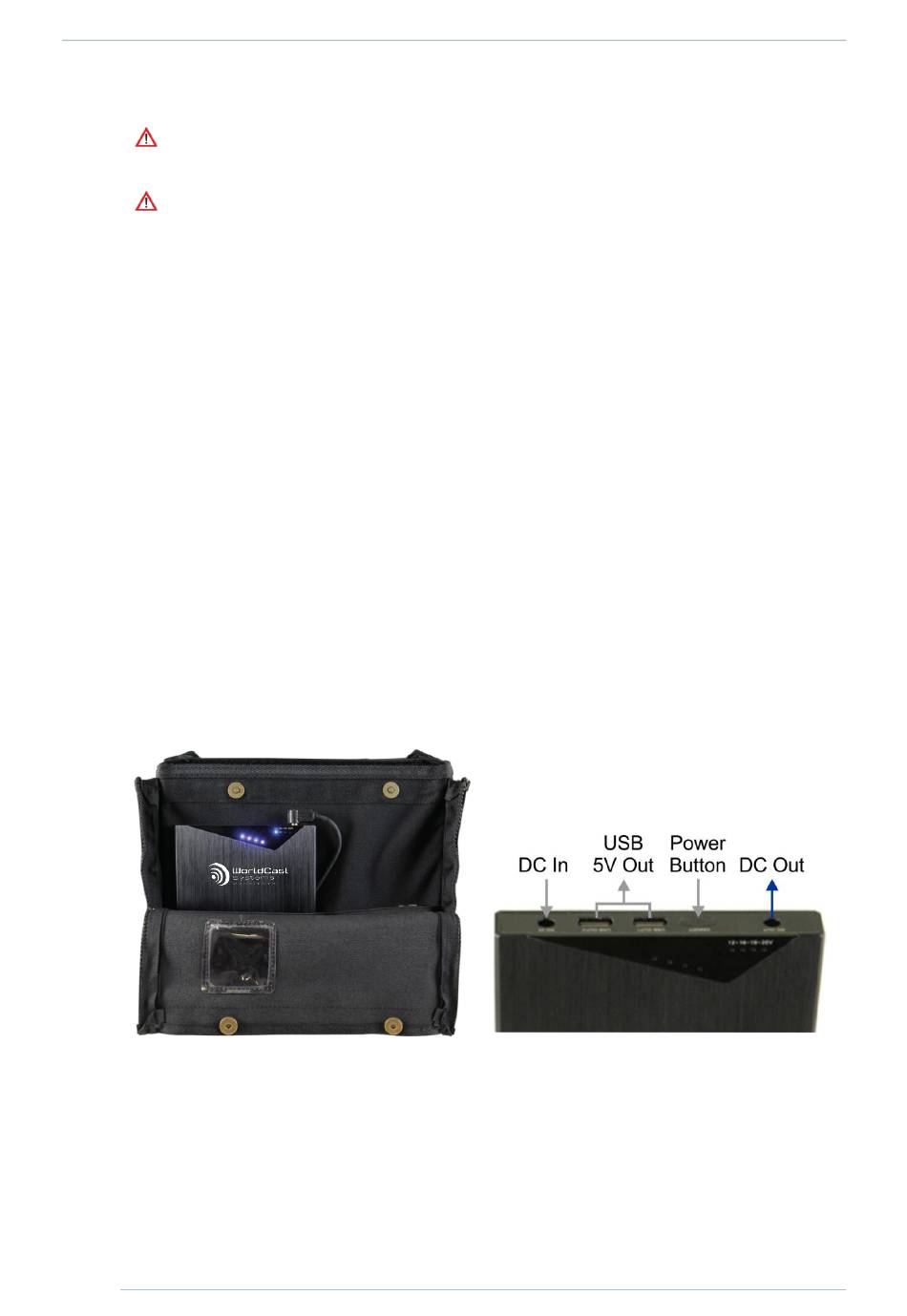

Figure 2-4 the battery pack in the bag and zoom on the connectors
