Quick Start Tutorial: APT Mobile SureStreamer

4.0 Configure SureStream for IP Audio Codecs

4.1. Connecting your IP Codec

In the front pocket of the bag, there is an RJ45 adapter that allows you to connect your
Codec to the ETH2 interface of the Mobile SureStreamer.
This is the LAN port of the Mobile SureStreamer.
Connect your IP Codec to it.

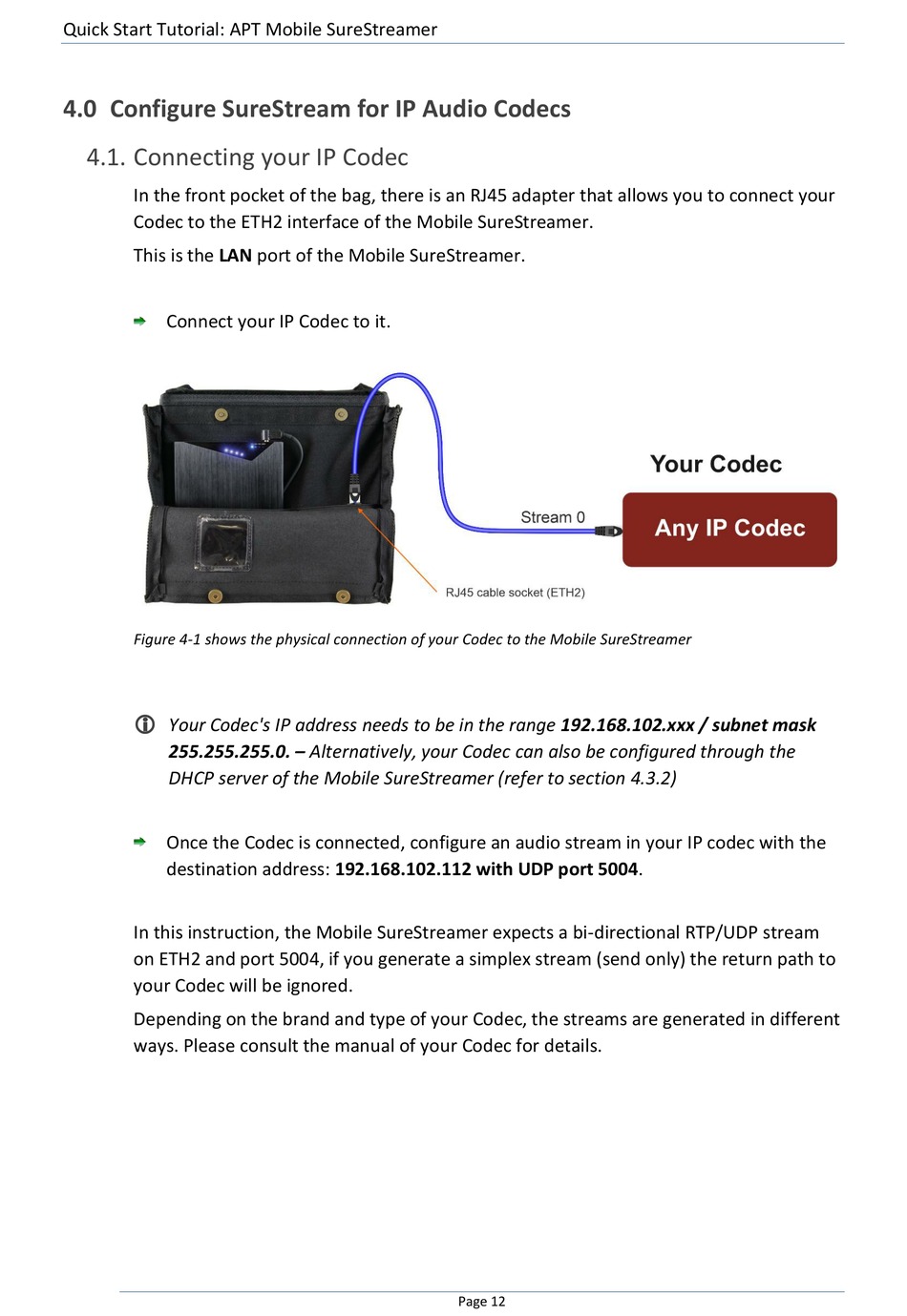

Figure 4-1 shows the physical connection of your Codec to the Mobile SureStreamer

Your Codec's IP address needs to be in the range 192.168.102.xxx / subnet mask
255.255.255.0. – Alternatively, your Codec can also be configured through the
DHCP server of the Mobile SureStreamer (refer to section 4.3.2)
Once the Codec is connected, configure an audio stream in your IP codec with the
destination address: 192.168.102.112 with UDP port 5004.
In this instruction, the Mobile SureStreamer expects a bi-directional RTP/UDP stream
on ETH2 and port 5004, if you generate a simplex stream (send only) the return path to
your Codec will be ignored.
Depending on the brand and type of your Codec, the streams are generated in different
ways. Please consult the manual of your Codec for details.
Page 12
