Quick Start Tutorial: APT Mobile SureStreamer

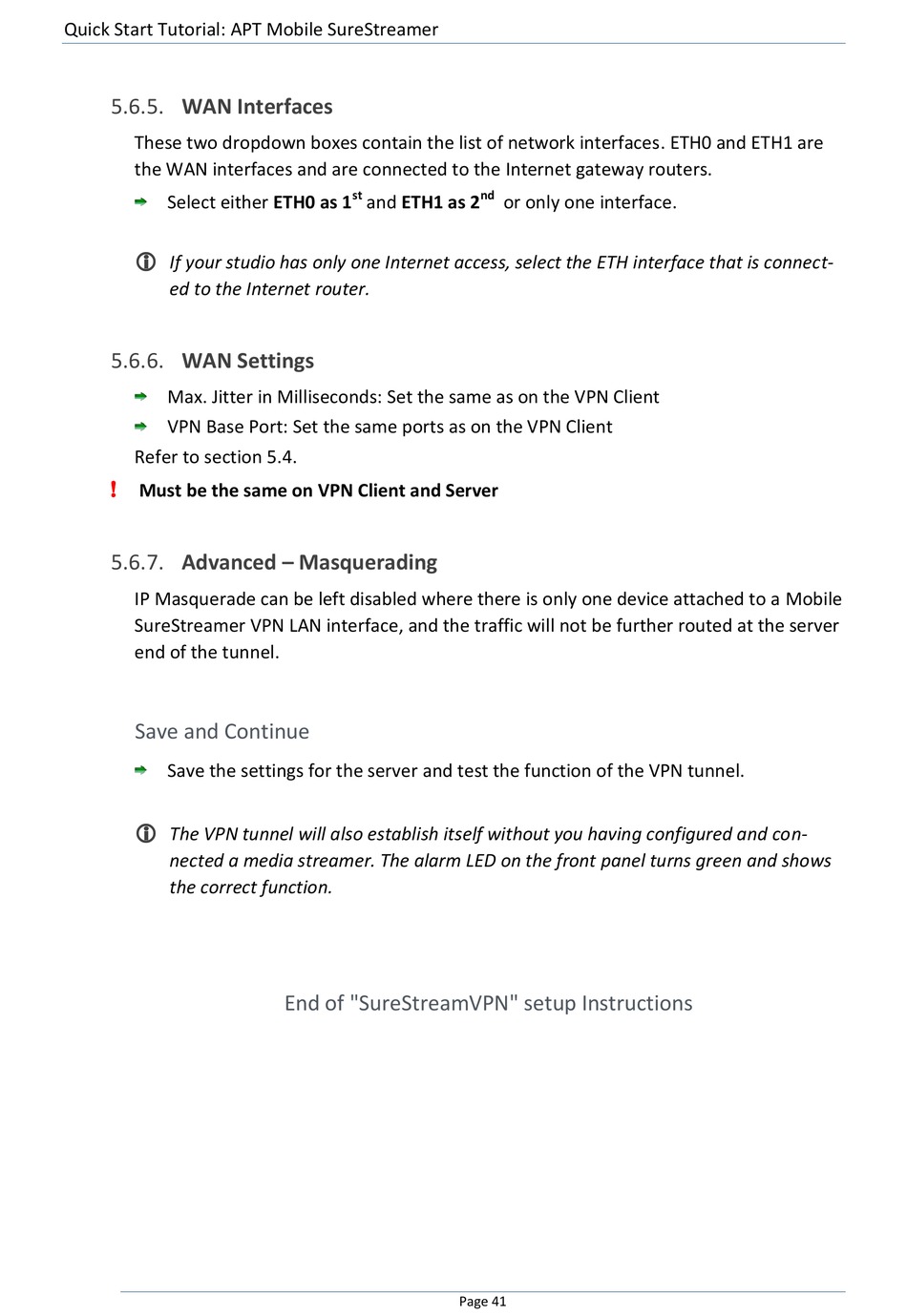

5.6.5. WAN Interfaces

These two dropdown boxes contain the list of network interfaces. ETH0 and ETH1 are
the WAN interfaces and are connected to the Internet gateway routers.
Select either ETH0 as 1

If your studio has only one Internet access, select the ETH interface that is connect-
ed to the Internet router.

5.6.6. WAN Settings

Max. Jitter in Milliseconds: Set the same as on the VPN Client
VPN Base Port: Set the same ports as on the VPN Client
Refer to section 5.4.
!
Must be the same on VPN Client and Server
5.6.7. Advanced – Masquerading
IP Masquerade can be left disabled where there is only one device attached to a Mobile
SureStreamer VPN LAN interface, and the traffic will not be further routed at the server
end of the tunnel.
Save and Continue
Save the settings for the server and test the function of the VPN tunnel.

The VPN tunnel will also establish itself without you having configured and con-
nected a media streamer. The alarm LED on the front panel turns green and shows
the correct function.
st
and ETH1 as 2
End of "SureStreamVPN" setup Instructions
nd
or only one interface.
Page 41
