Scan Software: Handy Scan

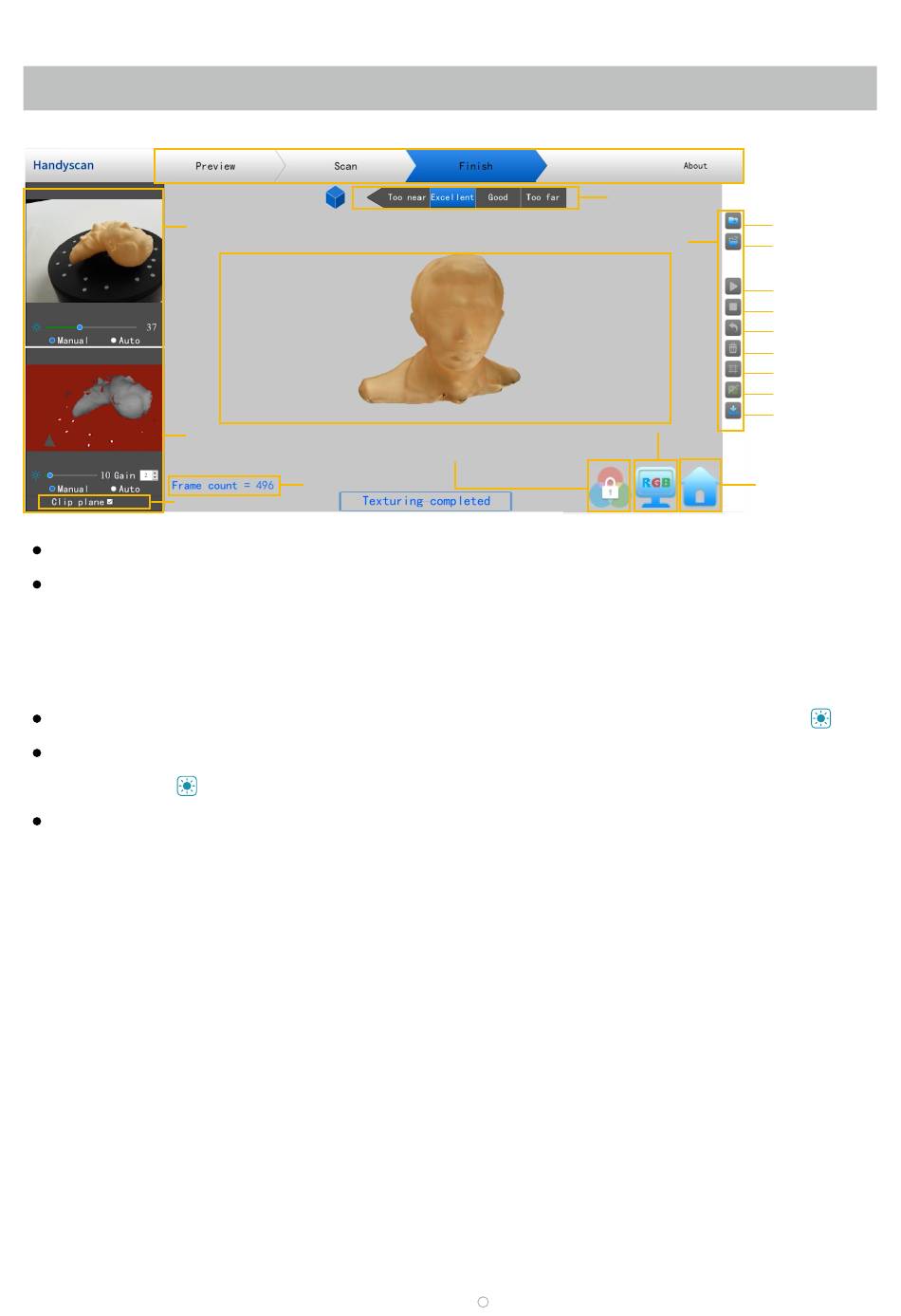

User Interface

�. Top navigation bar: include Status (Preview-Scan-Finish) and About buttons;
�. Scanning distance prompt: show Scanning distance: Too near, Excellent, Good, Too Far.
When the scanning distance is in the Excellent zone, the result is appropriate, when it is too
close or too far, red color will be displayed. Adjust to the optimal scanning distance accord-
ing to the color prompt;
�. RGB Image Display: display RGB preview, the exposure value could judge by the
�. Depth Image Display: display Depth Image, which also contribute to the �D pointcloud,
The exposure
�. Function buttons: New, Open, Start/Pause, Stop/Complete, Undo, Delete, Mesh, Texture,
Export;
New : start to build a new project;
Open: open a scanned project;
Start/Pause: start or stop scanning;
Stop/Complete: complete a scanning operation;
Undo: cancel the latest several scanned frames of a model and revert to the previous state;
Delete: delete the scanned model;
Mesh: line the scanned �D point cloud image into a plane or triangular mesh. The "No Color" model only
consists of point cloud and mesh information, and the "Color" model also contains the color information of each
point.
Texture: match pixels of the picture on the mesh model to improve resolution of the texture and the color.
Export : export the �D model
RGB Image Display
Depth Image Display
��
Frame count
Clip plane
and Gain could be adjusted by manual and auto.
Function buttons
�D model preview window
��
Point Cloud RGB Preview
